產品型號
|
JFTSM-OSFP-800(1x100G）-PSM4-05-(DR8)-MPO16/2MPO8/12
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
OSFP
|
光口類型
|
Dual MTP-12 APC
|
|
最高總速率
|
800Gbps
|
每通道速率
|
106.25 Gb/s
|
|
最大傳輸距離
|
500m
|
|
|
|
工作波長
|
1310nm
|
工作電壓
|
3.3V
|
|
光纖型號
|
SMF
|
纖芯尺寸
|
9/125
|
|
發射器類型
|
EML
|
接收器類型
|
PIN
|
|
發射功率
|
-2.9~4.0dBm
|
接收靈敏度
|
-5.9dBm
|
|
數字診斷(DOM)
|
YES
|
接收過載
|
4dBm
|
|
功耗
|
<16.5W
|
支持協議
|
800G Ethernet
2x400G Ethernet
IB NDR
|
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
JFOPT嘉(jia)富(fu)持續投入(ru)光(guang)模(mo)塊生產(chan)領(ling)域，產(chan)品覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光(guang)模(mo)塊。同時為下(xia)游(you)同行(xing)提供(gong)TOSA、ROSA、BOSA等光(guang)器件(jian)半成品解(jie)決(jue)方(fang)案。JFOPT嘉(jia)富(fu)生產(chan)線具(ju)備(bei)日產(chan)量一萬只光(guang)模(mo)塊、兩萬只光(guang)器件(jian)的能力(li)。此(ci)外，JFOPT嘉(jia)富(fu)光(guang)模(mo)塊擁有(you)業界領(ling)先的耐高溫、抗干擾特性，廣泛(fan)應用(yong)于計算中心、運(yun)營(ying)商(shang)、交通安防、電力(li)設施等行(xing)業領(ling)域。
JFOPT OSFP 800G PSM4 500m DR8 2MPO8/12光(guang)(guang)模塊(kuai)是一(yi)款先進的(de)8通(tong)道可(ke)插拔光(guang)(guang)纖(xian)模塊(kuai)，專為(wei)800Gbps以太網高速應用(yong)設計(ji)。該(gai)高性能(neng)收發器是數據(ju)通(tong)信(xin)和互(hu)連(lian)解決方(fang)案的(de)理想選擇(ze)，支(zhi)持單模光(guang)(guang)纖(xian)上每(mei)條通(tong)道高達(da)106.25Gbps的(de)數據(ju)傳(chuan)輸速率，最(zui)遠傳(chuan)輸距離達(da)500米，其光(guang)(guang)接(jie)(jie)口(kou)采(cai)用(yong)雙MPO-12 APC連(lian)接(jie)(jie)器實現高效連(lian)接(jie)(jie)。該(gai)模塊(kuai)針對單模光(guang)(guang)纖(xian)系(xi)統優(you)化設計(ji)，工(gong)作波長為(wei)850nm，電氣接(jie)(jie)口(kou)采(cai)用(yong)60針邊緣(yuan)型連(lian)接(jie)(jie)器確保(bao)穩(wen)定可(ke)靠的(de)性能(neng)，是為(wei)滿足下一(yi)代數據(ju)通(tong)信(xin)高速網絡需求而設計(ji)的(de)尖(jian)端解決方(fang)案。
| Hot-pluggable OSFP form factor | Silicon photonics integrated solution | ||||||||
| Data rate 106.25Gb/s PAM4 per lane | 8x106Gbps PAM4 transmitter and PAM4 receiver | ||||||||
| Maximum link length of500m on single mode fiber | Digital diagnostics functions are available via the I2C interface | ||||||||
| Single 3.3V power supply and power dissipation<16.5W | Dual MTP-12 APC connector | ||||||||
| Operating case temperature:0℃~+70℃ |
| 800G ethernet | 2x400G ethernet | |||||||
| IB NDR | ||||||||
| Parameter | Symbol | Min. | Max. | Unit | |||||
| Power supply voltage | VCC | -0.5 | +3.6 | V | |||||
| Storage temperature | TC | -40 | +85 | ℃ | |||||
| Relative humidity | RH | 5 | 85 | % | |||||
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
| Parameter | Symbol | Min | Typical | Max | Unit | ||||
| Power supply voltage | VCC | 3.15 | 3.30 | 3.45 | V | ||||
| Operating case temperature | Tca | 0 | - | 70 | ℃ | ||||
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
| Data rate per lane | DR | - | 106.25 | - | Gbps | - | |||
Transmitter |
|||||||||
| Common mode voltage tolerance | - | 15 | - | - | mV | - | |||
| Input differential impedance | Rin | - | 100 | - | Ω | - | |||
| Differential input voltage swing | Vin | 300 | - | 900 | mV | - | |||
| Tx fault | VoL | -0.3 | - | 0.4 | V | At 0.7mA | |||
Receiver |
|||||||||
| Differential output swing | Vout | 300 | - | 900 | mV | - | |||
| Output differential impedance | Rout | - | 100 | - | Ω | - | |||
The following electrical characteristics are defined over the recommended operating environment unless otherwise specified.
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Transmitter |
|||||||||
| Center wavelength | λ | 1304.5 | 1310 | 1317.5 | nm | - | |||
| Side-mode suppression ratio | SMSR | 30 | - | - | dB | - | |||
| Average optical power | Po | -2.9 | - | 4 | dBm | 1 | |||
| Extinction ratio | ER | 3.5 | - | - | dBm | - | |||
| Outer optical modulation amplitude (OMAouter),each lane | OMA | -0.8 | - | 4.2 | dB | - | |||
| Transmitter and dispersion eye closure | TDECQ | - | - | 3.4 | dB | - | |||
| Optical return loss tolerance | ORL | - | - | 21.4 | dB | - | |||
Receiver |
|||||||||
| Center wavelength | λ | 1304.5 | 1310 | 1317.5 | nm |  - |
|||
| Average receive power,each lane | - | -5.9 | - | 4 | dBm | - | |||
| Receive power(OMAouter),each lane | - | - | - | 4.2 | dBm | - | |||
| Note: [1]Theoptical power is launched into SMF. [2]BER=2.4E-4;PRBS31Q@106.25GBd. |
|||||||||
The following optical characteristics are defined over the recommended operating environment unless otherwise specified.

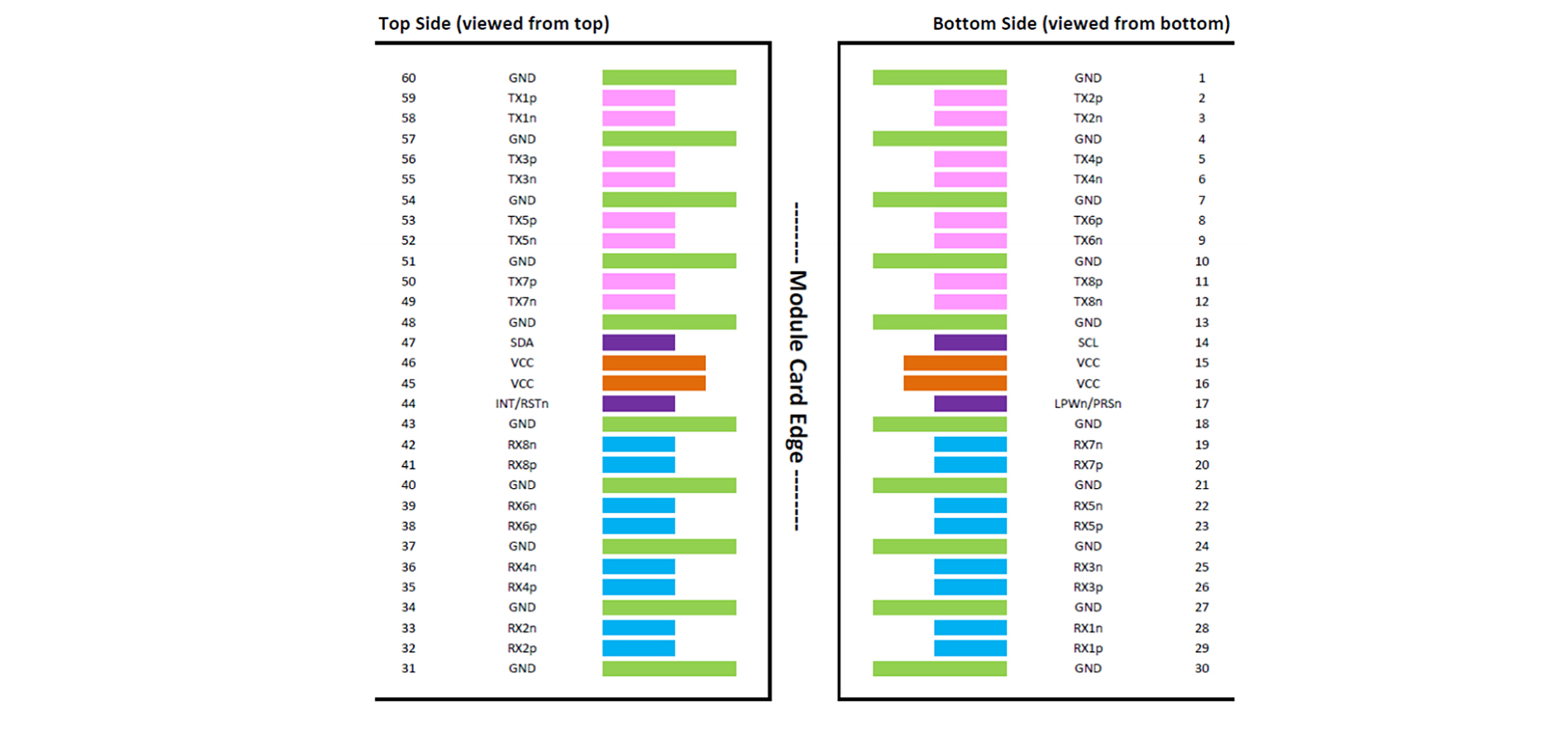

| Pin | Symbol | Name/Description | |||||||
| 1 | GND | Ground | |||||||
| 2 | TX2p | Transmitter data non-inverted | |||||||
| 3 | TX2n | Transmitter data inverted | |||||||
| 4 | GND | Ground | |||||||
| 5 | Tx4p | Transmitter data non-inverted | |||||||
| 6 | TX4n | Transmitter data inverted | |||||||
| 7 | GND | Ground | |||||||
| 8 | TX6p | Transmitter data non-inverted | |||||||
| 9 | TX6n | Transmitter data inverted | |||||||
| 10 | GND | Ground | |||||||
| 11 | TX8p | Transmitter data non-inverted | |||||||
| 12 | TX8n | Transmitter data inverted | |||||||
| 13 | GND | Ground | |||||||
| 14 | SCL | 2-wire Serial interface clock | |||||||
| 15 | VCC | +3.3V Power | |||||||
| 16 | VCC | +3.3V Power | |||||||
| 17 | LPWn/PRSn | Low-power mode/module present | |||||||
| 18 | GND | Ground | |||||||
| 19 | RX7n | Receiver data inverted | |||||||
| 20 | RX7p | Receiver data non-inverted | |||||||
| 21 | GND | Ground | |||||||
| 22 | RX5n | Receiver data inverted | |||||||
| 23 | RX5p | Receiver data non-inverted | |||||||
| 24 | GND | Ground | |||||||
| 25 | RX3n | Receiver data inverted | |||||||
| 26 | RX3p | Receiver data non-inverted | |||||||
| 27 | GND | Ground | |||||||
| 28 | RX1n | Receiver data inverted | |||||||
| 29 | RX1p | Receiver data non-inverted | |||||||
| 30 | GND | Ground | |||||||
| 31 | GND | Ground | |||||||
| 32 | RX2p | Receiver data non-inverted | |||||||
| 33 | RX2n | Receiver data inverted | |||||||
| 34 | GND | Ground | |||||||
| 35 | RX4p | Receiver data non-inverted | |||||||
| 36 | RX4n | Receiver data inverted | |||||||
| 37 | GND | Ground | |||||||
| 38 | RX6p | Receiver data non-inverted | |||||||
| 39 | RX6n | Receiver data inverted | |||||||
| 40 | GND | Ground | |||||||
| 41 | RX8p | Receiver data non-inverted | |||||||
| 42 | RX8n | Receiver data inverted | |||||||
| 43 | GND | Ground | |||||||
| 44 | INT/RSTn | Module interrupt/module reset | |||||||
| 45 | VCC | +3.3V power | |||||||
| 46 | VCC | +3.3V power | |||||||
| 47 | SDA | 2-wire serial interface data | |||||||
| 48 | GND | Ground | |||||||
| 49 | TX7n | Transmitter data inverted | |||||||
| 50 | TX7p | Transmitter data non-inverted | |||||||
| 51 | GND | Ground | |||||||
| 52 | TX5n | Transmitter data inverted | |||||||
| 53 | TX5p | Transmitter data non-inverted | |||||||
| 54 | GND | Ground | |||||||
| 55 | TX3n | Transmitter dataInverted | |||||||
| 56 | TX3p | Transmitter data non-inverted | |||||||
| 57 | GND | Ground | |||||||
| 58 | TX1n | Transmitter data inverted | |||||||
| 59 | TX1p | Transmitter data non-inverted | |||||||
| 60 | GND | Ground | |||||||
