產品型號 | JFTSM-QSFPDD-400-85-01(SR8)-MPO16 | 工廠品牌 | JFOPT嘉富 |
封裝形式 | QSFPDD | 光口類型 | MPO 16C/24C |
最高總速率 | 400Gbps | 每通道速率 | 53.125Gbps |
OM3最大傳輸距離 | 70m | OM4最大傳輸距離 | 100m |
工作波長 | 850nm | 工作電壓 | 3.3V |
光纖型號 | MMF | 纖芯尺寸 | 50/125 |
發射器類型 | VCSEL | 接收器類型 | PIN |
發射功率 | -6.5~4.0dBm | 接收靈敏度 | -6.5dBm |
數字診斷(DOM) | YES | 接收過載 | 4dBm |
功耗 | <12W | 支持協議 | 400G BASE-SR8 ethernet |
工作溫度(商業級) | 0℃~+70℃ | 儲存溫度(商業級) | -40℃~+85℃ |
JFOPT嘉(jia)富持續投(tou)入(ru)光(guang)(guang)模塊(kuai)生(sheng)產(chan)領(ling)(ling)域,產(chan)品覆蓋(gai)1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全(quan)系(xi)列光(guang)(guang)模塊(kuai)。同(tong)時為下游同(tong)行(xing)(xing)提供TOSA、ROSA、BOSA等光(guang)(guang)器(qi)(qi)件(jian)半成品解(jie)決方案。JFOPT嘉(jia)富生(sheng)產(chan)線具(ju)備日(ri)產(chan)量一萬只光(guang)(guang)模塊(kuai)、兩萬只光(guang)(guang)器(qi)(qi)件(jian)的(de)能力。此外,JFOPT嘉(jia)富光(guang)(guang)模塊(kuai)擁有業(ye)(ye)界領(ling)(ling)先的(de)耐高溫、抗干擾特性,廣泛應用于計算中心、運營商、交通安防、電(dian)力設施等行(xing)(xing)業(ye)(ye)領(ling)(ling)域。

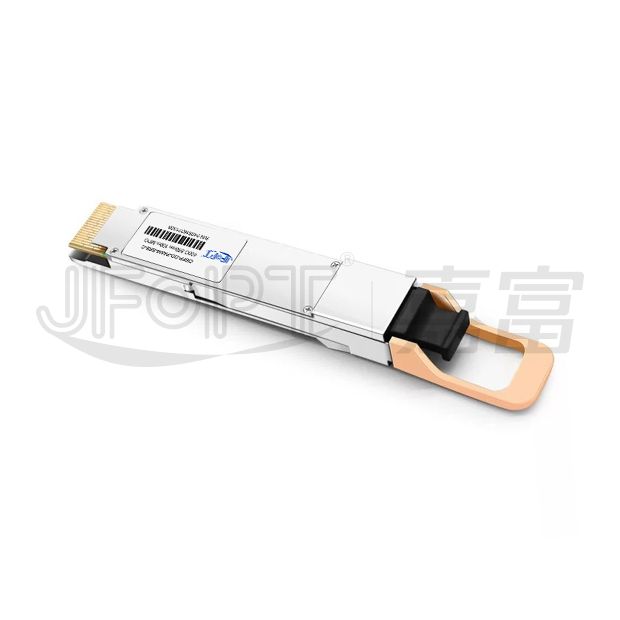

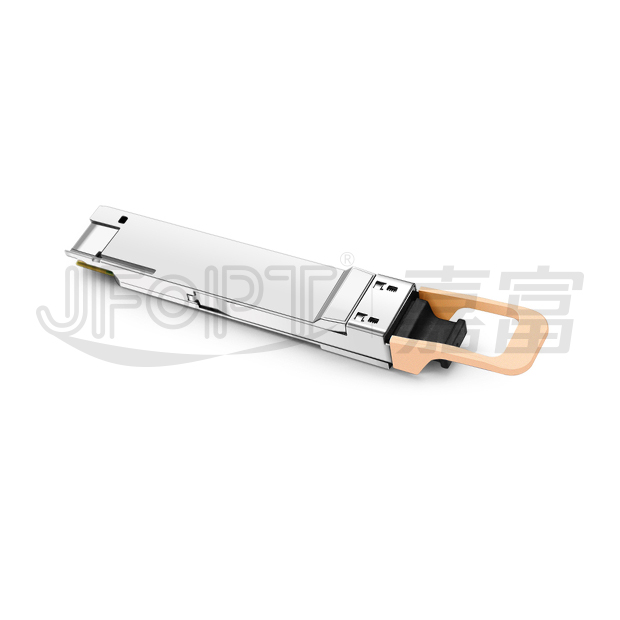

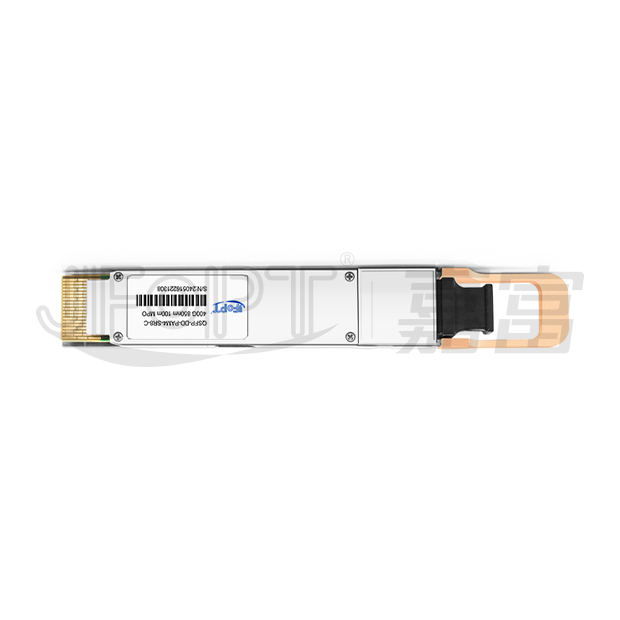

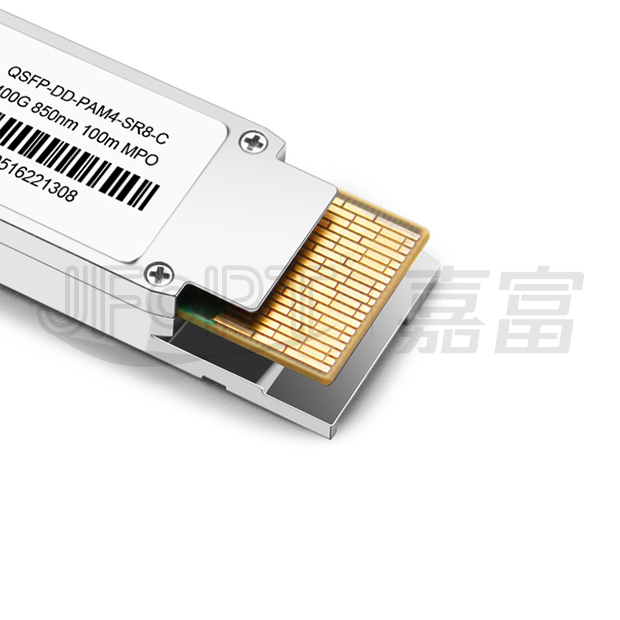

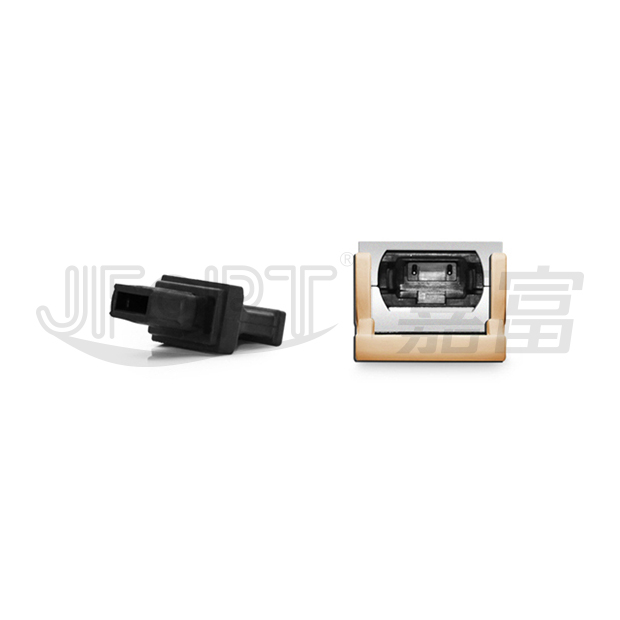

JFOPT QSFP-DD 400G 850nm SR8 MPO16 光(guang)(guang)(guang)模塊是一款八通道可插拔光(guang)(guang)(guang)纖模塊,專(zhuan)為400Gbps SR8應(ying)用(yong)(yong)設計。該高性(xing)能(neng)模塊適用(yong)(yong)于短距離數據通信與互連(lian),在(zai)(zai)OM3光(guang)(guang)(guang)纖上(shang)支(zhi)持(chi)70米(mi)傳(chuan)輸(shu)距離,在(zai)(zai)OM4光(guang)(guang)(guang)纖上(shang)可達100米(mi)傳(chuan)輸(shu)距離,每條通道工作速(su)率為53.125Gbps。其光(guang)(guang)(guang)學接(jie)(jie)口采用(yong)(yong)MPO連(lian)接(jie)(jie)器,設計用(yong)(yong)于850nm標稱波長的多模光(guang)(guang)(guang)纖系統,電氣接(jie)(jie)口則采用(yong)(yong)76針邊(bian)緣式連(lian)接(jie)(jie)器。
Hot-pluggable QSFP-DD form factor | Data rate 53.125 Gb/s PAM4 per lane | ||||||||
8x53Gbps PAM4 transmitter and PAM4 receiver | 8 channels 850nm VCSEL laserarray and 8 channels PIN photo-detector array | ||||||||
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF | Digital diagnostics functions are available via the I2C interface | ||||||||
Single 3.3V power supply and power dissipation<12W | MPO-24 connector | ||||||||
Operating case temperature:0℃~+70℃ |
400G BASE-SR8 ethernet |
Parameter | Symbol | Min. | Max. | Unit | |||||
Power supply voltage | VCC | -0.5 | +3.6 | V | |||||
Storage temperature | TC | -40 | +85 | ℃ | |||||
Relative humidity | RH | 5 | 85 | % |
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
Parameter | Symbol | Min | Typical | Max | Unit | ||||
Power supply voltage | VCC | 3.15 | 3.30 | 3.45 | V | ||||
Operating case temperature | Tca | 0 | - | 70 | ℃ |
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Data rateper lane | DR | - | 53.125 | - | Gbps | - | |||
Transmitter |
|||||||||
Single ended output voltage tolerance | - | -0.3 | - | 4.0 | V | - | |||
Common mode voltage tolerance | - | 15 | - | - | mV | - | |||
Input differential impedance | Rin | - | 100 | - | Ω | - | |||
Differential input voltage swing | Vin | 300 | - | 1100 | mV | - | |||
Tx fault | VoL | -0.3 | - | 0.4 | V | At0.7mA | |||
Receiver |
|||||||||
Single ended output voltage tolerance | - | -0.3 | - | 4.0 | V | - | |||
Differential output swing | Vout | 300 | - | 900 | mV | - | |||
Output differential impedance | Rout | - | 100 | - | Ω | - |
The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Transmitter |
|||||||||
Center wavelength | λ | 820 | 850 | 880 | nm | - | |||
RMS spectralwidth | Pm | - | - | 0.6 | nm | 1 | |||
Average optical power | Po | -6.5 | - | 4 | dBm | 2 | |||
Extinction ratio | ER | 3.0 | - | - | dBm | - | |||
Optical modulation amplitude | OMA | -4.5 | - | 3 | dB | - | |||
Transmitter and dispersion eye closure | TDECQ | - | - | 4.5 | dB | - | |||
Optical return loss tolerance | ORL | - | - | 12 | dB | - | |||
Receiver |
|||||||||
Center wavelength | λ | 820 | - | 880 | nm | - | |||
Average receive power,each lane | - | -8.4 | - | 4 | dBm | - | |||
Receive power(OMAouter),each lane | - | - | - | 3 | dBm | - | |||
Receiver sensitivity(OMAouter) | Psens | - | ![]() |
-6.5 | dBm | 3 | |||
LOS asserted | Lsa | -30 | - | - | dBm | - | |||
LOS de-asserted | Lda | - | - | ![]() |
dBm | - | |||
LOS hysteresis | Lh | 0.5 | - | - | dB | - | |||
Note: [1]Trade-offs are available between spectral width,center wavelength and minimum OMA. [2]The optical power is launched into MMF [3]BER=2.4E-4;PRBS31Q@26.5625GBd. |
The following optical characteristics are defined over the recommended operating environment unless otherwise specified.

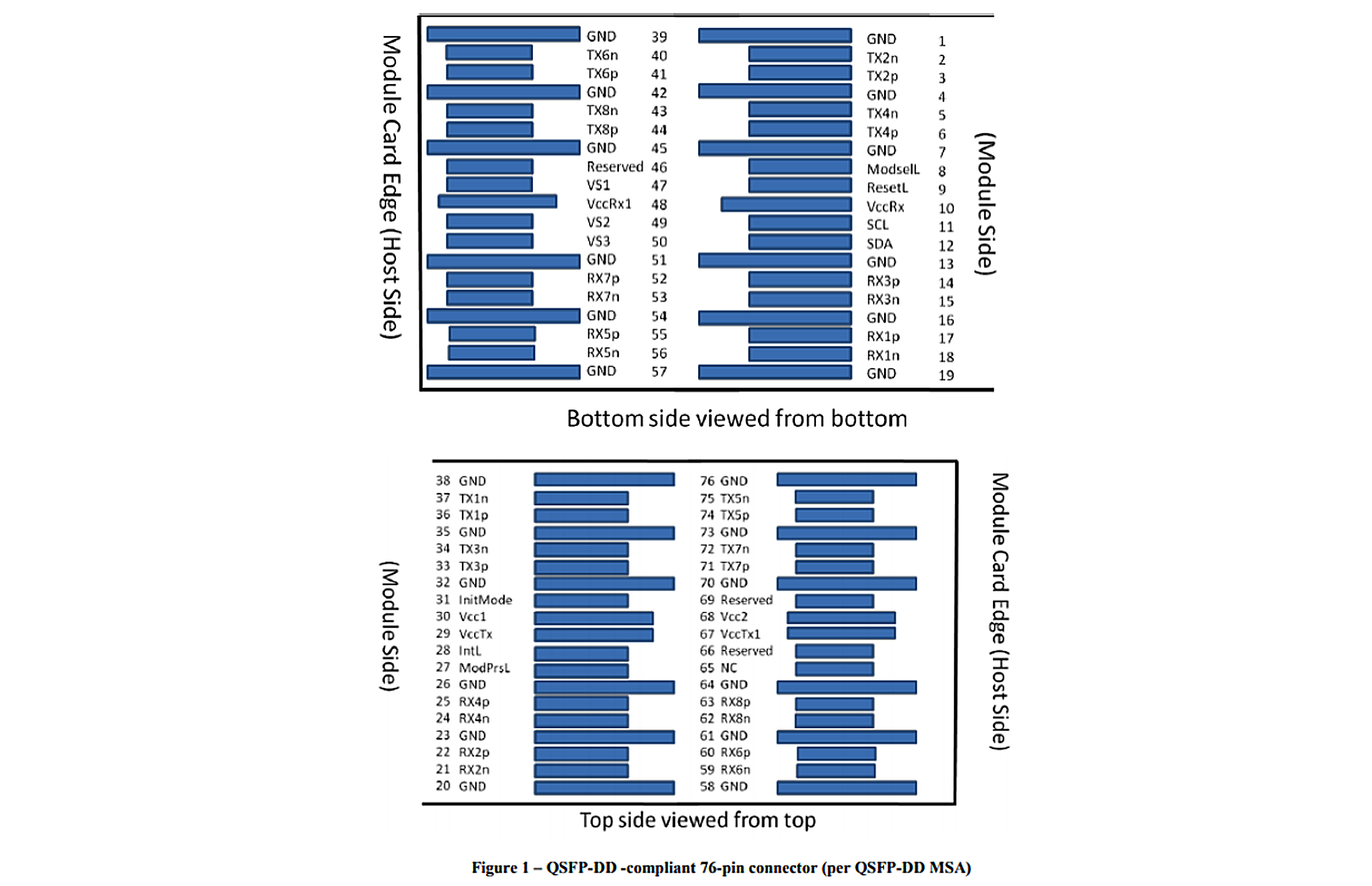

Pin | Symbol | Name/Description | |||||||
1 | GND | Ground | |||||||
2 | Tx2n | Transmitter inverted data input | |||||||
3 | Tx2p | Transmitter non-inverted data input | |||||||
4 | GND | Ground | |||||||
5 | Tx4n | Transmitter inverted data input | |||||||
6 | Tx4p | Transmitter non-inverted data input | |||||||
7 | GND | Ground | |||||||
8 | ModSelL | Module select | |||||||
9 | ResetL | Module reset | |||||||
10 | Vcc Rx | +3.3V Power supply receiver | |||||||
11 | SCL | 2-wire serial interface clock | |||||||
12 | SDA | 2-wireserial interface data | |||||||
13 | GND | Ground | |||||||
14 | Rx3p | Receiver non-inverted data output | |||||||
15 | Rx3n | Receiver inverted data output | |||||||
16 | GND | Ground | |||||||
17 | Rx1p | Receiver non-inverted data output | |||||||
18 | Rx1n | Receiver inverted data output | |||||||
19 | GND | Ground | |||||||
20 | GND | Ground | |||||||
21 | Rx2n | Receiver onverted data output | |||||||
22 | Rx2p | Receiver non-inverted data output | |||||||
23 | GND | Ground | |||||||
24 | Rx4n | Receiver inverted data output | |||||||
25 | Rx4p | Receiver non-onverted data output | |||||||
26 | GND | Ground | |||||||
27 | ModPrsL | Module present | |||||||
28 | IntL | Interrupt | |||||||
29 | VCC Tx | +3.3V power supply transmitter | |||||||
30 | VCC1 | +3.3V power supply | |||||||
31 | InitMode | Initialization mode;In legacy QSFP applications,the InitModepad is called LPMODE | |||||||
32 | GND | Ground | |||||||
33 | Tx3p | Transmitter non-inverted data input | |||||||
34 | Tx3n | Transmitter inverted data input | |||||||
35 | GND | Ground | |||||||
36 | Tx1p | Transmitter non-Inverted data input | |||||||
37 | Tx1n | Transmitter inverted data input | |||||||
38 | GND | Ground | |||||||
39 | GND | Ground | |||||||
40 | Tx6n | Transmitter inverted data input | |||||||
41 | Tx6p | Transmitter non-inverted data input | |||||||
42 | GND | Ground | |||||||
43 | Tx8n | Transmitter inverted data input | |||||||
44 | Tx8p | Transmitter non-inverted data input | |||||||
45 | GND | Ground | |||||||
46 | Reserved | For future use | |||||||
47 | VS1 | Module vender specific1 | |||||||
48 | Vcc Rx1 | +3.3V power supply receiver | |||||||
49 | VS2 | Module vender specific2 | |||||||
50 | VS3 | Module vender specific3 | |||||||
51 | GND | Ground | |||||||
52 | Rx7p | Receiver non-inverted data output | |||||||
53 | Rx7n | Receiver inverted data output | |||||||
54 | GND | Ground | |||||||
55 | Rx5p | Receiver non-inverted data output | |||||||
56 | Rx5n | Receiver inverted data output | |||||||
57 | GND | Ground | |||||||
58 | GND | Ground | |||||||
59 | Rx6n | Receiver inverted data output | |||||||
60 | Rx6p | ReceiverNon-inverted data output | |||||||
61 | GND | Ground | |||||||
62 | Rx8n | Receiver inverted data output | |||||||
63 | Rx8p | Receiver non-inverted data output | |||||||
64 | GND | Ground | |||||||
65 | NC | No connect | |||||||
66 | Reserved | For futureuse | |||||||
67 | VCC Tx1 | +3.3V power supply transmitter | |||||||
68 | VCC2 | +3.3V power supply | |||||||
69 | Reserved | For future use | |||||||
70 | GND | Ground | |||||||
71 | Tx7p | Transmitter non-inverted data input | |||||||
72 | Tx7n | Transmitter inverted data input | |||||||
73 | GND | Ground | |||||||
74 | Tx5p | Transmitter non-inverted data input | |||||||
75 | Tx5n | Transmitter inverted data input | |||||||
76 | GND | Ground |
