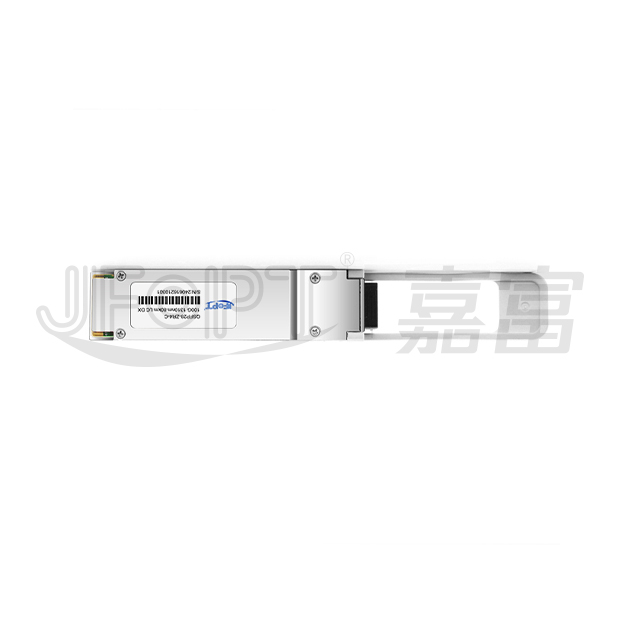

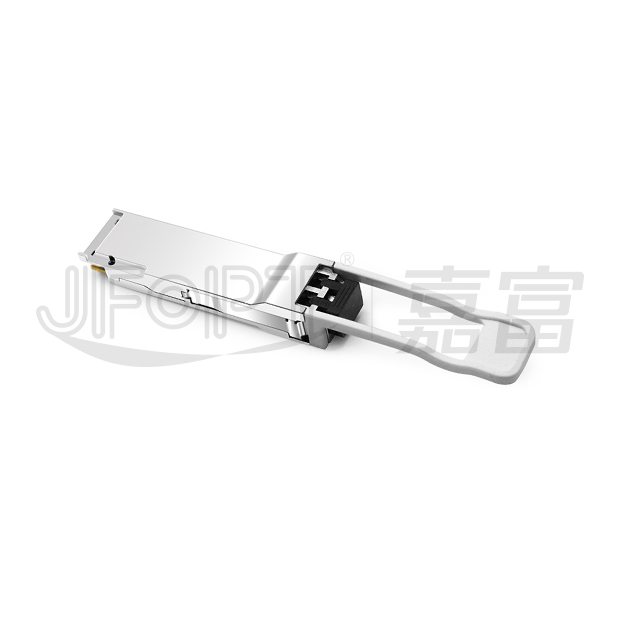

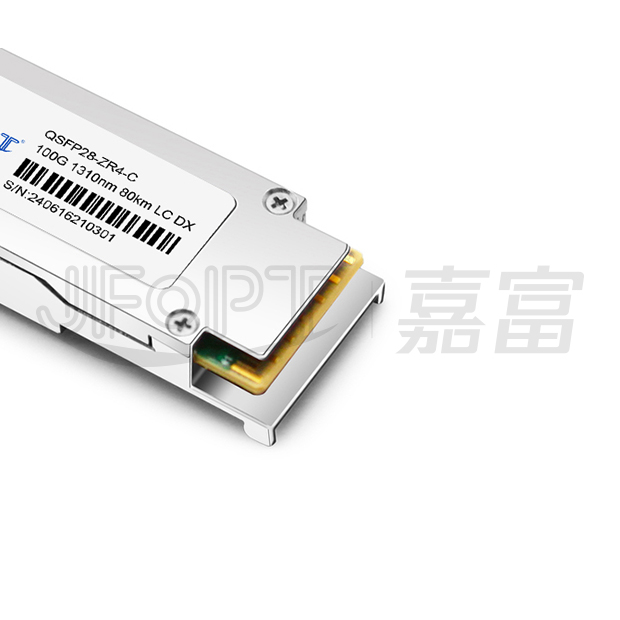

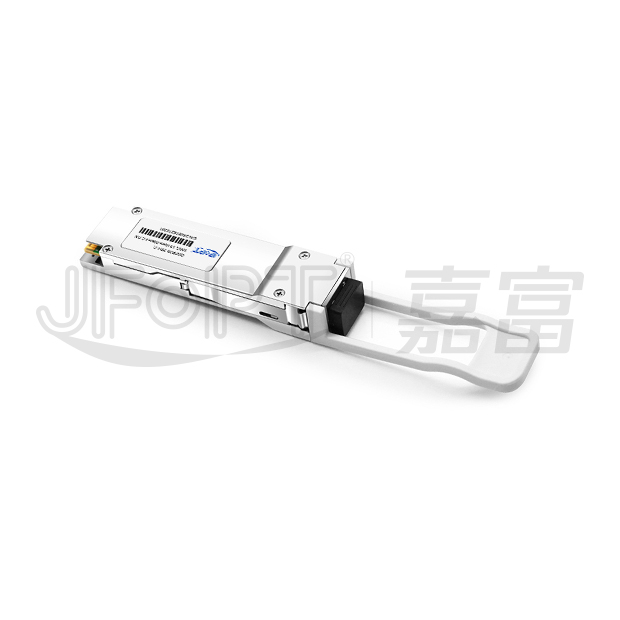

產品型號
|
JFTSM-QSFP28-100-LW-80(ZR4)-LCD
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
QSFP28
|

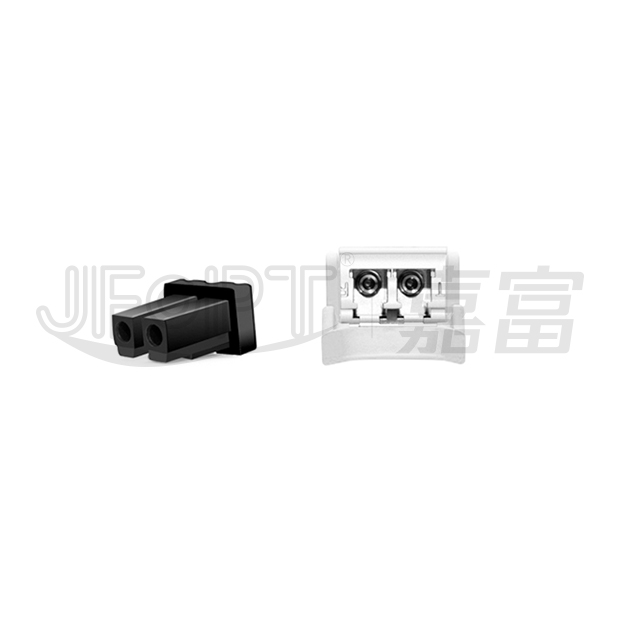

光口類型
|
LC DX
|
|
最高總速率
|
111.81Gbps
|
每通道速率
|
25.78125Gbps
|
|
最大傳輸距離
|
80km
|
||
|
工作波長
|
1310nm
|
工作電壓
|
3.3V
|
|
光纖型號
|
SMF
|
纖芯尺寸
|
9/125
|
|
發射器類型
|
LAN WDM EML
|
接收器類型
|
PIN
|
|
發射功率
|
2.0~6dBm
|
接收靈敏度
|
-28Bm
|
|
數字診斷(DOM)
|
YES
|
接收過載
|
4.5dBm
|
|
功耗
|
<6.5W
|
支持協議
|
100GBASE-ZR4
Ethernet Links |
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
JFOPT嘉富(fu)持續(xu)投入光模(mo)(mo)塊(kuai)生(sheng)(sheng)產(chan)(chan)領域，產(chan)(chan)品(pin)覆(fu)蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系(xi)列光模(mo)(mo)塊(kuai)。同時為下游同行提供TOSA、ROSA、BOSA等光器件(jian)半(ban)成品(pin)解(jie)決方案(an)。JFOPT嘉富(fu)生(sheng)(sheng)產(chan)(chan)線具(ju)備日產(chan)(chan)量一萬(wan)只光模(mo)(mo)塊(kuai)、兩萬(wan)只光器件(jian)的能(neng)力。此(ci)外(wai)，JFOPT嘉富(fu)光模(mo)(mo)塊(kuai)擁有業界領先的耐(nai)高(gao)溫、抗干擾特性，廣(guang)泛應用于計算(suan)中心、運(yun)營商、交通安防、電力設施等行業領域。
JFOPT QSFP28 100G LAN-WDM 80公里(li)雙工LC光(guang)(guang)(guang)模塊(kuai)是一款專為80公里(li)長距光(guang)(guang)(guang)通(tong)信設計(ji)的(de)(de)(de)高性(xing)能模塊(kuai)，集成四通(tong)道(dao)光(guang)(guang)(guang)發射(she)器(qi)、四通(tong)道(dao)光(guang)(guang)(guang)接收器(qi)及配備(bei)兩線制串行(xing)接口的(de)(de)(de)模塊(kuai)管理單(dan)元，通(tong)過行(xing)業標準(zhun)LC連接器(qi)將復用光(guang)(guang)(guang)信號傳輸(shu)至單(dan)模光(guang)(guang)(guang)纖；該(gai)模塊(kuai)嚴格遵(zun)循QSFP+多源協議(MSA)，采用緊湊(cou)型結構設計(ji)，具備(bei)強(qiang)(qiang)固(gu)型光(guang)(guang)(guang)電接口與(yu)數字診斷功(gong)能，可耐受極端溫(wen)度、高濕(shi)及強(qiang)(qiang)電磁干(gan)擾(EMI)等嚴苛外部環境，在惡劣工況下確保穩定可靠的(de)(de)(de)運(yun)行(xing)性(xing)能。
| Compliant with 100GBASE-ZR4 | Support line rates from 103.125Gb/s to 111.81Gb/s OTU4 | |||||||
| LAN WDM EML laser and PIN receiver with SOA | Up to 80km reach for G.652 SMF | |||||||
| Hot pluggable 38 pin electrical interface | QSFP28 MSA compliant | |||||||
| Duplex LC optical receptacle | Maximum power consumption 6.5W | |||||||
| Single+3.3V power supply | Case operating temperature:0~+70℃ | |||||||
| 100GBASE-LR4 100G ethernet | ||||||||
| Parameter | Symbol | Min. | Max. | Unit | |||||
| Supply voltage | VCC | -0.5 | +3.6 | V | |||||
| Storage temperature | TC | -40 | +85 | ℃ | |||||
| Relative humidity | RH | 5 | 85 | % | |||||
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
| Parameter | Symbol | Min | Typical | Max | Unit | ||||
| Power supply voltage | VCC | 3.15 | 3.3 | 3.45 | V | ||||
| Operating case temperature | Tca | 0 | - | 70 | ℃ | ||||
| Link distance | D | - | - | 80 | km | ||||
| Parameter | Symbol | Min | Typical | Max | Unit | Ref | |||
Transmitter |
|||||||||
| Input differential impedance | Rin | 90 | 100 | 110 | Ω | 1 | |||
| Differential input voltage amplitude | Vin | - | - | 900 | mVp-p | 2 | |||
Receiver |
|||||||||
| Output differential impedance | Rout | 90 | 100 | 110 | Ω | 1 | |||
| Differential output voltage amplitude |
Vout | 300 | - | 900 | mVp-p | 3 | |||
Notes: [1]AC coupled. [2]Differential input voltage amplitude is measured between TxnP and TxnN. [3]Differentialoutput voltage amplitude is measured between RxnP and RxnN. |
|||||||||
| Parameter | Symbol | Min | Typical | Max | Unit | ||||
| Center wavelength | Ch0 | λ0 | 1294.53 | 1295.56 | 1296.59 | nm | |||
| Ch1 | λ1 | 1299.02 | 1300.05 | 1301.09 | nm | ||||
| Ch2 | λ2 | 1303.54 | 1304.58 | 1305.63 | nm | ||||
| Ch3 | λ3 | 1308.09 | 1309.14 | 1310.09 | nm | ||||
| Bit rate per channel | B | 25.78125±100ppm | Gbps | ||||||
| Side mode suppression ratio | SMSR | 30 | - | - | dB | ||||
| Average launch power,each lane | - | 2 | - | 6 | dBm | ||||
| Launch power in OMA minus TDP,each lane | OMA-TDP | -0.7 | - | - | dBm | ||||
| Transmission & dispersion penalty, each lane | TDP | - | - | 2.5 |  dB |
||||
| Relative intensity noise | RIN | - | - | -130 | dB/Hz | ||||
| Transmitter reflectance | - | - | - | -20.0 | dB | ||||
| Extinction ratio | ER | 6 | - | - | dB | ||||
| Transmitter eye mask definition {X1,X2,X3,Y1,Y2,Y3} | {0.25,0.4,0.45,0.25,0.28,0.4} | ||||||||
| Average launch power of OFF transmitter,each lane | - | - | - | -30 | dBm | ||||
| Optical return loss tolerance | - | - | - | 20 | dB | ||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | ||||
| Center wavelength | Ch0 | λ0 | 1294.53 | 1295.56 | 1296.59 | nm | |||
| Ch1 | λ1 | 1299.02 | 1300.05 | 1301.09 | nm | ||||
| Ch2 | λ2 | 1303.54 | 1304.58 | 1305.63 | nm | ||||
| Ch3 | λ3 | 1308.09 | 1309.14 | 1310.09 | nm | ||||
| Bit rateper channel | B | 25.78125±100ppm | Gbps | ||||||
| Damage threshold,each lane | - | 6.5 | - | - | dBm | ||||
| Average receive power,each lane | - | -28.0 | - | -7 | dbm | ||||
| Unstressed sensitivity (OMA) at 5x10-5 BER | OMAin | - | - | -28 | dBm | ||||
| LOS assert | LOSA | -40 | - | - | dBm | ||||
| LOS de-assert | LOSD | - | - | -29 | dBm | ||||

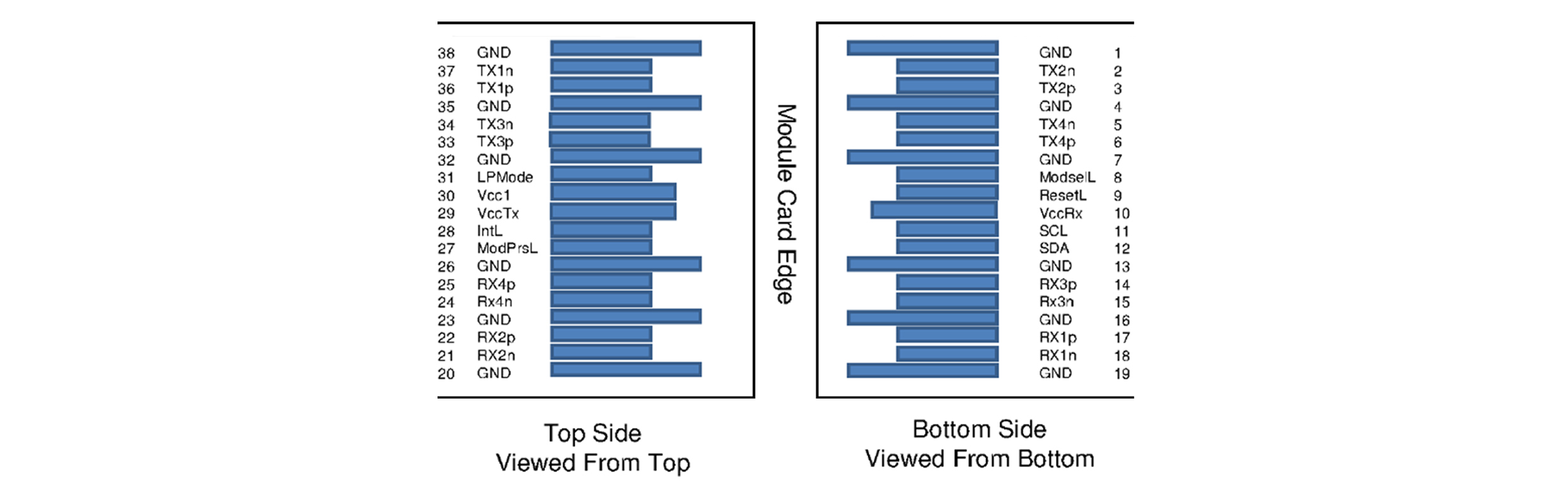

| Pin | Symbol | Name/Description | |||||||
| 1 | GND | Ground | |||||||
| 2 | Tx2n | Transmitter inverted data input | |||||||
| 3 | Tx2p | Transmitter non-inverted data input | |||||||
| 4 | GND | Ground | |||||||
| 5 | Tx4n | Transmitter inverted data input | |||||||
| 6 | Tx4p | Transmitter non-inverted data input | |||||||
| 7 | GND | Ground | |||||||
| 8 | ModSelL | Module select | |||||||
| 9 | ResetL | Module reset | |||||||
| 10 | VCCRx | +3.3V power supply receiver | |||||||
| 11 | SCL | 2-wire serial interface clock | |||||||
| 12 | SDA | 2-wire serial interface data | |||||||
| 13 | GND | Ground | |||||||
| 14 | Rx3p | Receiver non-inverted data output | |||||||
| 15 | Rx3n | Receiver inverted data output | |||||||
| 16 | GND | Ground | |||||||
| 17 | Rxlp | Receiver non-inverted data output | |||||||
| 18 | Rx1n | Receiver inverted data output | |||||||
| 19 | GND | Ground | |||||||
| 20 | GND | Ground | |||||||
| 21 | Rx2n | Receiver inverted data output | |||||||
| 22 | Rx2p | Receiver non-inverted data output | |||||||
| 23 | GND | Ground | |||||||
| 24 | Rx4n | Receiver inverted data output | |||||||
| 25 | Rx4p | Receiver non-inverted data output | |||||||
| 26 | GND | Ground | |||||||
| 27 | ModPrsL | Module present | |||||||
| 28 | IntL | Interrupt | |||||||
| 29 | VCC Tx | +3.3V power supply transmitter | |||||||
| 30 | VCC1 | +3.3V power Supply | |||||||
| 31 | LPMode | Low power mode | |||||||
| 32 | GND | Ground | |||||||
| 33 | Tx3p | Transmitter non-inverted data input | |||||||
| 34 | Tx3n | Transmitter inverted data input | |||||||
| 35 | GND | Ground | |||||||
| 36 | Txlp | Transmitter non-inverted dataInput | |||||||
| 37 | Tx1n | Transmitter inverted data input | |||||||
| 38 | GND | Ground | |||||||
