產品型號
|
JFTSM-SFPCO-001A-01-RJ45-SGMII
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
SFP
|
接口類型
|
RJ45
|
|
最高總速率
|
125Mbps
|
10G 最大傳輸距離
|
100m
|
|
支持熱插拔
|
YES
|
工作電壓
|
3.3V
|
|
功耗
|
-
|
支持協議
|
SFP MSA IEEE Std 802.3
|
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
|
工作溫度(工業級)
|
-40℃~+85℃
|
儲存溫度（工業級）
|
-40℃~+85℃
|
生產線介紹
PRODUCTION LINE INTRODUCTION
JFOPT嘉(jia)富持續投入光(guang)模塊(kuai)生(sheng)產(chan)領(ling)域，產(chan)品覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等(deng)全(quan)系(xi)列光(guang)模塊(kuai)。同時為下游(you)同行(xing)(xing)提(ti)供TOSA、ROSA、BOSA等(deng)光(guang)器件(jian)(jian)半成(cheng)品解決方案。JFOPT嘉(jia)富生(sheng)產(chan)線具備日產(chan)量一萬(wan)只光(guang)模塊(kuai)、兩萬(wan)只光(guang)器件(jian)(jian)的能力(li)。此外，JFOPT嘉(jia)富光(guang)模塊(kuai)擁有(you)業界(jie)領(ling)先的耐高溫(wen)、抗干擾特性，廣泛應(ying)用于計(ji)算中(zhong)心、運營(ying)商、交通安防、電力(li)設施等(deng)行(xing)(xing)業領(ling)域。
產品介紹
PRODUCT PRESENTATION

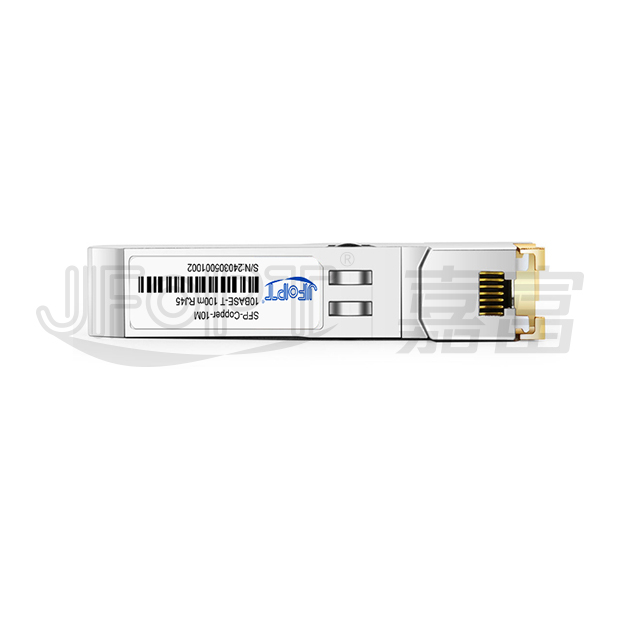

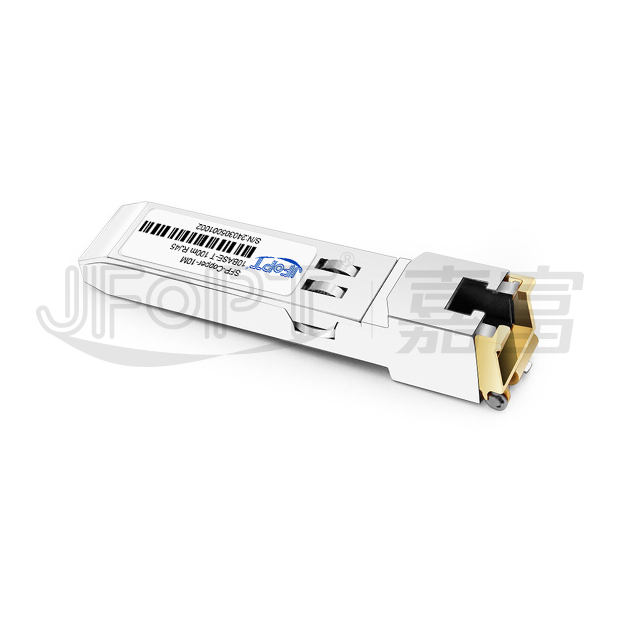

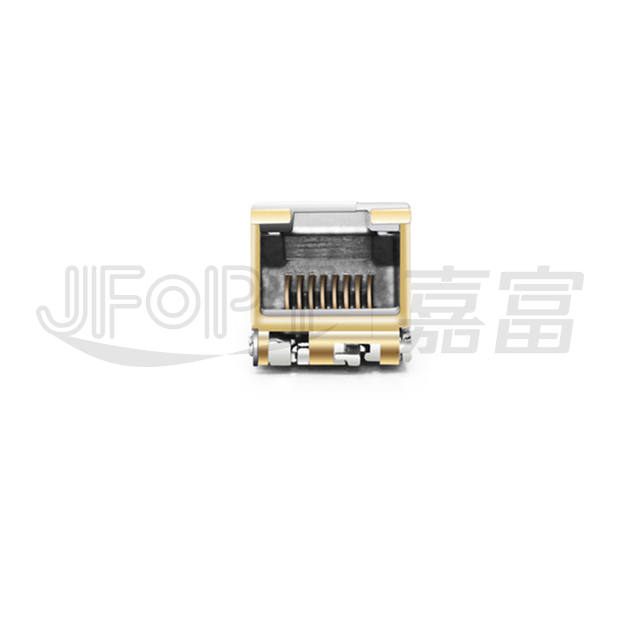

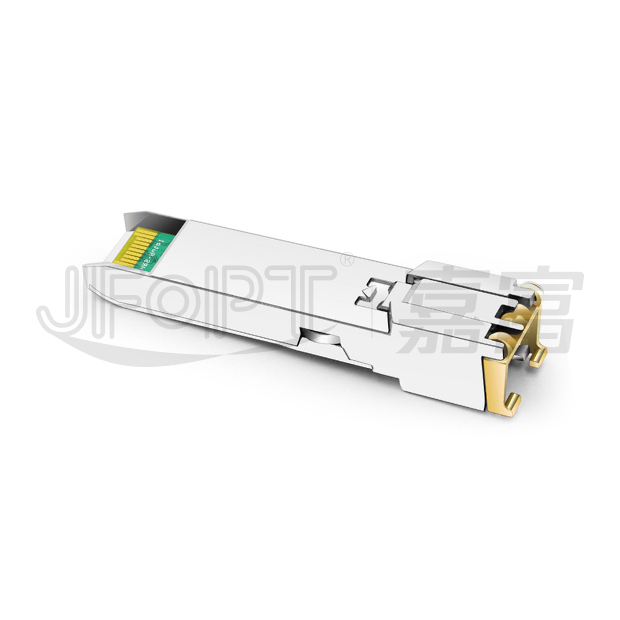

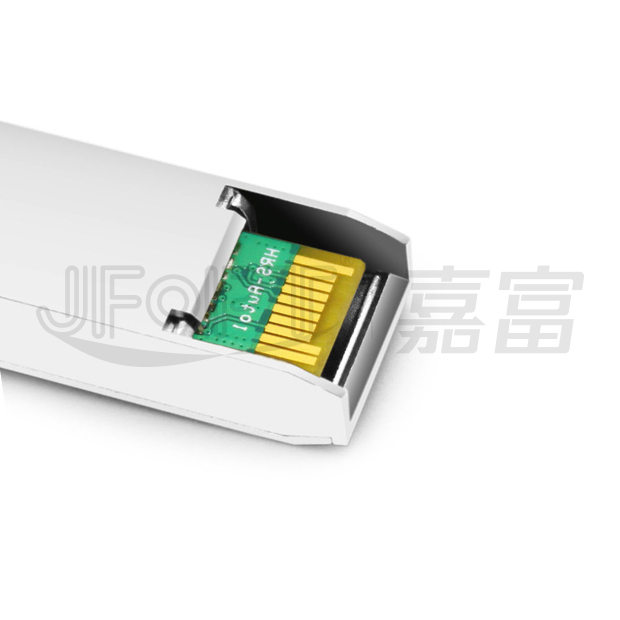

JFOPT SFP Copper 10BASE-T 100m RJ45是(shi)一款專(zhuan)為10BASE-T銅(tong)纜連接(jie)設(she)計(ji)的(de)小型可(ke)(ke)插(cha)拔（SFP）光模(mo)塊。該光模(mo)塊符合SFP多源協議（MSA）以及(ji)IEEE 802.3-2002和IEEE 802.3u中規定的(de)10BASE-T標準，具有高性能(neng)和經濟實用(yong)的(de)特點(dian)，可(ke)(ke)通(tong)過(guo)非屏蔽雙絞線5類線纜實現最遠(yuan)100米距離的(de)10Mbps數據傳輸。

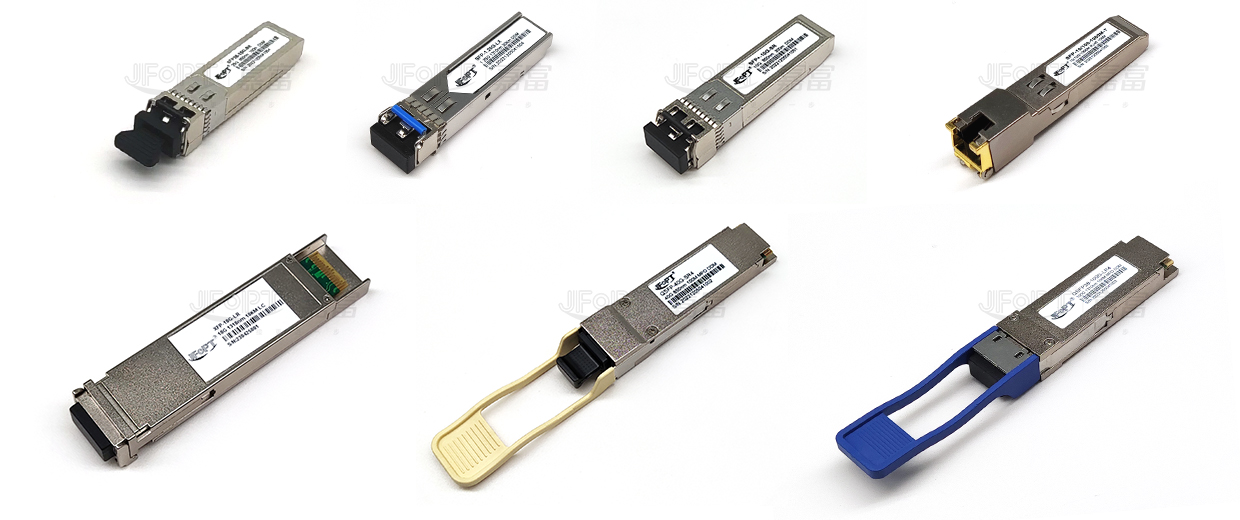

光模塊系列產品
TRANSCEIVER SERIES PRODUCTS

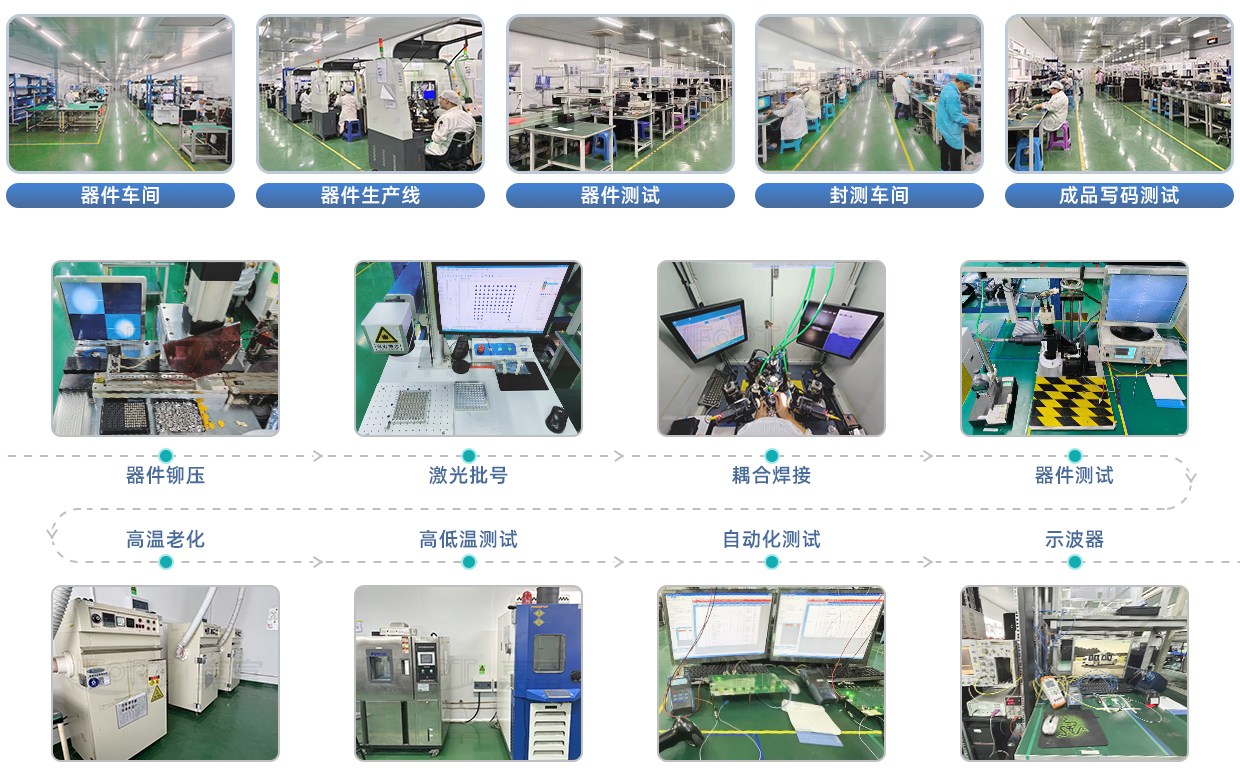

生產及檢測設備
PRODUCTION & TESTING EQUIPMENT
產品特點
FEATURES
| Support 10BASE-T operation in host systems | For 100m reach over Cat 5 UTP cable | ||||||||
| Hot-Pluggable SFP Footprint | Fully metallic enclosure for low EMI | ||||||||
| Low power dissipation | Compact RJ-45 connector assembly | ||||||||
| Detailed product information in EEPROM | Operating case temperature Standard ：0C~70C Industrial ：-40C~85C |
||||||||
| Compliant with SFP MSA | Compliant with IEEE Std 802.3 |
應用范圍
APPLICATION
符合標準
STANDARD COMPLIANCE
訂購信息
ORDER INFORMATION
| Part No. | Data Rate | Link Type | Connector | LOS Function | Distance | Tempe. | ||
| JFTSM-SFPCO-001A-01-RJ45-SGMII | 10M | Cat5 | RJ45 | With | 100m | Standard | ||
絕對最大額定值
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min. | Typ | Max. | ||||
| Maximum supply voltage | Vcc | -0.5 | - | 4.0 | ||||
| Storage temperature | TS | -40 | - | +85 | ||||
正常工作條件
NORMAL OPERATING CONDITION
| Parameter | Symbol | Min | Typ | Max | Units | Ref. | ||
| Operating case temperature | Tc | 0 | - | 70 | °C | Standard | ||
| -40 | - | 85 | Industrial | |||||
| Supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | |||
電氣特性
ELECTRICAL CHARACTERISTICS
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions | ||
| +3.3 Volt Electrical Power Interface |
||||||||
| Supply current | Icc | - | 170 | 300 | mA | - | ||
| Input voltage | Vcc | 3.13 | 3.3 | 3.47 | V | - | ||
| Surge vurrent | Isurge | - | - | 30 | mA | - | ||
Low-Speed Signals, Electronic Characteristics |
||||||||
| SFP output low | VOL | 0 | - | 0.5 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | ||
| SFP output high | VOH | host_Vcc-0.5 | - | host_Vcc+0.3 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | ||
| SFP input low | VIL | 0 | - | 0.8 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | ||
| SFP input high | VIH | 2 | - | Vcc + 0.3 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | ||
High-Speed Electrical Interface, Transmission Line-SFP |
||||||||
| Line baud rates | fL | - | 125 | - | MHz | MLT-3 encoding per IEEE802.3u | ||
| TX output impedance | Zout, TX |
-
 |
100 | - | Ohm | Differential, AC coupled Internally | ||
| RX input impedance | Zin, RX | - | 100 | - | Ohm | Differential, AC coupled Internally | ||
High-Speed Electrical Interface, Host-SFP |
||||||||
| Single ended data input swing | Vin | 250 | - | 1200 | mV | Single ended | ||
| Single ended data output swing | Vout | 300 | - | 1000 | mV | Single ended | ||
| Rise/Fall time | Tr, Tf | - | 3 | - | nsec | 20%-80% | ||
| TX Iinput impedance | Zin | - | 50 | - | Ohm | Single ended | ||
| RX output impedance | Zout | - | 50 | - | Ohm | Single ended | ||
一般規格
GENERAL SPECIFICATIONS
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions | ||
| Data rate | JFTSM-SFPCO-001A-01-RJ45-SGMII | - | 10 | - | Mbps | |||
| Distance | - | - | - | 100 | m | Category 5 UTP. BER <10-12 | ||
引腳說明
PIN DESCRIPTIONS
| Pin No. | Name | Function | Plug Seq. | Notes | ||||
| 1 | VeeT | Transmitter ground | 1 | - | ||||
| 2 | TX fault | Transmitter fault indication | 3 | 1 | ||||
| 3 | TX disable | Transmitter disable | 3 | 2 | ||||
| 4 | MOD-DEF2 | Module definition 2 | 3 | 3 | ||||
| 5 | MOD-DEF1 | Module definition 1 | 3 | 3 | ||||
| 6 | MOD-DEF0 | Module definition 0 | 3 | 3 | ||||
| 7 | Rate select | Not connected | 3 | - | ||||
| 8 | LOS | Los of signal | 3 | 4 | ||||
| 9 | VeeR | Receiver ground | 1 | - | ||||
| 10 | VeeR | Receiver ground | 1 | - | ||||
| 11 | VeeR | Receiver ground | 1 | - | ||||
| 12 | RD- | Inv. received data out | 3 | 5 | ||||
| 13 | RD+ | Received data out | 3 | 5 | ||||
| 14 | VeeR | Receiver ground | 1 | - | ||||
| 15 | VccR | Receiver power | 2 | 6 | ||||
| 16 | VccT | Transmitter power | 2 | 6 | ||||
| 17 | VeeT | Transmitter ground | 1 | - | ||||
| 18 | TD+ | Transmit data in | 3 | 7 | ||||
| 19 | TD- | Inv. transmit data in | 3 | 7 | ||||
| 20 | VeeT | Transmitter ground | 1 | - | ||||
1. TX Fault is not used and tied to ground within the module.
2. TX Disable is not used and is not connected within the module.
3. MOD-DEF 0,1,2 are the module definition pins. They should be pulled up with a 4.7k~10k? resistor on the host board. The pull-up voltage shall be VccT or VccR.
MOD-DEF 0 is tied to ground within the module.
MOD-DEF 1 is the clock line of two wire serial interface for serial ID
MOD-DEF 2 is the data line of two wire serial interface for serial ID
4. The LOS will be LVTTL low for link ok and will be LVTTL high for link off. Externally pull up to VccR or VccT with 4.7k – 10k ohm on host board.
5. These are the differential receiver output. Internally AC-coupled in the transceiver. 100? differential lines and 100 ? terminate resistor should be used on the host board.
6. VccT and VccR are internally connected together in the transceiver.
7. These are the differential receiver input. Internally AC-coupled in the transceiver. 100? differential lines and 100 ? terminate resistor is used in the transceiver.

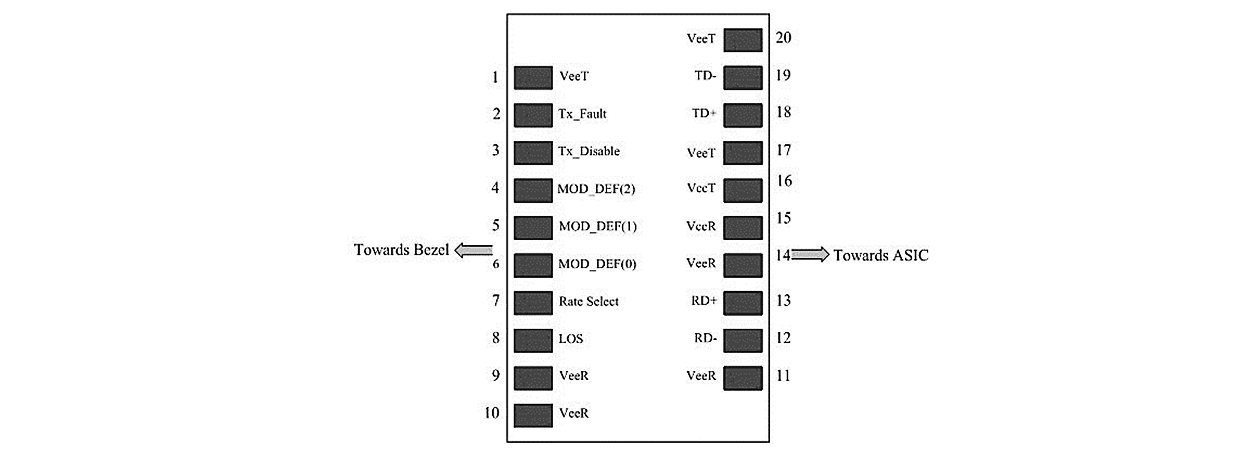

The following is the Diagram of host board connector pin numbers and names
串行通信協議
SERIAL COMMUNICATION PROTOCOL
JFOPT Copper SFP support the 2-wire serial communication protocol defined in the SFP MSA. These SFP use a 128 byte EEPROM with an address of A0H.
EEPROM串行ID存儲器內容
EEPROM SERIAL ID MEMORY CONTENTS
Accessing Serial ID Memory uses the 2 wire address 1010000X (A0H). Memory Contents of Serial ID are shown in Table 1.
|
Table 1 Serial ID Memory Contents |
||||||||
| Addr. | Size (Bytes) |
Name of Field | Hex | Description | ||||
BASE ID FIELDS |
||||||||
| 0 | 1 | Identifier | 03 | SFP | ||||
| 1 | 1 | Ext. Identifier | 04 | SFP function is defined by serial ID only | ||||
| 2 | 1 | Connector | 22 | RJ-45 | ||||
| 3- 10 | 8 | Transceiver | 00 00 00 20 00 00 00 00 | 100BASE-FX | ||||
| 11 | 1 | Encoding | 02 | 4B5B | ||||
| 12 | 1 | BR, Nominal | 01 | 100M | ||||
| 13 | 1 | Reserved | 00 | - | ||||
| 14 | 1 | Length (9µm)km | 00 | Transceiver transmit distance |
||||
| 15 | 1 | Length(9µm)100m | 00 | |||||
| 16 | 1 | Length (50µm) 10m | 00 | |||||
| 17 | 1 | Length(62.5µm)10m | 00 | |||||
| 18 | 1 | Length (Copper) | 64 | 100m | ||||
| 19 | 1 | Reserved | 00 | - | ||||
| 20-35 | 16 | Vendor name | XX XX XX XX XX XX XX XX 20 20 20 20 20 20 20 20 |
Vendor name (ASCII) | ||||
| 36 | 1 | Reserved | 00 | - | ||||
| 37-39 | 3 | Vendor OUI | XX XX XX | - | ||||
| 40-55 | 16 | Vendor PN | - | Transceiver part number | ||||
| 56-59 | 4 | Vendor rev | XX XX XX XX | - | ||||
| 60-61 | 2 | Wavelength | 00 | - | ||||
| 62 | 1 | Reserved | 00 | - | ||||
| 63 | 1 | CC_BASE | Check Sum (Variable) | Check code for Base ID Fields | ||||
EXTENDED ID FIELDS |
||||||||
| 64-65 | 2 | Options | 00 00 | - | ||||
| 66 | 1 | BR,max | 00 | - | ||||
| 67 | 1 | BR,min | 00 | - | ||||
| 68-83 | 16 | Vendor SN | XX XX XX XX XX XX XX XX 20 20 20 20 20 20 20 20 |
Serial Number of transceiver (ASCII). For example“B000822” . | ||||
| 84-91 | 8 | Date code | XX XX XX XX XX XX XX XX |
Manufacture date code. For example “080405” . |
||||
| 92-94 | 3 | Reserved | XX | - | ||||
| 95 | 1 | CC_EXT | Check Sum (Variable) | Check sum for Extended ID Field. | ||||
VENDOR SPECIFIC ID FIELDS |
||||||||
| 96-127 | 32 | Vendor Specific | Read only | Depends on customer information | ||||
| 128-255 | 128 | Reserved | Read only | |||||

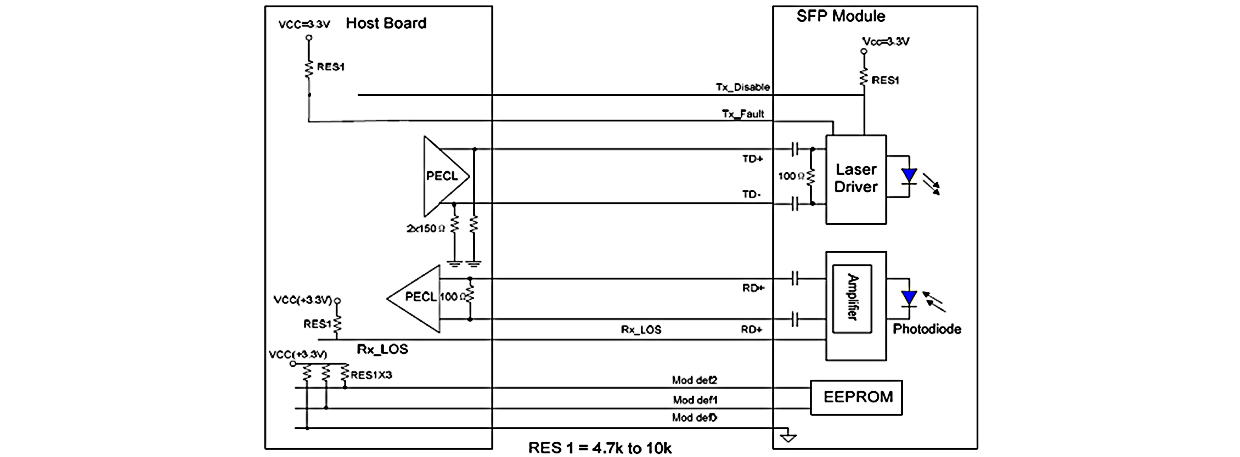

推薦電路示意圖
RECOMMENDED CIRCUIT SCHEMATIC

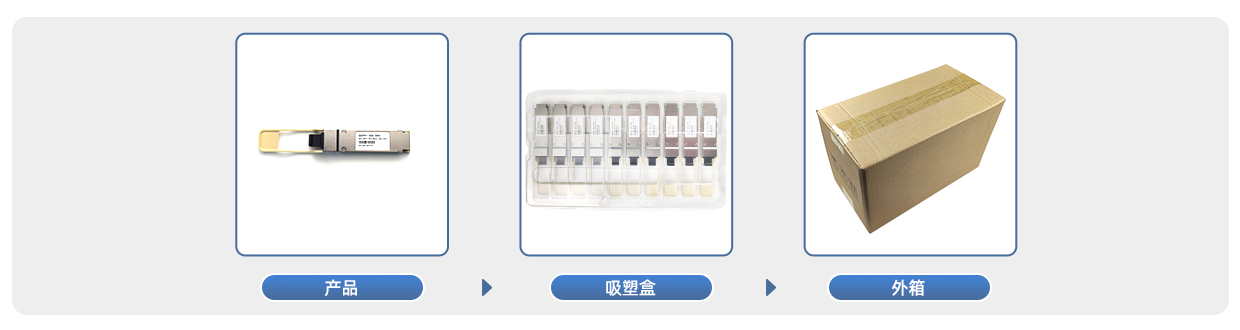

產品包裝
PRODUCT PACKAGING
產品認證
PRODUCT CERTIFICATION

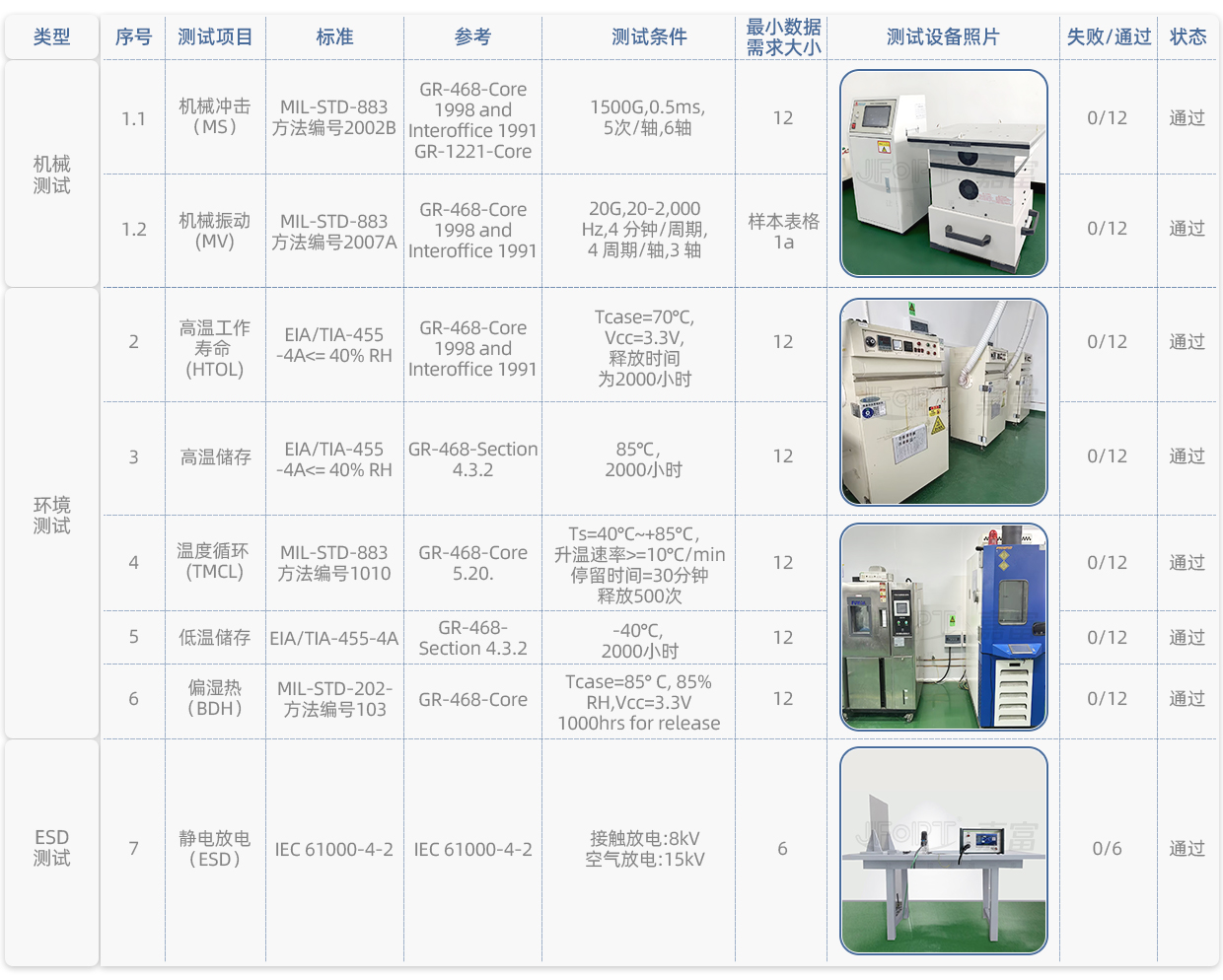

質量優勢
QUALITY ADVANTAGE
