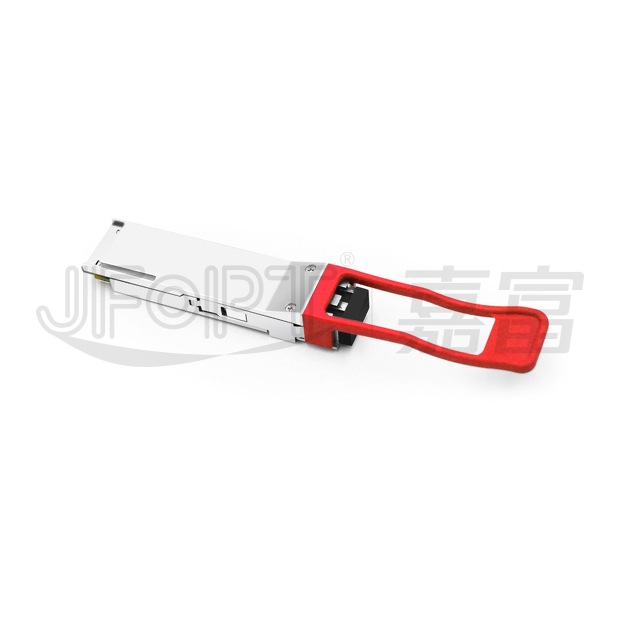

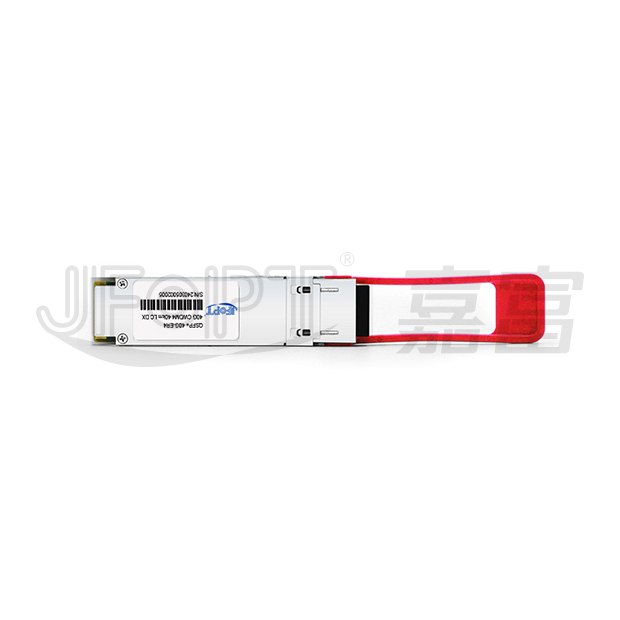

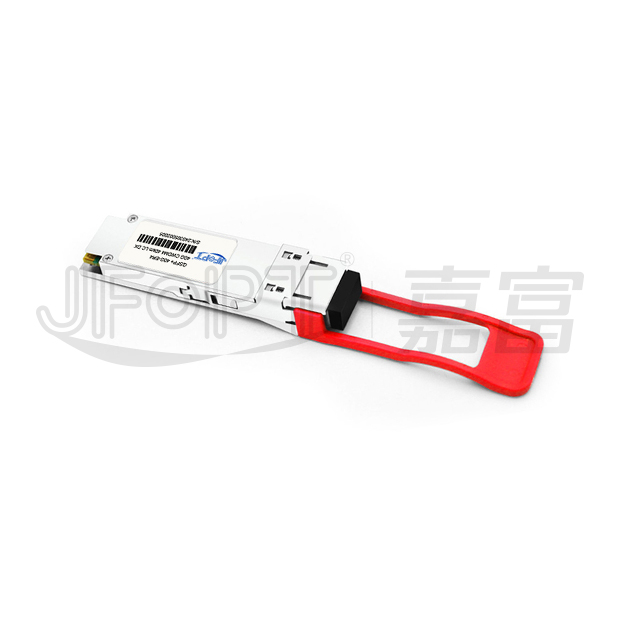

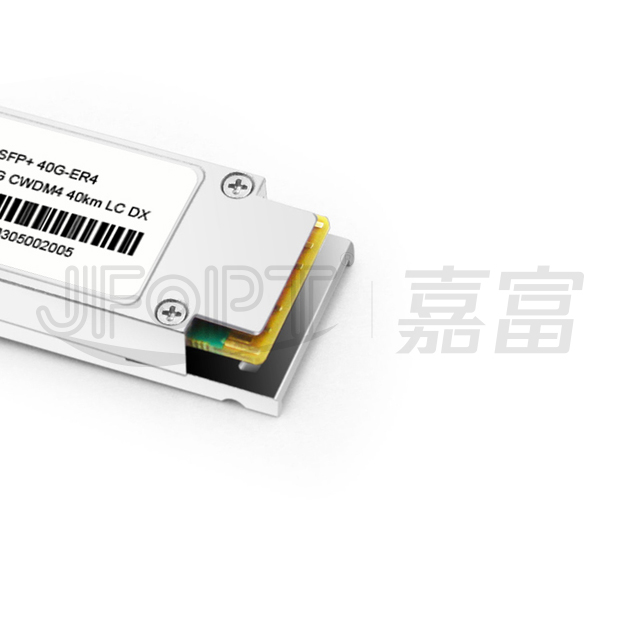

產品型號
|
JFTSM-QSFP+40-CW4-40(ER4)-LCD
|
工廠品牌
|
JFOPT
|
|
封裝形式
|
QSFP+
|
光口類型
|
LC 雙聯
|
|
最高總速率
|
40Gbps
|
每通道速率
|
10.3125Gbps
|
|
最大傳輸距離
|
40km
|
||
|
工作波長
|
1271nm, 1291nm
1311nm, 1331nm
|
工作電壓
|
3.3V
|
|
光纖型號
|
SMF
|
纖芯尺寸
|
9/125
|
|
發射器類型
|
DFB CWDM
|
接收器類型
|
APD
|
|
發射功率
|
-2.7~4.5dBm
|
接收靈敏度
|
<-21.2dBm
|
|
數字診斷
|
YES
|
接收過載
|
-4.5dBm
|
|
功耗
|
Commercial≤3.5W
Industrial≤4.5W
|
支持協議
|
IEEE 802.3ba 40GBASE-ER4
|
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
|
工作溫度(工業級)
|
-40℃~+85℃
|
儲存溫度（工業級）
|
-40℃~+85℃
|
生產線介紹
PRODUCTION LINE INTRODUCTION
JFOPT嘉(jia)富(fu)持(chi)續投入光(guang)(guang)模(mo)塊生產領(ling)域，產品(pin)覆(fu)蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等(deng)全系列(lie)光(guang)(guang)模(mo)塊。同時為下游同行提供TOSA、ROSA、BOSA等(deng)光(guang)(guang)器件(jian)半(ban)成品(pin)解決方案(an)。JFOPT嘉(jia)富(fu)生產線具備(bei)日產量(liang)一萬只(zhi)光(guang)(guang)模(mo)塊、兩萬只(zhi)光(guang)(guang)器件(jian)的(de)能力。此外(wai)，JFOPT嘉(jia)富(fu)光(guang)(guang)模(mo)塊擁有業界領(ling)先的(de)耐高溫、抗干擾特性，廣(guang)泛應用于計算中心、運(yun)營商、交通安(an)防、電力設施等(deng)行業領(ling)域。
產品介紹
PRODUCT PRESENTATION
JFOPT QSFP+ 40G CWDM4 40km ER4 LC DX光(guang)模塊專(zhuan)為40GbE單模光(guang)纖（SMF）連接(jie)設計，傳輸距(ju)離(li)可(ke)達40公(gong)里。該模塊符合IEEE 802.3ba 40GBASE-ER4標準，并通過QSFP+ MSA規(gui)定(ding)的I2C接(jie)口(kou)提(ti)供數字診斷功(gong)能。
光模塊系列產品
TRANSCEIVER SERIES PRODUCTS
生產及檢測設備
PRODUCTION & TESTING EQUIPMENT
產品特點
FEATURES
| Supports 40Gbps | Single 3.3V power supply | ||||||||
| Commercial power dissipation <3.5W and and industrial power dissipation <4.5W | Up to 40km over SMF | ||||||||
|
Operating case temperature range of
Standard: 0°C to 70°C
Industrial: -40°C to 85°C
|

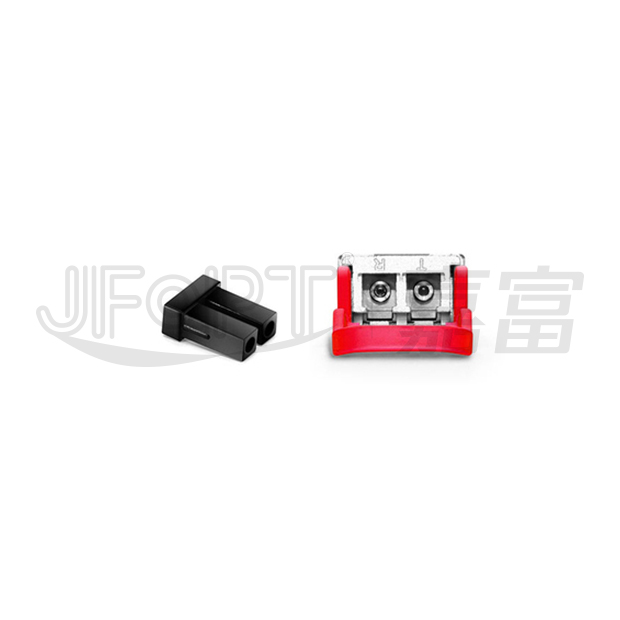

Four 10G DFB base CWDM channels on transmitter side | ||||||||
| Duplex LC receptacles | I2C interface with integrated digital diagnostic monitoring | ||||||||
| Safety certification: TUV/UL/FDA | RoHS compliant |
應用范圍
APPLICATION
符合標準
STANDARD COMPLIANCE
絕對最大額定值
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min. | Max. | Unit | ||||
| Storage temperature | TS | -40 | +85 | °C | ||||
| Supply voltage | VCC | -0.5 | 3.6 | V | ||||
| Operating relative humidity | RH | 0 | 85 | % | ||||
*Exceeding any one of these values may destroy the device immediately.
建議操作條件
RECOMMENDED OPERATING CONDITIONS
| Parameter | Symbol | Min. | Typical | Max. | Unit | |||
| Operating case temperature | Tc | JFTSM-QSFP+40-CW4-40(ER4)-LCD | 0 | - | +70 | °C | ||
| -40 | - | +85 | °C | |||||
| Power supply voltage | Vcc | 3.135 | 3.3 | 3.465 | V | |||
| Commercial power dissipation | PD | - | - | 3.5 | W | |||
| Industrial power dissipation | PD | - | - | 4.5 | W | |||
| Link distance with G.652 | D | - | - | 40 | km | |||
性能規范-電氣
PERFORMANCE SPECIFICATIONS - ELECTRICAL
| Parameter | Symbol | Min. | Typ. | Max | Unit | Notes | ||
| Supply voltage | - | 3.1 | - | 3.47 | V | - | ||
| Supply current | Icc | - | - | 1.44 | A | - | ||
| Transmit turn-on time | - | - | - | 2000 | ms | Note3 | ||
Transmitter |
||||||||
| Differential input voltage swing |
Vin,pp | 190 | - | 700 | mVp-p | - | ||
| Input impedance (Differential) | Zin | 90 | 100 | 110 | ohms | Rin > 100 kohms @ DC |
||
Receiver |
||||||||
| Differential output voltage swing |
Vout,pp | 300 | - | 850 | mVp-p | - | ||
| AC common mode output voltage |
- | - | - | 7.5 | mV | RMS | ||
| Output impedance (Differential) |
Zout | 90 | 100 | 110 | ohms | - | ||
| Output transition time | - | 28 | - | - | ps | 20%~80% | ||
40GBASE-ER4 操作
40GBASE-ER4 OPERATION
| Parameter |
  Symbol
|
Min. | Typical | Max. | Unit | |||
Transmitter |
||||||||
| Signaling speed per lane | BRAVE | - | 10.3125 | 11.2 | Gbps | |||
| Side mode launch power | SMSR | 30 | - | - | dB | |||
| Total average launch power | PT | - | - | 10.5 | dBm | |||
| Lane_0 center wavelength | λC0 | 1264.5 | 1271 | 1277.5 | nm | |||
| Lane_1 center wavelength | λC1 |
 1284.5
|
1291 | 1297.5 | nm | |||
| Lane_2 center wavelength | λC2 | 1304.5 | 1311 | 1317.5 | nm | |||
| Lane_3 center wavelength | λC3 | 1324.5 | 1331 | 1337.5 | nm | |||
| Average launch power per lane | Peach | -2.7 | - | 4.5 | dBm | |||
| Average launch power of OFF transmitter per lane | - | - | - | -30 | dBm | |||
| Relative intensity noise | Rin | - | - | -128 | dB/Hz | |||
| Optical modulation amplitude | Poma | 0.3 | 0 | 5.0 | dBm | |||
| Optical return loss tolerance | - | - | - | 20 | dB | |||
| Differnce in launch power between any two lanes | Ptx,diff | - | - | 4.7 | dB | |||
| Transmitter reflectance | RT | - | - | -12 | dB | |||
| Extinction ratio | ER | 5.5 | - | - | dB | |||
| Transmitter eye mask definition{X1, X2, X3, Y1, Y2, Y3} | - | {0.25 ，0.4 ，0.45 ，0.25 ，0.28 ，0.4} | - | |||||
Receiver |
||||||||
| Signaling speed per lane | BRAVE | - | 10.3125 | - | Gbps | |||
| Data rate variation | -100 | - | +100 | ppm | ||||
| Damage threshold | Rdam | 3.8 | - | - | dBm | |||
| Lane_0 center wavelength | λC0 | 1264.5 | 1271 | 1277.5 | nm | |||
| Lane_1 center wavelength | λC1 | 1284.5 | 1291 | 1297.5 | nm | |||
| Lane_2 center wavelength | λC2 | 1304.5 | 1311 | 1317.5 | nm | |||
| Lane_3 center wavelength | λC3 | 1324.5 | 1331 | 1337.5 | nm | |||
| Average receive power per lane | Rpow | -21.2 | - | -4.5 | dBm | |||
| Receiver sensitivity in OMA per lane | Pmin | - | - | -19 | dBm | |||
| Stressed receiver sensitivity (OMA) per lane | RXSRS | - | - | -16.8 | dBm | |||
Conditions of stressed receiver sensitivity test： |
||||||||
| Vertical eye closure penalty | VECP | - | 2.2 | - | dB | |||
| Stressed J2 jitter | J2 | - | 0.3 | - | UI | |||
| Stressed J9 jitter | J9 | - | 0.47 | - | UI | |||
| LOS assert | LOSA | -35 | - | - | dBm | |||
| LOS de-assert | LOSD | - | - | -23 | dBm | |||
| LOS hysteresis | - | 0.5 | - | - | dB | |||

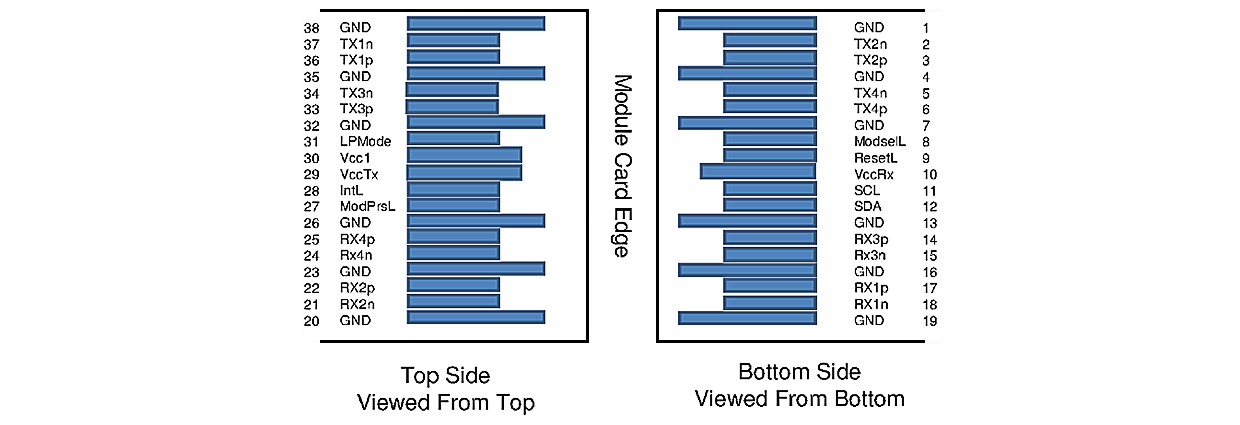

QSFP+收發器電氣焊盤布局
QSFP+ TRANSCEIVER ELECTRICAL PAD LAYOUT
引腳排列和定義
PIN ARRANGEMENT AND DEFINITION
| Pin | Logic | Symbol | Description | Plug Sequence | Notes | |||
| 1 | - | GND | Ground | 1 | 1 | |||
| 2 | CML-I | Tx2n | Transmitter Inverted Data Input | 3 | - | |||
| 3 | CML-I | Tx2p | Transmitter Non-Inverted Data Input | 3 | - | |||
| 4 | - | GND | Ground | 1 | 1 | |||
| 5 | CML-I | Tx4n | Transmitter Inverted Data Input | 3 | - | |||
| 6 | CML-I | Tx4p | Transmitter Non-Inverted Data Input | 3 | - | |||
| 7 | - | GND | Ground | 1 | 1 | |||
| 8 | LVTTL-I | ModSelL | Module Select | 3 | - | |||
| 9 | LVTTL-I | ResetL |
 Module Reset
|
3 | - | |||
| 10 | - | VccRx | +3.3V Power Supply Receiver | 2 | 2 | |||
| 11 | LVCMOS- I/O | SCL | 2-wire Serial Interface Clock | 3 | - | |||
| 12 | LVCMOS- I/O | SDA | 2-wire Serial Interface Data | 3 | - | |||
| 13 | - | GND | Ground | 1 | 1 | |||
| 14 | CML-O | Rx3p | Receiver Non-Inverted Data Output | 3 | - | |||
| 15 | CML-O | Rx3n | Receiver Inverted Data Output | 3 | - | |||
| 16 | - | GND | Ground | 1 | 1 | |||
| 17 | CML-O | Rx1p | Receiver Non-Inverted Data Output | 3 | - | |||
| 18 | CML-O | Rx1n | Receiver Inverted Data Output | 3 | - | |||
| 19 | - | GND | Ground | 1 | 1 | |||
| 20 | - | GND | Ground | 1 | 1 | |||
| 21 | CML-O | Rx2n | Receiver Inverted Data Output | 3 | - | |||
| 22 | CML-O | Rx2p | Receiver Non-Inverted Data Output | 3 | - | |||
| 23 | - | GND | Ground | 1 | 1 | |||
| 24 | CML-O | Rx4n | Receiver Inverted Data Output | 3 | - | |||
| 25 | CML-O | Rx4p | Receiver Non-Inverted Data Output | 3 | - | |||
| 26 | - | GND | Ground | 1 | 1 | |||
| 27 | LVTTL-O | ModPrsL | Module Present | 3 | - | |||
| 28 | LVTTL-O | IntL | Interrupt | 3 | - | |||
| 29 | - | VccTx | +3.3V Power supply transmitter | 2 | 2 | |||
| 30 | - | Vcc1 | +3.3V Power supply | 2 | 2 | |||
| 31 | LVTTL-I | LPMode | Low Power Mode | 3 | - | |||
| 32 | - | GND | Ground | 1 | 1 | |||
| 33 | CML-I | Tx3p | Transmitter Non-Inverted Data Input | 3 | - | |||
| 34 | CML-I | Tx3n | Transmitter Inverted Data Input | 3 | - | |||
| 35 | - | GND | Ground | 1 | 1 | |||
| 36 | CML-I | Tx1p | Transmitter Non-Inverted Data Input | 3 | - | |||
| 37 | CML-I | Tx1n | Transmitter Inverted Data Input | 3 | - | |||
| 38 | - | GND | Ground | 1 | 1 | |||
1: GND is the symbol for signal and supply (power) common for the QSFP+ module. All are common within the QSFP+ module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal-common ground plane.
