產品型號
|
JFTSM-QSFP+40-CW4-10(LR4)-LCD
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
QSFP+
|
光口類型
|
LC 雙聯
|
|
最高總速率
|
40Gbps
|
每通道速率
|
10Gbps
|
|
最大傳輸距離
|
10km
|
||
|
工作波長
|
1300nm
|
工作電壓
|
3.3V
|
|
光纖型號
|
SMF
|
纖芯尺寸
|
9/125
|
|
發射器類型
|
DFBs
|
接收器類型
|
PIN
|
|
發射功率
|
-7.6~+2.3dBm
|
接收靈敏度
|
< -11.5dBm
|
|
數字診斷(DDM)
|
YES
|
接收過載
|
2.3dBm
|
|
功耗
|
≤3.5W
|
支持協議
|
IEEE 802.3ba(40GBASE-LR4)
|
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
|
工作溫度(工業級)
|
-40℃~+85℃
|
儲存溫度（工業級）
|
-40℃~+85℃
|
生產線介紹
PRODUCTION LINE INTRODUCTION
JFOPT嘉富(fu)持(chi)續(xu)投(tou)入光模塊(kuai)生(sheng)產(chan)領(ling)(ling)域(yu)，產(chan)品覆蓋(gai)1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列(lie)光模塊(kuai)。同時為下游同行(xing)提供TOSA、ROSA、BOSA等光器件(jian)半(ban)成(cheng)品解決(jue)方案。JFOPT嘉富(fu)生(sheng)產(chan)線具備日產(chan)量(liang)一萬只光模塊(kuai)、兩萬只光器件(jian)的能力。此外，JFOPT嘉富(fu)光模塊(kuai)擁有業界領(ling)(ling)先的耐高溫、抗干擾特(te)性，廣泛應(ying)用于(yu)計算中心、運營商、交通安防、電力設施等行(xing)業領(ling)(ling)域(yu)。
產品介紹
PRODUCT PRESENTATION

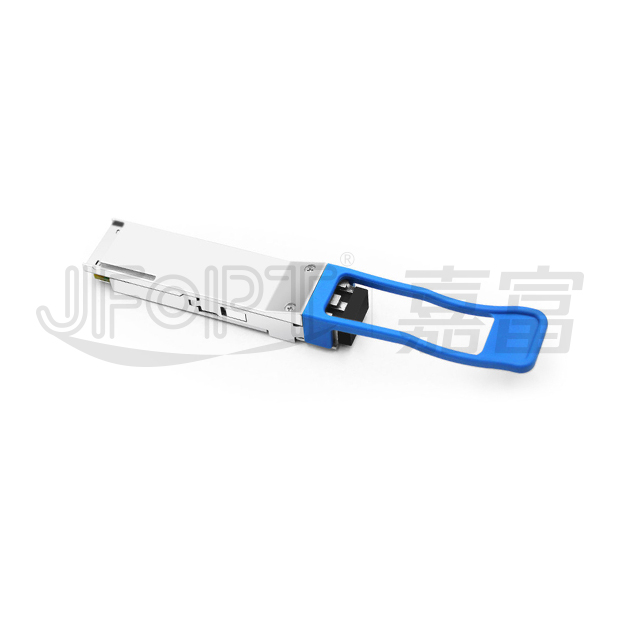

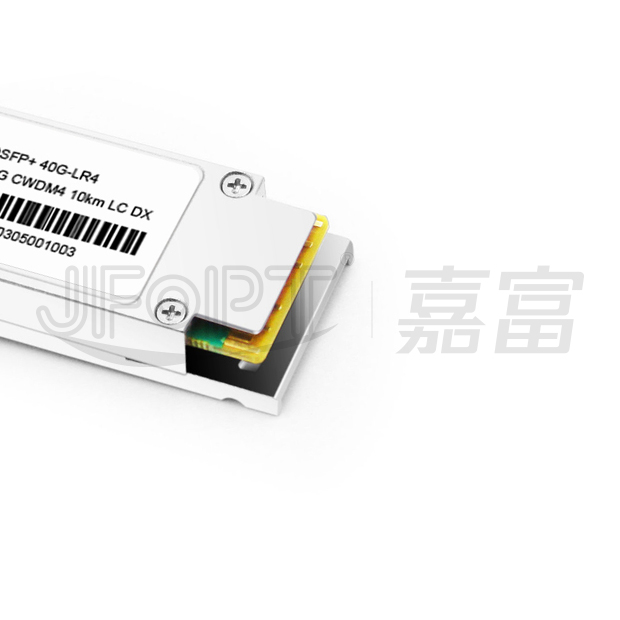

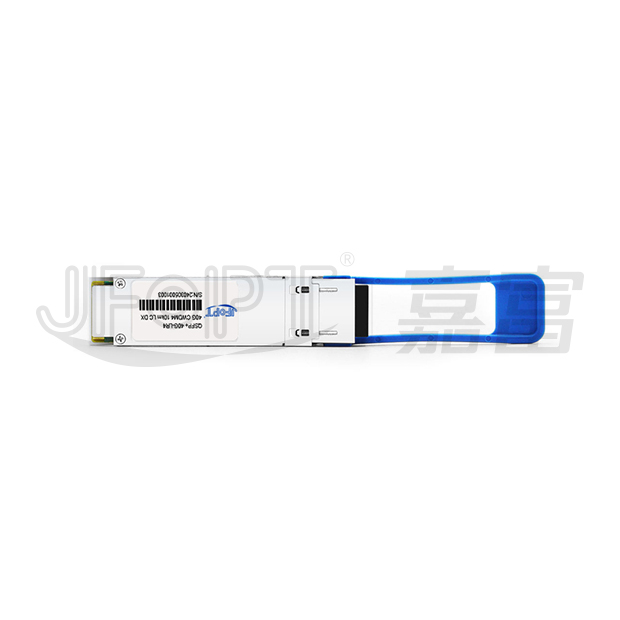

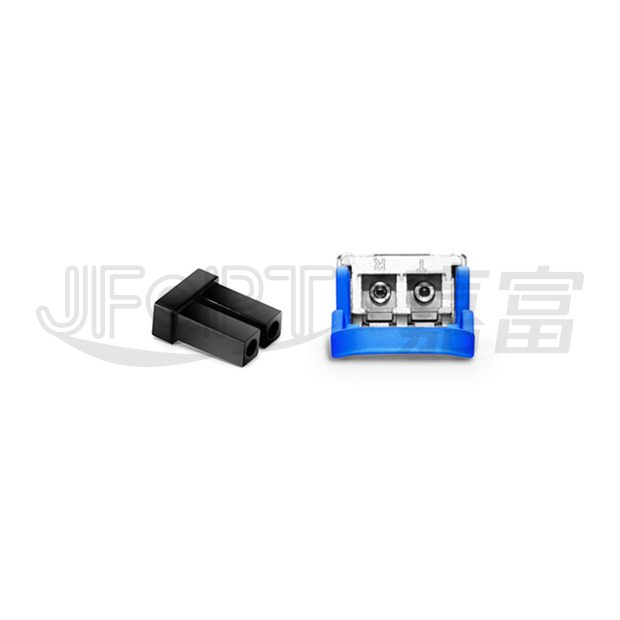

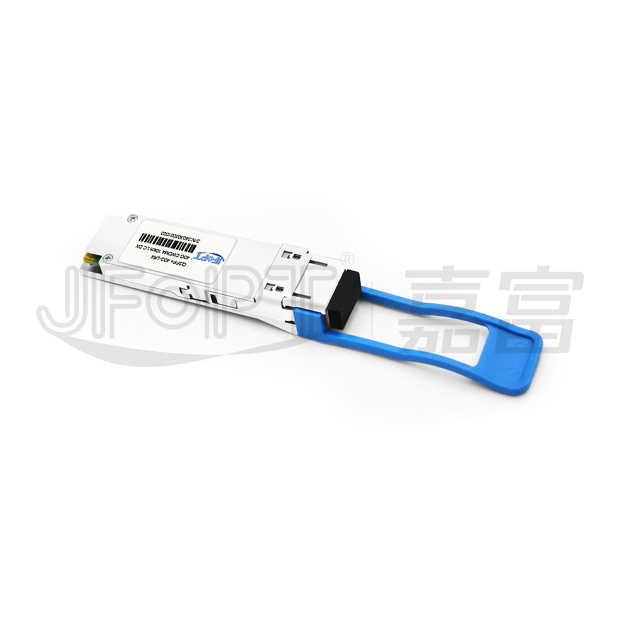

JFOPT QSFP+ 40G CWDM4 10公里 LR4 LC DX光模(mo)(mo)塊(kuai)專為(wei)實(shi)(shi)現40GBASE以太網連接(jie)而設計(ji)，通過(guo)雙工LC連接(jie)器在(zai)1310nm波(bo)長(chang)下支持單模(mo)(mo)光纖(xian)（SMF）傳輸長(chang)達10公里。該模(mo)(mo)塊(kuai)符合(he)QSFP+ MSA、IEEE 802.3ba 40GBASE-LR4及(ji)(ji)OTU3 C4S1-2D1標(biao)準，并基于QSFP+ MSA規范通過(guo)I2C接(jie)口提供數(shu)字診斷功能，實(shi)(shi)現對運行參數(shu)的實(shi)(shi)時(shi)監控(kong)。此款熱插拔、易安(an)裝的光模(mo)(mo)塊(kuai)是數(shu)據中心、高性(xing)能計(ji)算以及(ji)(ji)企(qi)業核心及(ji)(ji)匯聚網絡的理想選擇(ze)。
光模塊系列產品
TRANSCEIVER SERIES PRODUCTS
生產及檢測設備
PRODUCTION & TESTING EQUIPMENT
產品特點
FEATURES
| Compliant to the IEEE 802.3ba(40GBASE-LR4) | Compliant to the QSFP+ MSA SFF-8436 specification | ||||||||
| Up to 20km over SMF | DFBs and PIN monitor photodiodes array for transmitter section | ||||||||
| PIN detectors and TIAs array for receiver section | Four 10Gbps CWDM channels in the 1300nm band | ||||||||
| I2C interface with integrated digital diagnostic monitoring | Utilizes two standard LC optical connector | ||||||||
| Operating case temperature: 0℃~+70℃ |
應用范圍
APPLICATION
符合標準
STANDARD COMPLIANCE
絕對最大額定值
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min. | Max. | Unit | ||||
| Storage temperature | TS | -40 | +85 | °C | ||||
| Supply voltage | VCC | -0.5 | 3.6 | V | ||||
| Operating relative humidity | RH | 0 | 85 | % | ||||
*Exceeding any one of these values may destroy the device immediately.
建議操作條件
RECOMMENDED OPERATING CONDITIONS
| Parameter | Symbol | Min. | Typical | Max. | Unit | |||
| Operating case temperature | Tc | 0 | - | +70 | °C | |||
| Power supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | |||
| Power supply current | Icc | - | - | 1100 | mA | |||
| Power dissipation | PD | - | - | 3.5 | W | |||
| Aggregate bit rate | BRAVE | - | 41.25(40GE) | - | Gbps | |||
| Lane bit rate | BRLANE | - | 10.3125(40GE) | - | Gbps | |||
性能規范-電氣
PERFORMANCE SPECIFICATIONS - ELECTRICAL
| Parameter | Symbol | Min. | Typ. | Max | Unit | Notes | ||
Transmitter |
||||||||
| Single ended input voltage tolerance | - | -0.3 | - | 4 | V | Referred to TP1 signal common |
||
| Differential input amplitude | - | 150 | - | 1000 | mvp-p | - | ||
| AC common mode input voltage tolerance | - | 15 | - | - | mV | RMS | ||
| Input impedance(differential) | Zin | 85 | 100 | 115 | ohms | Rin > 100 kohms @ DC |
||
| TX Disable | Disable | VIH | 2 | - | Vcc+0.3 | V | - | |
| Enable | VIL | 0 | - | 0.8 | - | |||
| TX FAULT | Fault | VOH | 2.4 | - | Vcc+0.3 | V | - | |
| Normal | VOL | 0 | - | 0.8 | - | |||
| Receiver | ||||||||
| Single ended output voltage | - | -0.3 | - | 4 |
 s
|
Referred to ignal common |
||
| Differential output amplitude | - | 290 | - | 1000 | mvp-p | - | ||
| AC common mode voltage | - | - | - | 7.5 | mV | RMS | ||
| Termination mismatch at 1MHz | - | - | - | 5 | % | - | ||
| Output impedance(differential) | Zout | 85 | 100 | 115 | ohms | - | ||
| Output rise/fall time | tr/tf | 30 | - | - | ps | 10%~90% | ||
| RX_LOS | LOS | VOH | 2.4 | - | Vcc+0.3 | V | - | |
| Normal | VOL | 0 | - | 0.8 | V | - | ||
光電特性
OPTICAL AND ELECTRICAL CHARACTERISTICS
| Parameter |
  Symbol
|
Min. | Typical | Max. | Unit | |||
| SMF | L | - | 10 | - | km | |||
| Aggregate bit rate | BRAVE | - | 41.25 | - | Gbps | |||
| Per lane bit rate | BRLANE | - | 10.3125 | - | Gbps | |||
Transmitter |
||||||||
| Channels wavelength | λC | 1264.5 | 1271 | 1277.5 | nm | |||
 1284.5
|
1291 | 1297.5 | ||||||
| 1304.5 | 1311 | 1317.5 | ||||||
| 1324.5 | 1331 | 1337.5 | ||||||
| -20dB spectral width | ?λ | - | - | 1 | nm | |||
| Average launch power, each lane | Pout/lane | -3.5 | - | 2.3 | dBm | |||
| Extinction ratio | Er | 3.5 | - | - | dB | |||
| Output optical eye | IEEE 802.3ba-2010 Compliant | |||||||
| Receiver |
||||||||
| Channels wavelength | λC | 1264.5 | 1271 | 1277.5 | nm | |||
| 1284.5 | 1291 | 1297.5 | ||||||
| 1304.5 | 1311 | 1317.5 | ||||||
| 1324.5 | 1331 | 1337.5 | ||||||
| Damage threshold | - | 5.5 | - | - | dBm | |||
| Receiver sensitivity in OMA, each lane | Pmins | - | - | -12.5 | dBm | |||
| Maximum receive power, each lane | Pmax | 2.3 | - | - | dBm | |||
| Receiver reflectance | Rr | - | - | -26 | dB | |||
| Los de-assert | LOSD | - | - | -15 | dBm | |||
| Los assert | LOSA | -24 | - | - | dBm | |||
| Los hysteresis | - | 0.5 | - | - | dB | |||

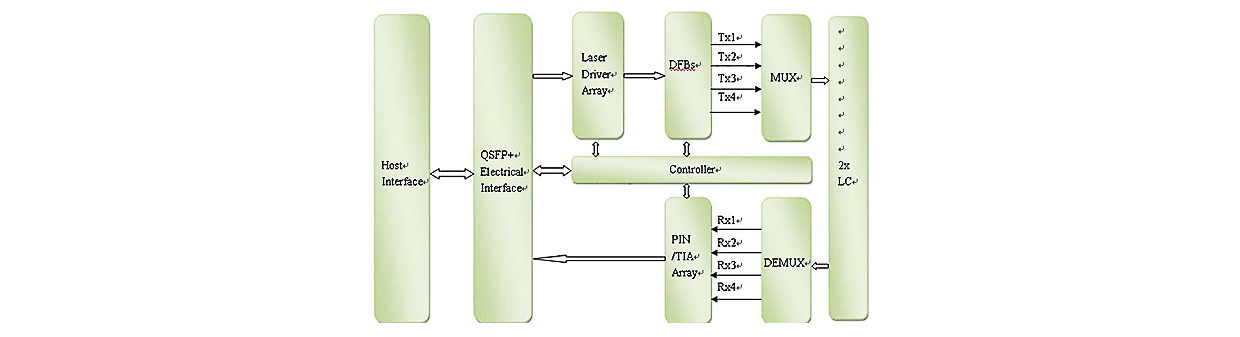

收發器功能說明
FUNCTIONAL DESCRIPTION OF TRANSCEIVER

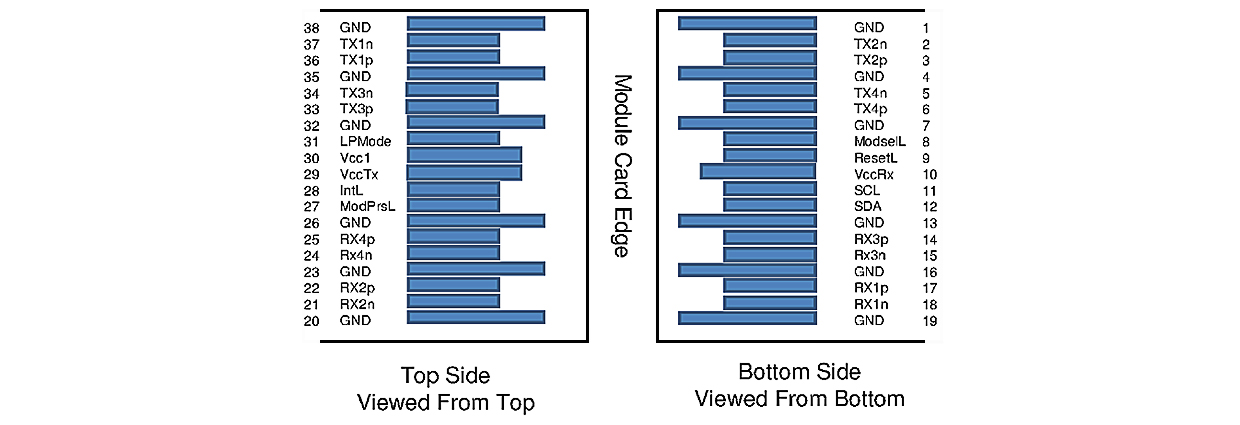

QSFP+收發器電氣焊盤布局
QSFP+ TRANSCEIVER ELECTRICAL PAD LAYOUT
引腳排列和定義
PIN ARRANGEMENT AND DEFINITION
| Pin | Logic | Symbol | Description | Plug Sequence | Notes | |||
| 1 | - | GND | Ground | 1 | 1 | |||
| 2 | CML-I | Tx2n | Transmitter Inverted Data Input | 3 | - | |||
| 3 | CML-I | Tx2p | Transmitter Non-Inverted Data Input | 3 | - | |||
| 4 | - | GND | Ground | 1 | 1 | |||
| 5 | CML-I | Tx4n | Transmitter Inverted Data Input | 3 | - | |||
| 6 | CML-I | Tx4p | Transmitter Non-Inverted Data Input | 3 | - | |||
| 7 | - | GND | Ground | 1 | 1 | |||
| 8 | LVTTL-I | ModSelL | Module Select | 3 | - | |||
| 9 | LVTTL-I | ResetL |
 Module Reset
|
3 | - | |||
| 10 | - | VccRx | +3.3V Power Supply Receiver | 2 | 2 | |||
| 11 | LVCMOS- I/O | SCL | 2-wire Serial Interface Clock | 3 | - | |||
| 12 | LVCMOS- I/O | SDA | 2-wire Serial Interface Data | 3 | - | |||
| 13 | - | GND | Ground | 1 | 1 | |||
| 14 | CML-O | Rx3p | Receiver Non-Inverted Data Output | 3 | - | |||
| 15 | CML-O | Rx3n | Receiver Inverted Data Output | 3 | - | |||
| 16 | - | GND | Ground | 1 | 1 | |||
| 17 | CML-O | Rx1p | Receiver Non-Inverted Data Output | 3 | - | |||
| 18 | CML-O | Rx1n | Receiver Inverted Data Output | 3 | - | |||
| 19 | - | GND | Ground | 1 | 1 | |||
| 20 | - | GND | Ground | 1 | 1 | |||
| 21 | CML-O | Rx2n | Receiver Inverted Data Output | 3 | - | |||
| 22 | CML-O | Rx2p | Receiver Non-Inverted Data Output | 3 | - | |||
| 23 | - | GND | Ground | 1 | 1 | |||
| 24 | CML-O | Rx4n | Receiver Inverted Data Output | 3 | - | |||
| 25 | CML-O | Rx4p | Receiver Non-Inverted Data Output | 3 | - | |||
| 26 | - | GND | Ground | 1 | 1 | |||
| 27 | LVTTL-O | ModPrsL | Module Present | 3 | - | |||
| 28 | LVTTL-O | IntL | Interrupt | 3 | - | |||
| 29 | - | VccTx | +3.3V Power supply transmitter | 2 | 2 | |||
| 30 | - | Vcc1 | +3.3V Power supply | 2 | 2 | |||
| 31 | LVTTL-I | LPMode | Low Power Mode | 3 | - | |||
| 32 | - | GND | Ground | 1 | 1 | |||
| 33 | CML-I | Tx3p | Transmitter Non-Inverted Data Input | 3 | - | |||
| 34 | CML-I | Tx3n | Transmitter Inverted Data Input | 3 | - | |||
| 35 | - | GND | Ground | 1 | 1 | |||
| 36 | CML-I | Tx1p | Transmitter Non-Inverted Data Input | 3 | - | |||
| 37 | CML-I | Tx1n | Transmitter Inverted Data Input | 3 | - | |||
| 38 | - | GND | Ground | 1 | 1 | |||
1: GND is the symbol for signal and supply (power) common for the QSFP+ module. All are common within the QSFP+ module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal-common ground plane.
2: Vcc Rx, Vcc1 and Vcc Tx are the receiver and transmitter power supplies and shall be applied concurrently. Requirements defined for the host side of the Host Edge Card Connector are listed in Table 6. Recommended host board power supply filtering is shown in Figures 3 and 4. Vcc Rx Vcc1 and Vcc Tx may be internally connected within the QSFP+ Module in any combination. The connector pins are each rated for a maximum current of 500mA.

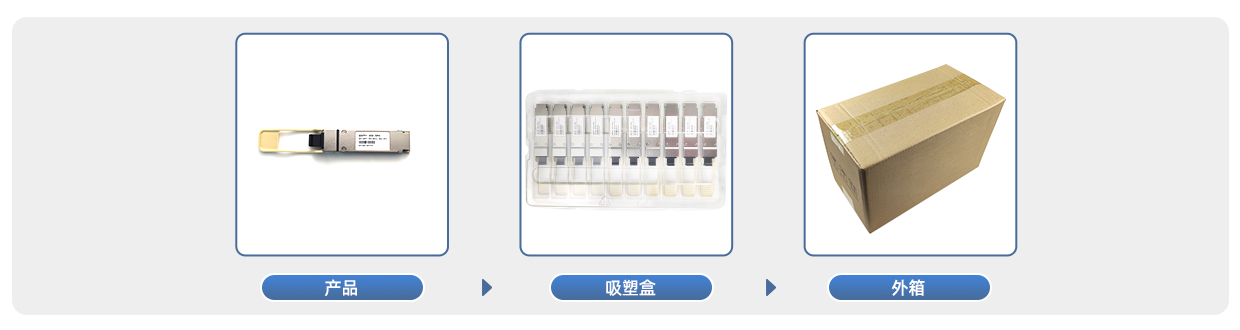

產品包裝
