產品型號
|
JFTSM-QSFP+40-85-04(ESR4)-MPO8/12
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
QSFP+
|
光口類型
|
MPO 8C/12C
|
|
最高總速率
|
40G
|
每通道速率
|
10.3125Gbps
|
|
OM3最大傳輸距離
|
300m
|
OM4最大傳輸距離
|
400m
|
|
工作波長
|
850nm
|
工作電壓
|
3.3V
|
|
光纖型號
|
MMF
|
纖芯尺寸
|
50/125
|
|
發射器類型
|
VCSEL
|
接收器類型
|
PIN
|
|
發射功率
|
-7.6~2.4dbm
|
接收靈敏度
|
-9.5dbm
|
|
數字診斷(DDM)
|
YES
|
接收過載
|
2.4dBm
|
|
功耗
|
< 1.5W
|
支持協議
|
IEEE 802.3ba
IEEE 802.3ae
QSFP+ MSA SFF-8436
|
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
JFOPT嘉富(fu)(fu)持續(xu)投入光(guang)模(mo)塊(kuai)(kuai)生(sheng)產(chan)(chan)(chan)領域，產(chan)(chan)(chan)品覆(fu)蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等(deng)全系列(lie)光(guang)模(mo)塊(kuai)(kuai)。同(tong)時為下游同(tong)行提(ti)供TOSA、ROSA、BOSA等(deng)光(guang)器件半成品解決方案。JFOPT嘉富(fu)(fu)生(sheng)產(chan)(chan)(chan)線(xian)具備日(ri)產(chan)(chan)(chan)量一萬(wan)只光(guang)模(mo)塊(kuai)(kuai)、兩萬(wan)只光(guang)器件的能(neng)力(li)。此外，JFOPT嘉富(fu)(fu)光(guang)模(mo)塊(kuai)(kuai)擁(yong)有業界領先的耐高溫(wen)、抗干擾特性(xing)，廣泛應用(yong)于計算中心、運營商、交通安防、電力(li)設施等(deng)行業領域。

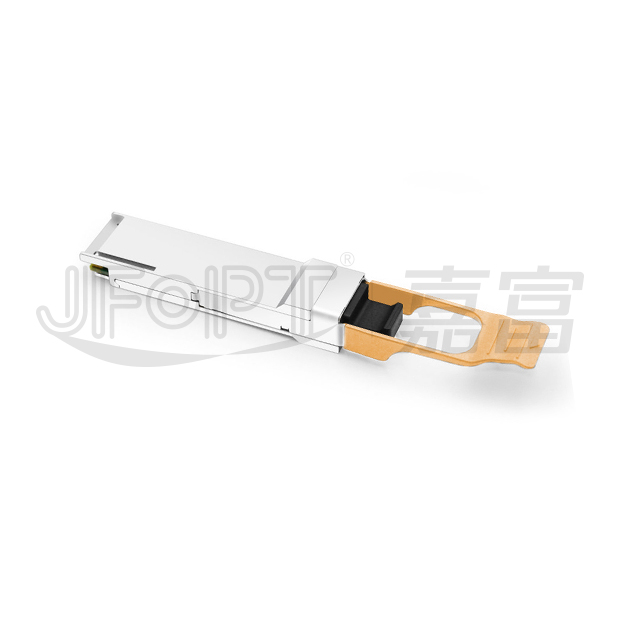

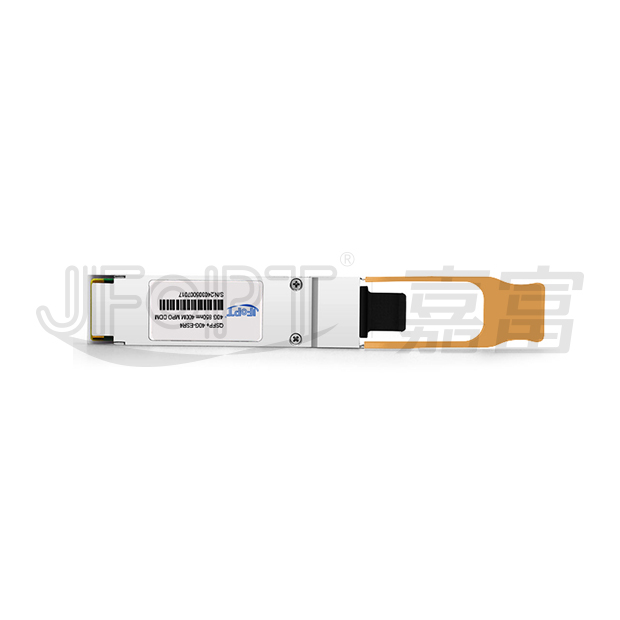

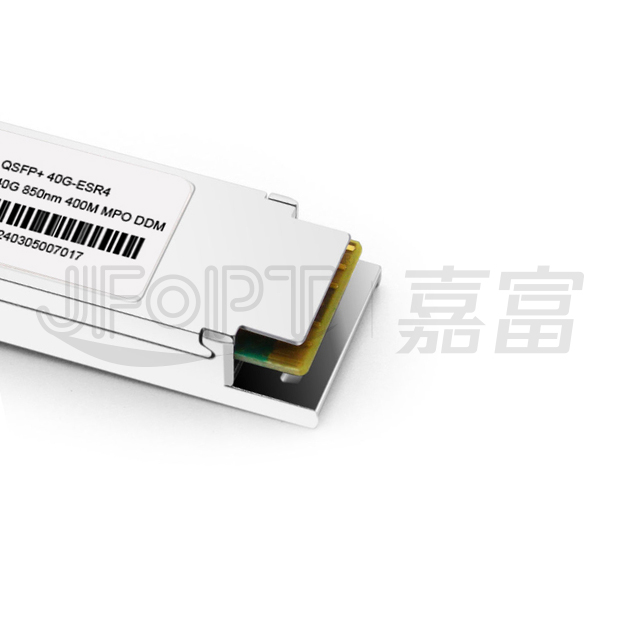

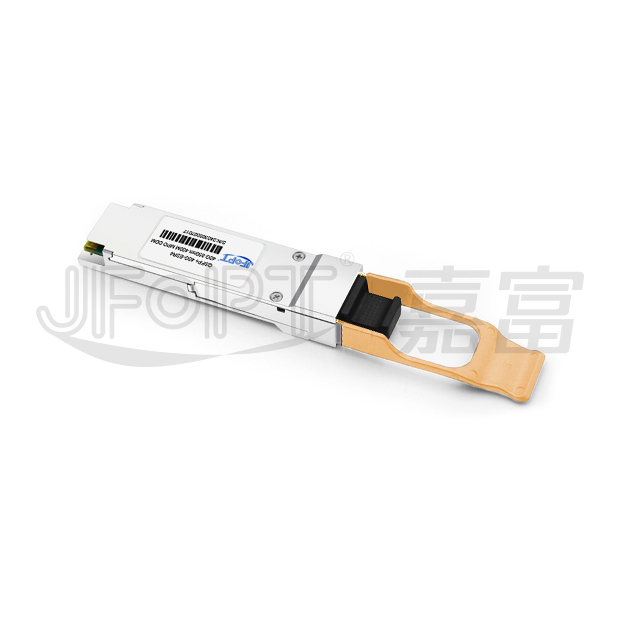

JFOPT QSFP+ 40G 850nm 400米(mi)(mi) ESR4 MPO 8/12光(guang)模(mo)(mo)塊(kuai)專為(wei)40GBASE以太(tai)網應用設(she)計，通(tong)過(guo)MTP/MPO-12連接器(qi)支(zhi)持850nm波長在多模(mo)(mo)光(guang)纖（MMF）上實(shi)現長達400米(mi)(mi)的(de)傳輸。該模(mo)(mo)塊(kuai)符合(he)QSFP+ MSA、IEEE 802.3ba 40GBASE-SR4及(ji)(ji)IEEE 802.3ae 10GBASE-SR標準。搭載可(ke)通(tong)過(guo)I2C接口訪問的(de)數(shu)字診斷功能，實(shi)時(shi)監控運行參(can)數(shu)。憑(ping)借(jie)熱插拔和易安裝特性，此光(guang)模(mo)(mo)塊(kuai)成為(wei)數(shu)據中(zhong)心(xin)、高性能計算網絡以及(ji)(ji)企業(ye)核心(xin)及(ji)(ji)匯聚(ju)層的(de)理(li)想解決(jue)方案。
| Compliant to the IEEE 802.3ba(40GBASE-SR4) | Support interoperability with IEEE 802.3ae, 10GBASE-SR modules of various form factors such as SFP+, XFP, X2 | ||||||||
| Compliant to the QSFP+ MSA SFF-8436 Specification | Up to 300m on OM3 MMF or 400m on OM4 MMF | ||||||||
| VCSEL array transmitter and PIN array receiver | Single 3.3V Power Supply and Power dissipation < 1.5W | ||||||||
| Operates at 10.3125Gbps per channel | Operating Case Temperature: 0C~+70C | ||||||||

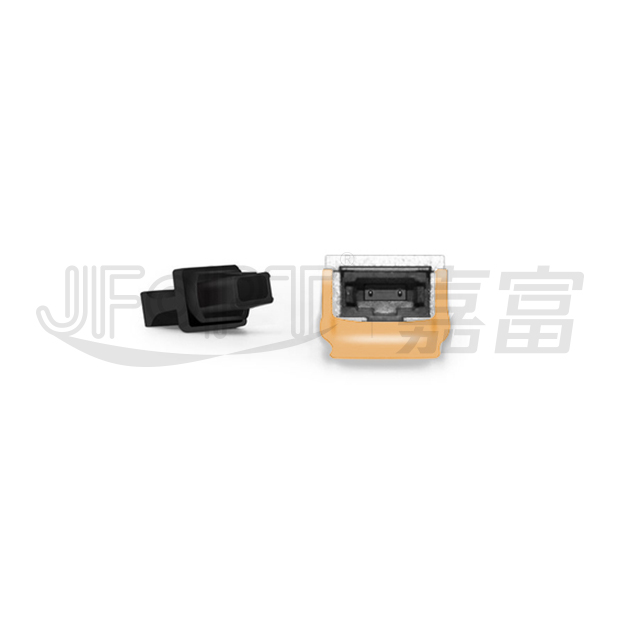

| I2C interface with integrated Digital Diagnostic Monitoring | Utilizes a standard 12/8 lane optical fiber with MPO connector | ||||||||
| Safety Certification: TUV/UL/FDA |
| Parameter | Symbol | Min. | Max. | Unit | ||||
| Storage Temperature | TS | -40 | +85 | °C | ||||
| Supply Voltage | VCC | -0.5 | 3.6 | V | ||||
| Operating Relative Humidity | RH | 0 | 85 | % | ||||
| *Exceeding any one of these values may destroy the device immediately. |
||||||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | |||
| Operating Case Temperature | Tc | JFTSM-QSFP+40-85-04(ESR4)-MPO8/12 | 0 | +70 | °C | |||
| Power Supply Voltage | Vcc | 3.135 | 3.3 | 3.465 | V | |||
| Power Supply Current | Icc | 450 | mA | |||||
| Lane Bit Rate | BRLANE | 10.3125 | Gbps | |||||
| Parameter |
  Symbol
|
Min. | Typical | Max. | Unit | |||
| OM3 MMF | L | 0.5 | 300 | m | ||||
| Per Lane Bit Rate | BRLANE | 10.3125 | Gbps | |||||
Transmitter |
||||||||
| Center Wavelength | λC | 840 | 850 | 860 | nm | |||
| RMS Spectral Width | RMS | - | 0.65 | nm | ||||
| Average Launch Power, Each Lane | Pout/lane | -7.6 | 2.4 | dBm | ||||
| Extinction Ratio | ER | 3 | dB | |||||
| Average Launch Power of OFF, Each Lane | -30 | dBm | ||||||
| Output Optical Eye | IEEE 802.3ba-2010 Compliant | |||||||
Receiver |
||||||||
| Center Wavelength | λC | 840 | 850 | 860 | nm | |||
| Damage Threshold | 3.4 | dB | ||||||
|
Receiver Sensitivity In Each Lane
|

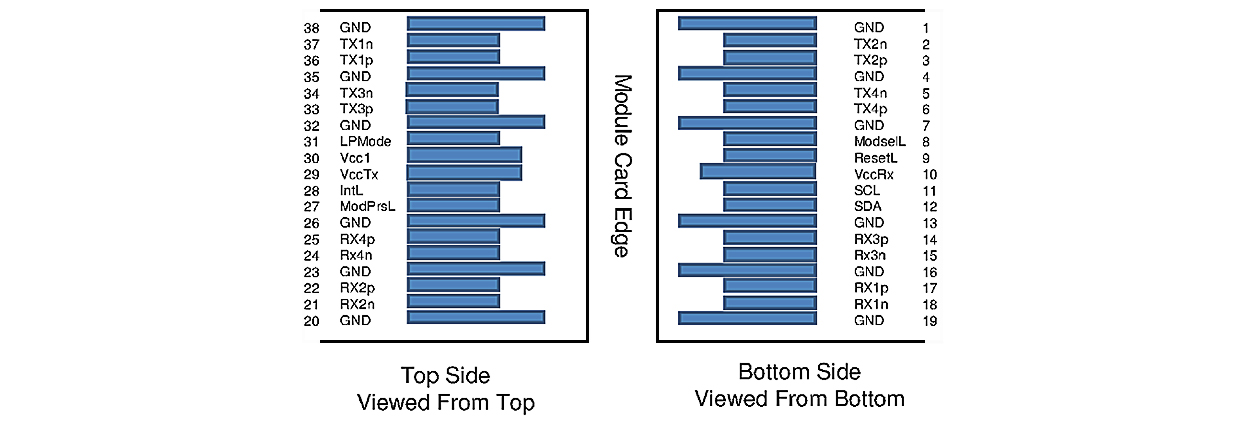

Pmin | -9.5 | dBm | |||||
| LOS De-Assert, OMA | LOSD | -12 | dBm | |||||
| LOS Assert | LOSA | -30 | dBm | |||||
| LOS Hysteresis | 0.5 | dB | ||||||
| Pin | Logic | Symbol | Description | Plug Sequence |
Notes | |||
| 1 | GND | Ground | 1 | 1 | ||||
| 2 | CML-I | Tx2n | Transmitter Inverted Data Input | 3 | ||||
| 3 | CML-I | Tx2p | Transmitter Non-Inverted Data Input | 3 | ||||
| 4 | GND | Ground | 1 | 1 | ||||
| 5 | CML-I | Tx4n | Transmitter Inverted Data Input | 3 | ||||
| 6 | CML-I | Tx4p | Transmitter Non-Inverted Data Input | 3 | ||||
| 7 | GND | Ground | 1 | 1 | ||||
| 8 | LVTTL-I | ModSelL | Module Select | 3 | ||||
| 9 | LVTTL-I | ResetL | Module Reset | 3 | 3 | |||
| 10 | VccRx | +3.3V Power Supply Receiver | 2 | 2 | ||||
| 11 | LVCMOS- I/O | SCL | 2-wire Serial Interface Clock | 3 | ||||
| 12 | LVCMOS- I/O | SDA | 2-wire Serial Interface Data | 3 | ||||
| 13 | GND | Ground | 1 | 1 | ||||
| 14 | CML-O | Rx3p | Receiver Non-Inverted Data Output | 3 | ||||
| 15 | CML-O | Rx3n | Receiver Inverted Data Output | 3 | ||||
| 16 | GND | Ground | 1 | 1 | ||||
| 17 | CML-O | Rx1p | Receiver Non-Inverted Data Output | 3 | ||||
| 18 | CML-O | Rx1n | Receiver Inverted Data Output | 3 | ||||
| 19 | GND | Ground | 1 | 1 | ||||
| 20 | GND | Ground | 1 | 1 | ||||
| 21 | CML-O | Rx2n | Receiver Inverted Data Output | 3 | ||||
| 22 | CML-O | Rx2p | Receiver Non-Inverted Data Output | 3 | ||||
| 23 | GND | Ground | 1 | 1 | ||||
| 24 | CML-O | Rx4n | Receiver Inverted Data Output | 3 | ||||
| 25 | CML-O | Rx4p | Receiver Non-Inverted Data Output | 3 | ||||
| 26 | GND | Ground | 1 | 1 | ||||
| 27 | LVTTL-O | ModPrsL | Module Present | 3 | ||||
| 28 | LVTTL-O | IntL | Interrupt | 3 | ||||
| 29 | VccTx | +3.3V Power supply transmitter | 2 | 2 | ||||
| 30 | Vcc1 | +3.3V Power supply | 2 | 2 | ||||
| 31 | LVTTL-I | LPMode | Low Power Mode | 3 | ||||
| 32 | GND | Ground | 1 | 1 | ||||
| 33 | CML-I | Tx3p | Transmitter Non-Inverted Data Input | 3 | ||||
| 34 | CML-I | Tx3n | Transmitter Inverted Data Input | 3 | ||||
| 35 | GND | Ground | 1 | 1 | ||||
| 36 | CML-I | Tx1p | Transmitter Non-Inverted Data Input | 3 | ||||
| 37 | CML-I | Tx1n | Transmitter Inverted Data Input | 3 | ||||
| 38 | GND | Ground | 1 | 1 | ||||
1: GND is the symbol for signal and supply (power) common for the QSFP+ module. All are common within the QSFP+ module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal-common ground plane.
2: Vcc Rx, Vcc1 and Vcc Tx are the receiver and transmitter power supplies and shall be applied concurrently. Vcc Rx Vcc1 and Vcc Tx may be internally connected within the QSFP+ Module in any combination. The connector pins are each rated for a maximum current of 500mA.
