產品型號
|
JFTSM-QSFP+40-85-015(SR)-MPO8/12
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
QSFP+
|
光口類型
|
MPO 8C/12C
|
|
最高總速率
|
40G
|
每通道速率
|
10.3125Gbps
|
|
OM3最大傳輸距離
|
100m
|
OM4最大傳輸距離
|
150m
|
|
工作波長
|
850nm
|
工作電壓
|
3.3V
|
|
光纖型號
|
MMF
|
纖芯尺寸
|
50/125
|
|
發射器類型
|
VCSEL
|
接收器類型
|
PIN
|
|
發射功率
|
-7.6~2.4dbm
|
接收靈敏度
|
-5.4dbm
|
|
數字診斷(DDM)
|
YES
|
接收過載
|
2.4dBm
|
|
功耗
|
< 1.5W
|
支持協議
|
IEEE 802.3ba
IEEE 802.3ae
QSFP+ MSA SFF-8436
|
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
JFOPT嘉富(fu)持續投入(ru)光模(mo)塊(kuai)生(sheng)產(chan)領(ling)(ling)域，產(chan)品覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等(deng)全系列光模(mo)塊(kuai)。同時為(wei)下游同行提(ti)供TOSA、ROSA、BOSA等(deng)光器件半成(cheng)品解決(jue)方案。JFOPT嘉富(fu)生(sheng)產(chan)線具備日產(chan)量(liang)一萬(wan)只(zhi)光模(mo)塊(kuai)、兩(liang)萬(wan)只(zhi)光器件的能(neng)力。此外，JFOPT嘉富(fu)光模(mo)塊(kuai)擁(yong)有業(ye)界領(ling)(ling)先的耐高溫、抗干(gan)擾(rao)特性，廣泛應用于計算中心、運營商、交通安防(fang)、電力設(she)施等(deng)行業(ye)領(ling)(ling)域。

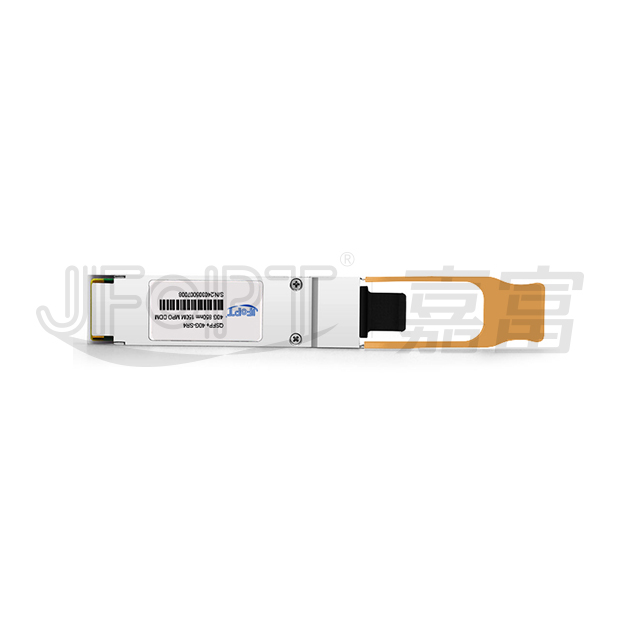

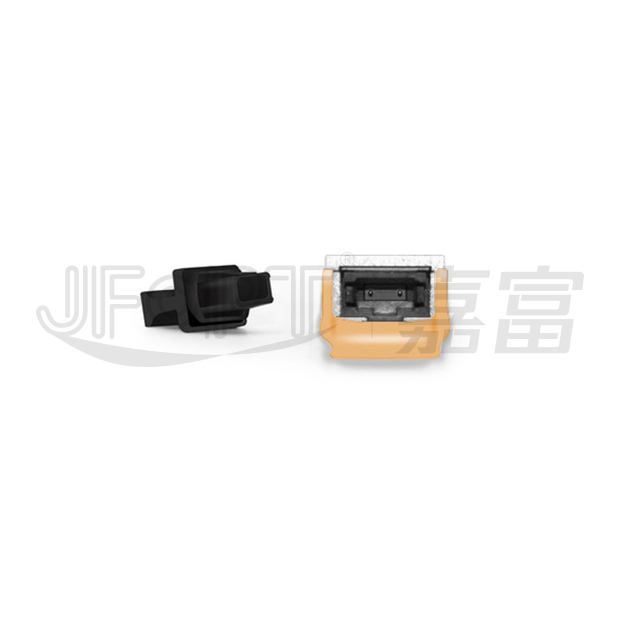

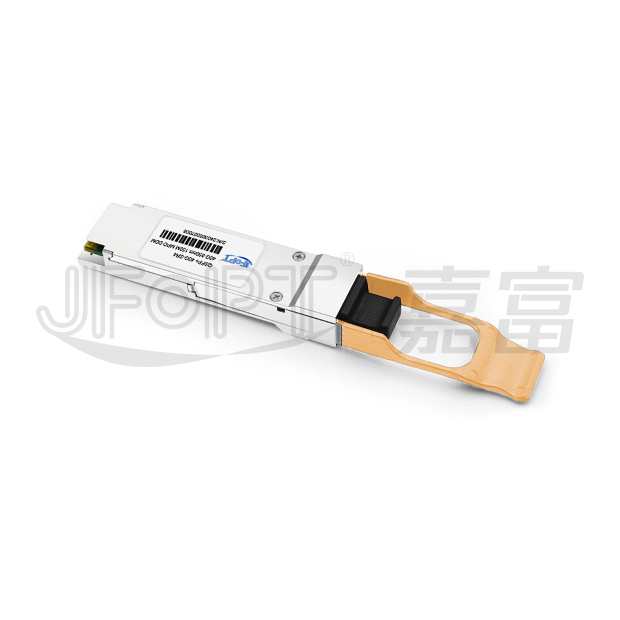

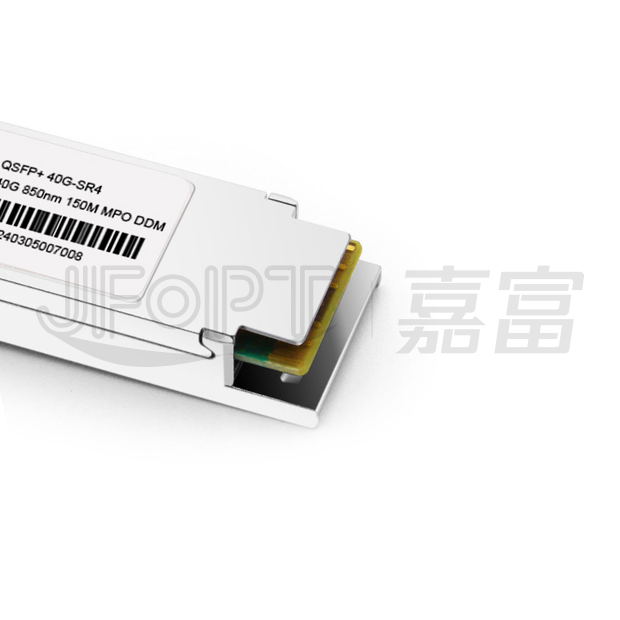

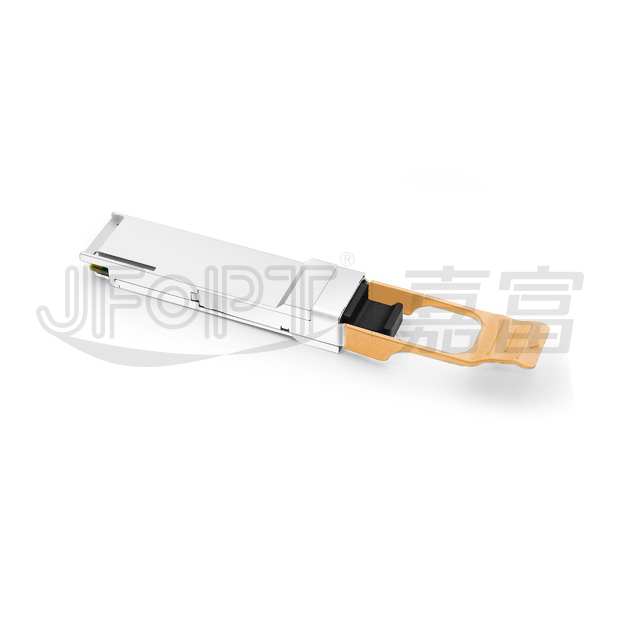

JFOPT QSFP+ 40G 850nm 150米 SR MPO8/12光模(mo)塊(kuai)配備(bei)12芯MTP/MPO公(gong)頭連接器(qi)，支持通過OM4多模(mo)光纖傳(chuan)輸(shu)150米，通過OM3多模(mo)光纖傳(chuan)輸(shu)100米。該模(mo)塊(kuai)符(fu)合QSFP+ MSA標(biao)準(zhun)和(he)(he)IEEE 802.3ba 40GBASE-SR4規范，并(bing)支持4x10GBASE-SR分(fen)路傳(chuan)輸(shu)。在完全(quan)兼容標(biao)準(zhun)40GBASE-SR4接口的同時，還基(ji)于QSFP+ MSA規范通過I2C接口提供(gong)數字診斷功(gong)能，可實時獲取(qu)運行參數。其熱插拔和(he)(he)易安裝特性使其成為園區網、數據中心(xin)、云部署、高性能計(ji)算（HPC）環境以(yi)及交換(huan)機(ji)/路由器(qi)/服務器(qi)/傳(chuan)輸(shu)設備(bei)間互連等廣泛應(ying)用的理想選(xuan)擇。
| Compliant to the IEEE 802.3ba(40GBASE-SR4) | Support interoperability with IEEE 802.3ae，10GBASE-SR modules of various form factors such as SFP+, XFP, X21 | ||||||||
| Compliant to the QSFP+ MSA SFF-8436 Specification | Up to 100m on OM3 and 150m on OM4 MMF | ||||||||
| VCSEL array transmitter and PIN array receiver | Single 3.3V Power Supply and Power dissipation < 1.5W | ||||||||
| Operates at 10.3125Gbps per channel | Operating Case Temperature: 0℃~+70℃ | ||||||||
| I2C interface with integrated Digital Diagnostic Monitoring | Utilizes a standard 12/8 lane optical fiber with MPO connector | ||||||||
| Safety Certification: TUV/UL/FDA |
| Parameter | Symbol | Min. | Max. | Unit | ||||
| Storage Temperature | TS | -40 | +85 | °C | ||||
| Supply Voltage | VCC | -0.5 | 3.6 | V | ||||
| Operating Relative Humidity | RH | 5 | 85 | % | ||||
| *Exceeding any one of these values may destroy the device immediately. |
||||||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | |||
| Operating Case Temperature | Tc | JFTSM-QSFP+40-85-015(SR)-MPO8/12 | 0 | +70 | °C | |||
| Power Supply Voltage | Vcc | 3.135 | 3.3 | 3.465 | V | |||
| Power Supply Current | Icc | 450 | mA | |||||
| Aggregate Bit Rate | BRAVE | 41.25 | Gbps | |||||
| Lane Bit Rate | BRLANE | 10.3125 | Gbps | |||||
| Parameter |
  Symbol
|
Min. | Typical | Max. | Unit | |||
| OM3 MMF | L | 0.5 | - | 100 | m | |||
| Aggregate Bit Rate | BRAVE | - | 40 | - | Gbps | |||
| Per Lane Bit Rate | BRLANE | - | 10.3125 | - | Gbps | |||
Transmitter |
||||||||
| Center Wavelength | λC | 840 | 850 | 860 | nm | |||
| RMS Spectral Width | RMS | - | - | 0.65 | nm | |||
| Average Launch Power, Each Lane | Pout/lane | -7.6 | - | 2.4 | dBm | |||
| Transmit OMA, Per Lane | TX_OMA/lane | -5.6 | - | 3 | dBm | |||
| Difference in Launch Power Between Any Two Lanes(OMA) | - | - | 4 | dB | ||||
| Peak Power, Each Lane | - | - | 4 | dBm | ||||
| Transmitter and Dispersion Penalty,Each Lane | TDP/lane | - | - | 3.5 | dB | |||
| Extinction Ratio | ER | 3 | - | - | dB | |||
| Optical Return Loss Tolerance | - | - | 12 | dB | ||||
| Average Launch Power of OFF, Each Lane | - | - | -30 | dBm | ||||
| Output Optical Eye | IEEE 802.3ba-2010 Compliant | |||||||
Receiver |
||||||||
| Center Wavelength | λC | 840 | 850 | 860 | nm | |||
| Damage Threshold | 3.4 | - | - | dB | ||||
| Stressed Receiver Sensitivity in OMA,Each Lane | Pmins | - | - | -5.4 | dBm | |||
| Maximum Receive Power, Each Lane | Pmax | - | - | 2.4 | dBm | |||
| Average Power, Each Lane | RX/lane | -9.5 | - | +2.4 | dBm | |||
| LOS De-Assert, OMA | LOSD | - | - | -7.5 | dBm | |||
| Receiver Reflectance | Rr | - | - | -12 | dB | |||
| LOS Assert | LOSA | -30 | - | - | dBm | |||
| LOS Hysteresis | 0.5 | - | - | dB | ||||

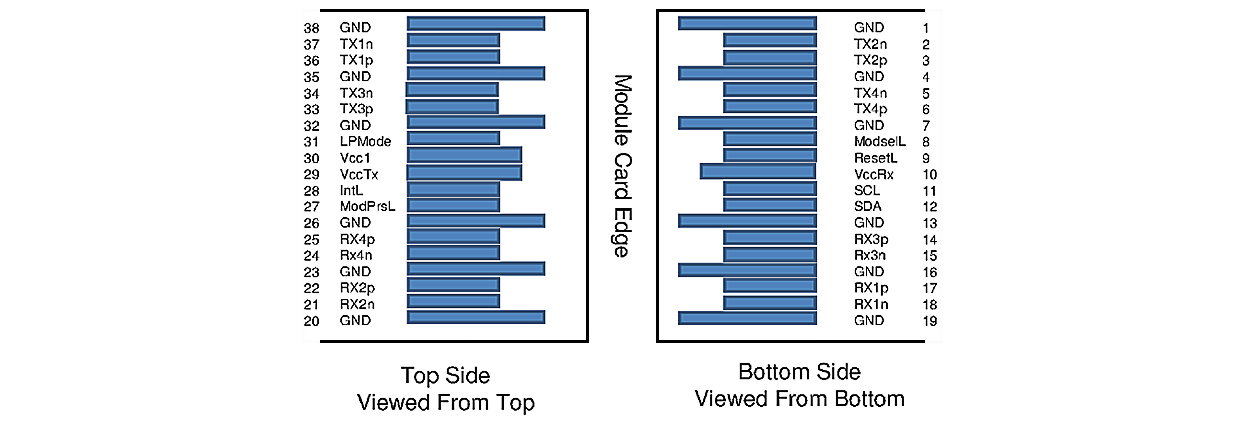

| Pin | Logic | Symbol | Description | Plug Sequence |
Notes | |||
| 1 | GND | Ground | 1 | 1 | ||||
| 2 | CML-I | Tx2n | Transmitter Inverted Data Input | 3 | ||||
| 3 | CML-I | Tx2p | Transmitter Non-Inverted Data Input | 3 | ||||
| 4 | GND | Ground | 1 | 1 | ||||
| 5 | CML-I | Tx4n | Transmitter Inverted Data Input | 3 | ||||
| 6 | CML-I | Tx4p | Transmitter Non-Inverted Data Input | 3 | ||||
| 7 | GND | Ground | 1 | 1 | ||||
| 8 | LVTTL-I | ModSelL | Module Select | 3 | ||||
| 9 | LVTTL-I | ResetL | Module Reset | 3 | ||||
| 10 | VccRx | +3.3V Power Supply Receiver | 2 | 2 | ||||
| 11 | LVCMOS- I/O | SCL | 2-wire Serial Interface Clock | 3 | ||||
| 12 | LVCMOS- I/O | SDA | 2-wire Serial Interface Data | 3 | ||||
| 13 | GND | Ground | 1 | 1 | ||||
| 14 | CML-O | Rx3p | Receiver Non-Inverted Data Output | 3 | ||||
| 15 | CML-O | Rx3n | Receiver Inverted Data Output | 3 | ||||
| 16 | GND | Ground | 1 | 1 | ||||
| 17 | CML-O | Rx1p | Receiver Non-Inverted Data Output | 3 | ||||
| 18 | CML-O | Rx1n | Receiver Inverted Data Output | 3 | ||||
| 19 | GND | Ground | 1 | 1 | ||||
| 20 | GND | Ground | 1 | 1 | ||||
| 21 | CML-O | Rx2n | Receiver Inverted Data Output | 3 | ||||
| 22 | CML-O | Rx2p | Receiver Non-Inverted Data Output | 3 | ||||
| 23 | GND | Ground | 1 | 1 | ||||
| 24 | CML-O | Rx4n | Receiver Inverted Data Output | 3 | ||||
| 25 | CML-O | Rx4p | Receiver Non-Inverted Data Output | 3 | ||||
| 26 | GND | Ground | 1 | 1 | ||||
| 27 | LVTTL-O | ModPrsL | Module Present | 3 | ||||
| 28 | LVTTL-O | IntL | Interrupt | 3 | ||||
| 29 | VccTx | +3.3V Power supply transmitter | 2 | 2 | ||||
| 30 | Vcc1 | +3.3V Power supply | 2 | 2 | ||||
| 31 | LVTTL-I | LPMode | Low Power Mode | 3 | ||||
| 32 | GND | Ground | 1 | 1 | ||||
| 33 | CML-I | Tx3p | Transmitter Non-Inverted Data Input | 3 | ||||
| 34 | CML-I | Tx3n | Transmitter Inverted Data Input | 3 | ||||
| 35 | GND | Ground | 1 | 1 | ||||
| 36 | CML-I | Tx1p | Transmitter Non-Inverted Data Input | 3 | ||||
| 37 | CML-I | Tx1n | Transmitter Inverted Data Input | 3 | ||||
| 38 | GND | Ground | 1 | 1 | ||||
1: GND is the symbol for signal and supply (power) common for the QSFP+ module. All are common within the QSFP+ module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal-common ground plane.
2: Vcc Rx, Vcc1 and Vcc Tx are the receiver and transmitter power supplies and shall be applied concurrently. Vcc Rx Vcc1 and Vcc Tx may be internally connected within the QSFP+ Module in any combination. The connector pins are each rated for a maximum current of 500mA.
