產品型號
|
JFTSM-SFP28-25-13-20(LR)-LCD
|
工廠品牌
|
JFOPT嘉富
|
封裝形式
|
SFP28
|
光口類型
|
雙聯LC
|
最高總速率
|
25.78G
|
每通道速率
|
10.31Gbps
|
最大傳輸距離
|
20km
|
||
工作波長
|
1310nm
|
工作電壓
|
3.3V
|
光纖型號
|
SMF
|
纖芯尺寸
|
9/125
|
發射器類型
|
DFB-LD
|
接收器類型
|
CDR
|
發射功率
|
-7~2dbm
|
接收靈敏度
|
<9.5dBm
|
數字診斷
|
YES
|
接收過載
|
2dBm
|
功耗
|
<1.2W
|
支持協議
|
SFF-8402
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度(商業級)
|
-40℃~+85℃
|
工作溫度(工業級)
|
-40℃~+85℃
|
儲存溫度(工業級)
|
-40℃~+85℃
|
JFOPT嘉富(fu)持續(xu)投入光(guang)(guang)模(mo)塊(kuai)(kuai)生產領域,產品覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等(deng)全系(xi)列(lie)光(guang)(guang)模(mo)塊(kuai)(kuai)。同時為下游(you)同行(xing)提供(gong)TOSA、ROSA、BOSA等(deng)光(guang)(guang)器件半成品解決方(fang)案。JFOPT嘉富(fu)生產線具備日(ri)產量一萬只光(guang)(guang)模(mo)塊(kuai)(kuai)、兩萬只光(guang)(guang)器件的(de)能力。此外,JFOPT嘉富(fu)光(guang)(guang)模(mo)塊(kuai)(kuai)擁有(you)業(ye)界領先的(de)耐高溫、抗干擾特性,廣泛應用于計算中心、運(yun)營商(shang)、交通安防、電力設(she)施等(deng)行(xing)業(ye)領域。
JFOPT SFP28 25G 1310nm 20km LR LC DX光(guang)模(mo)塊是一款專為(wei)(wei)雙工光(guang)通信(xin)設計的(de)高性(xing)(xing)能解決方(fang)案,支持25.78Gbps數(shu)據傳輸速率,采用SFP+ 20-pin接(jie)口實現熱插拔功能,并(bing)通過(guo)I2C接(jie)口提供(gong)數(shu)字診斷監控;其內置雙時鐘(zhong)數(shu)據恢復(CDR)電路顯著增強(qiang)信(xin)號完整性(xing)(xing),該單模(mo)光(guang)纖收發器(qi)標稱工作波長為(wei)(wei)1310nm——發射(she)端(duan)集(ji)成(cheng)符合Class 1激(ji)光(guang)安全(quan)標準(IEC 60825)的(de)高性(xing)(xing)能1310nm DFB激(ji)光(guang)器(qi),接(jie)收端(duan)則(ze)搭載光(guang)學封裝集(ji)成(cheng)的(de)銦鎵砷探測器(qi)前(qian)置放大(da)器(qi)(IDP)并(bing)配合限幅(fu)后置放大(da)器(qi)芯片,確(que)保(bao)可靠高效的(de)運行(xing)性(xing)(xing)能。
Single +3.3V power supply | Hot-pluggable | ||||||||
Built-in dual CDR | Support 25.78 Gb/s data links | ||||||||
Up to 20km on 9/125um SMF | Operating case temperature:-40~+85 | ||||||||
Very low EMI and excellent ESD protection | Power dissipation < 1.2W |
25GbE | CPRI | ||||||||
Other optical links |
Parameter | Symbol | Unit | Min. | Max. | |||||
Storage temperature range | Ts | °C | -45 | 85 | |||||
Relative humidity | RH | % | 0 | 95 | |||||
Input voltage | Vcc | V | 0 | 4 |
Parameter | Symbol | Unit | Min. | Typ. | Max. | ||||
Operating case temperature range | Tc | ℃ | -45 | - | 85 | ||||
Supply voltage | Vcc | V | 3.135 | 3.3 | 3.465 | ||||
Bit rate | BR | Gb/s | - | 25.78125 | - | ||||
Max supported link length | L | km | - | - | 20 |
Parameter | Symbol | Unit | Min. | Typ. | Max. | Note | |||
Power dissipation | - | W | - | - | 1.2 | - | |||
Transmitter |
|||||||||
Input differential impedance | RIN | Ω | - | 100 | - | - | |||
Single ended data input swing | VIN | mVp-p | 90 | - | 450 | - | |||
Tx_disable input voltage – low | VIL | V | -0.3 | - | 0.8 | - | |||
Tx_disable input voltage – high | VIH | V | 2.0 | - | Vcc+0.3 | - | |||
Tx_fault output voltage – low | VOL | V | -0.3 | - | 0.8 | - | |||
Tx_fault output voltage – high | VOH | V | 2.0 | - | Vcc+0.3 | - | |||
Receiver |
|||||||||
Output impedance (Differential) | Zout | V | - | 100 | - | - | |||
Rx_LOS output voltage - low | VOL | V | -0.3 | - | 0.8 | - | |||
Rx_LOS output voltage- high | VOH | V | 0.2 | - | Vcc+0.3 | - |
Parameter | Symbol | Unit | Min. | Typ. | Max. | Note | |||
Transmitter |
|||||||||
Center wavelength | λ | nm | 1295 | 1310 | 1325 | - | |||
Data rate | B | Gb/s | - | 25.78 | - | - | |||
Output spectral width | λ(-20dB) | nm | - | - | 1 | - | |||
Optical output power | Po | dBm | -7 | - | 2 | - | |||
Extinction ratio | ER | dB | 3.5 | - | - | - | |||
Transmitterand dispersion penalty | TDP | dB | - | - | 3.2 | - | |||
Receiver |
|||||||||
Operating wavelength | λ | nm | 1260 | - | 1355 | - | |||
Overload | - | dBm | 2 | - | - | - | |||
Receiver sensitivity (OMA) | POMA | dBm | - | - | -11.3 | - | |||
Optical return loss | ORL | dB | - | - | -26 | - | |||
Signal detect threshold-de-assert | SD | dBm | - | - | -14 | - | |||
LOS hysteresis | - | dB | 0.5 | - | - | - |

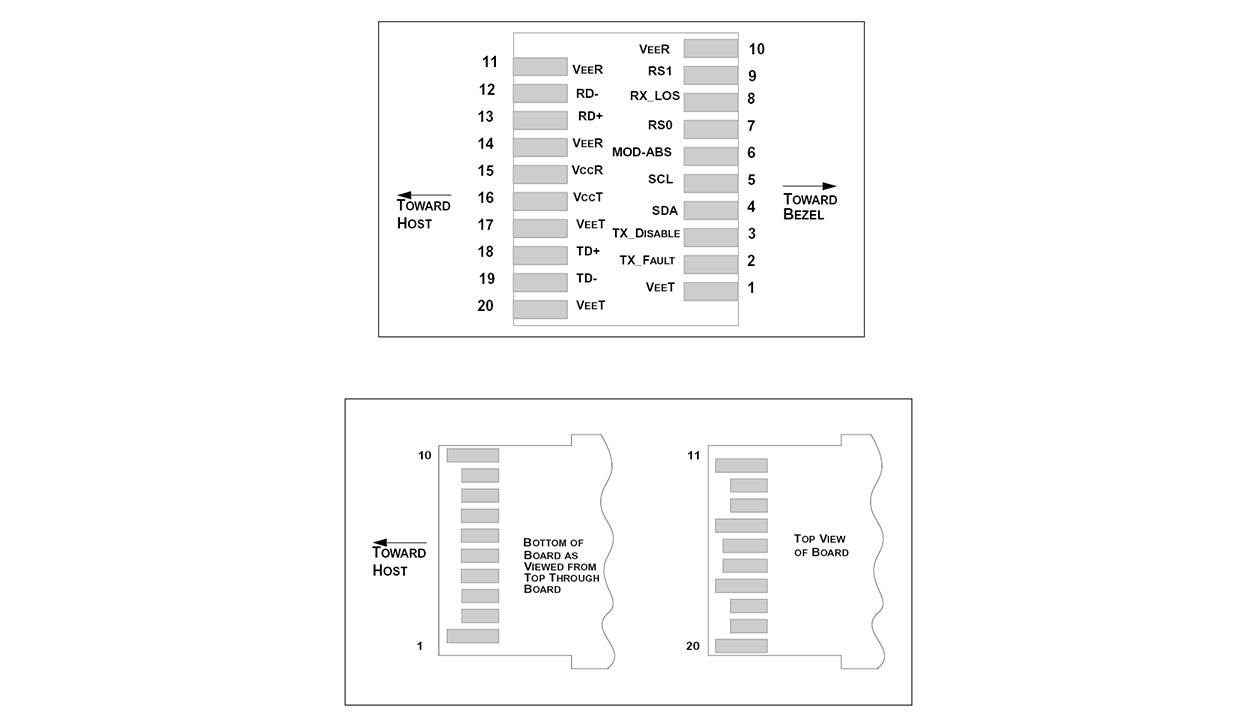

Pin No. | Symbol | Logic | Description | ||||||
1,20 | VEET | - | Transmitter ground(common with receiver ground) | ||||||
2 | TX fault | LVTTL output | Transmitter fault. low normal operation, high fault indication | ||||||
3 | TX disable | LVTTL input | Transmitter disable. laser output disabled on high or open | ||||||
4 | SDA | LVTTL input/output | Module definition 2.data line for serial ID | ||||||
5 | SCL | LVTTL input/output | Module definition 1.clock line for serial ID | ||||||
6 | MOD-ABS | - | Module definition 0.grounded within the module | ||||||
7 | RS0 | LVTTL input | Rate select 0, optionally controls SFP28 module receiver. LVTTL logic. | ||||||
8 | LOS | LVTTL output | Loss of signal indication. Logic 0 indicates normal operation. | ||||||
9 | RS1 | LVTTL input | Rate select 1, optionally controls SFP28 module transmitter. LVTTL logic. | ||||||
10,11,14 | VEER | - | Receiver ground(common with transmitter ground) | ||||||
12 | RD- | CML output | Receiver inverted DATA out.AC coupled | ||||||
13 | RD+ | CML output | Receiver non-inverted DATA out.AC coupled | ||||||
15 | VCCR | - | Receiver power supply | ||||||
16 | VCCT | - | Transmitter power supply | ||||||
18 | TD+ | CML input | Transmitter non-inverted DATA in.AC coupled | ||||||
19 | TD- | CML input | Transmitter inverted DATA in.AC coupled |
