產品型號
|
JFTSM-SFP+10-50DW-40(ER)-LCD
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
SFP+
|
光口類型
|
LC Duplex
|
|
最高總速率
|
11.3Gbps
|
每通道速率
|
10.3125Gbps
|
|
最大傳輸距離
|
40km
|
||
|
工作波長
|
1529.16~1567.13nm（Tunable）
|
工作電壓
|
3.3V
|
|
光纖型號
|
SMF
|
纖芯尺寸
|
9/125
|
|
發射器類型
|
Monolithic MZM Tunable TOSA
|
接收器類型
|
PIN
|
|
發射功率
|
-1~3dBm,-1~4dBm
|
接收靈敏度
|
-16dBm
|
|
數字診斷
|
YES
|
接收過載
|
-1dBm
|
|
功耗
|
C<2.1W,I<2.5W
|
支持協議
|
SFF-8431
SFF-8472
SFF-8690
IEEE 802.3ae CL 52
|
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
|
工作溫度(工業級)
|
-40℃~+85℃
|
儲存溫度（工業級）
|
-40℃~+85℃
|
生產線介紹
PRODUCTION LINE INTRODUCTION
JFOPT嘉(jia)(jia)富持續(xu)投入光(guang)(guang)模(mo)塊(kuai)生(sheng)產領(ling)域(yu)，產品覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全(quan)系列光(guang)(guang)模(mo)塊(kuai)。同時為下游同行提供(gong)TOSA、ROSA、BOSA等光(guang)(guang)器件(jian)半成品解決方案。JFOPT嘉(jia)(jia)富生(sheng)產線具備(bei)日(ri)產量一萬只光(guang)(guang)模(mo)塊(kuai)、兩萬只光(guang)(guang)器件(jian)的能力。此外(wai)，JFOPT嘉(jia)(jia)富光(guang)(guang)模(mo)塊(kuai)擁(yong)有業界領(ling)先(xian)的耐高溫(wen)、抗干擾特(te)性，廣(guang)泛應用于計(ji)算中心、運營商、交通安(an)防、電力設施等行業領(ling)域(yu)。
產品介紹
PRODUCT PRESENTATION

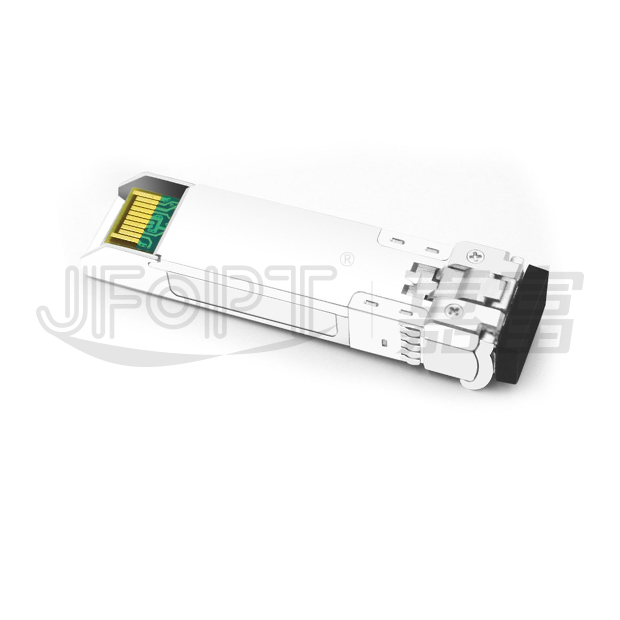

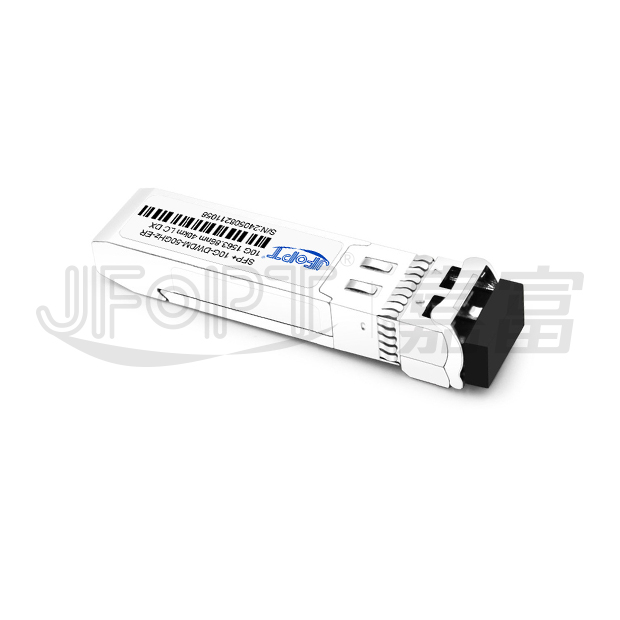

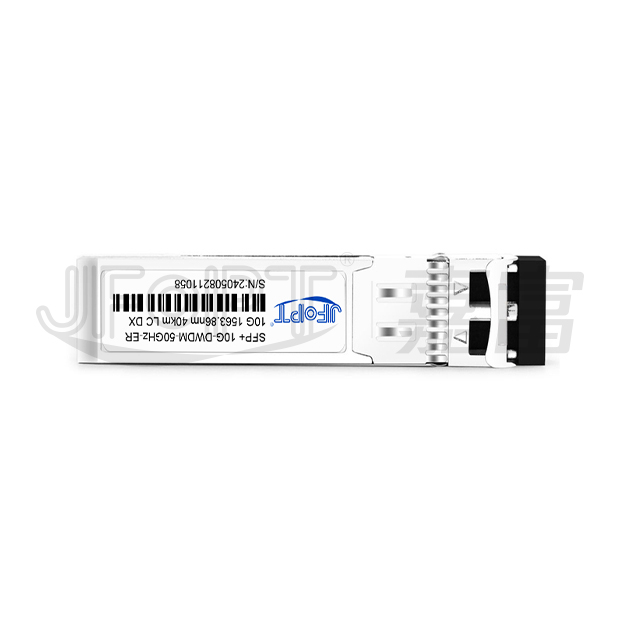

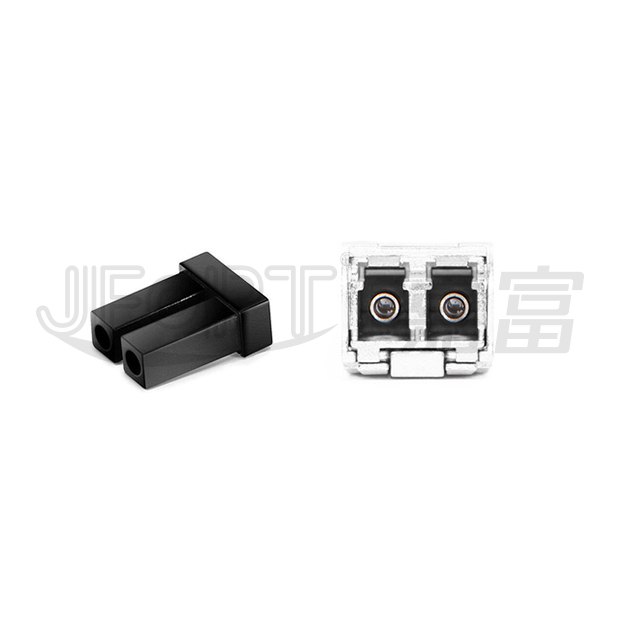

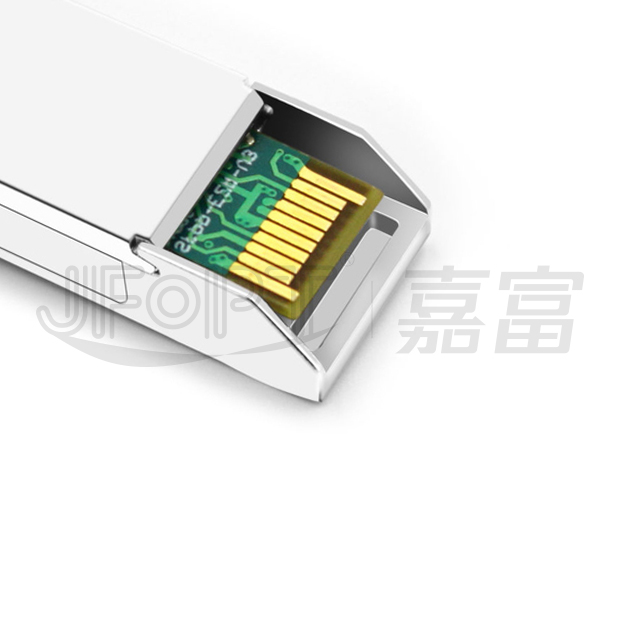

JFOPT SFP+ 10G 50GHz DWDM 40km ER LC DX光(guang)(guang)(guang)模(mo)塊(kuai)是一(yi)款高(gao)性能高(gao)性價比設備，支持帶(dai)CDR的(de)9.95Gbps-11.3Gbps多速率及(ji)8.5Gbps旁路(lu)CDR模(mo)式，在單模(mo)光(guang)(guang)(guang)纖上實現40公里(li)傳輸(shu)(shu)；該收發(fa)(fa)器(qi)(qi)包(bao)含發(fa)(fa)射端（集成激光(guang)(guang)(guang)驅動器(qi)(qi)與(yu)溫(wen)度(du)調諧光(guang)(guang)(guang)發(fa)(fa)射次(ci)組(zu)件(jian)TTOSA）和(he)接(jie)收端（采用(yong)(yong)集成跨阻前置放(fang)大器(qi)(qi)TIA的(de)PIN光(guang)(guang)(guang)電(dian)二極管）；模(mo)塊(kuai)通(tong)過(guo)(guo)20-pin連(lian)接(jie)器(qi)(qi)熱插拔，其高(gao)速電(dian)氣接(jie)口基(ji)于低(di)電(dian)壓邏輯，具備標稱100歐姆差分阻抗與(yu)內部交(jiao)流耦合(he)；光(guang)(guang)(guang)輸(shu)(shu)出可通(tong)過(guo)(guo)LVTTL高(gao)電(dian)平TX_DIS信(xin)號(hao)(hao)禁用(yong)(yong)，Tx_Fault（發(fa)(fa)送(song)故(gu)障）指(zhi)示激光(guang)(guang)(guang)操作(zuo)異(yi)常(chang)，RX_LOS（接(jie)收信(xin)號(hao)(hao)丟失(shi)）標識光(guang)(guang)(guang)輸(shu)(shu)入中斷；內置串(chuan)行EEPROM支持通(tong)過(guo)(guo)雙線制SFP管理接(jie)口訪問監(jian)控配置數(shu)據，該接(jie)口使用(yong)(yong)單一(yi)地址(zhi)A0h，存儲映射分為低(di)位(wei)區(qu)（存儲基(ji)本數(shu)字(zi)診斷DD數(shu)據）與(yu)高(gao)位(wei)區(qu)（特定數(shu)據存儲于高(gao)位(wei)內存數(shu)據表(biao)中）。
光模塊系列產品
TRANSCEIVER SERIES PRODUCTS
生產及檢測設備
PRODUCTION & TESTING EQUIPMENT
產品特點
FEATURES
| Up to 40km transmission on SMF | Support multi rate 9.95Gbps to 11.3Gbpswith CDR, 8.5Gbps bypass CDR | ||||||||
| Monolithic MZM tunable TOSA | PIN receiver | ||||||||
| 50GHz ITU-based channel spacing (C-Band) with a wavelength locker | SFI electrical interface | ||||||||
| 2-wire interface for integrated digital diagnostic monitoring | Hot pluggable | ||||||||
| Very low EMI and excellent ESD protection | +3.3V power supply power consumption less than 2.1W | ||||||||
| Operating case temperature: 0~75°C | SFP+ MSA package with duplex LC conn |
應用范圍
APPLICATION
| DWDM 10Gb/s SONET/SDH | DWDM 10Gb/s ethernet & 10Gb/s fibre channel | ||||||||
| DWDM 10Gb/s SONET/SDH w/FEC | DWDM 10Gb/s ethernet & 10Gb/s fibre channel w/FEC |
符合標準
STANDARD COMPLIANCE
絕對最大額定值
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min. | Max. | Unit | Notes | ||||
| Storage temperature | Ts | -40 | 85.0 | ℃ | - | ||||
| Power supply voltage | Vcc3 | 0 | 3.63 | V | - | ||||
| Relative humidity(noncondensation) | RH | 5 | +85 | % | Note1 | ||||
| Damage threshold | Pmax | - | - | dBm | - | ||||
建議操作條件
RECOMMENDED OPERSTING CONDITIONS
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes | |||
| Operating case temperature | Tc | 0 | 25 | 75 | °C | - | |||
| Supply voltage | Vcc | 3.13 | 3.3 | 3.47 | V | - | |||
| Power supply current | Pd | - | - | 670 | mA | - | |||
| Data rate | - | 8.5 | 10.3125 | 11.3 | Gbps | - | |||
| Transmission distance | - | - | - | 40 | km | - | |||
發射機工作特性-光學&電氣
TRANSMITTER OPERATING CHARACTERISTIC-OPTICAL & ELECTRICAL
| Parameter | Symbol | Min. | Typical | Max | Unit | Note | |||
| Data rate | DR | 8.5 | 10.3125 | 11.3 | Gbps | - | |||
| Center wavelength | CW | 191.3 | - | 196.05 | THz | - | |||
| Wavelength range | λC | 1529.16 | - | 1567.13 | nm | - | |||
| Center frequqncy variation | CFV | 0 | - | +/-2.5 | GHz | - | |||
| -20dB spectral width | Δλ20 | - | - | 0.3 | nm | - | |||
| Side mode suppression ratio | SMSR | 30 | - | - | nm | - | |||
| Laser off power | Poff | - | - | -30 | dBm | - | |||
| Transmitter reflectance | TR | - | - | -12 | dB | - | |||
| Average optical power | PO | -1 | 0.5 | 3 | dBm | - | |||
| Extinction ratio | ER | 8.2 | - | - | dB | - | |||
| Cross point of eye | CP | 40% | - | 0.52 | - | - | |||
| Transmitter dispersion renalty | TDP | - | - | 3 | dB | - | |||
| Transmitter dispersion tolerance(CD window with 2dB OSNR penalty) | TDT | -700 | - | 700 | km ps/nm | - | |||
| Relative intensity noise | RIN12OMA | - | - | -128 | dB/Hz | - | |||
| Optical eye mask | EMM | 5 | - | - | - | - | |||
| Tx Input diff voltage | VI | 200 | - | 850 | mV | - | |||
接收器工作特性-光學&電氣
RECEIVER OPERATING CHARACTERISTIC-OPTICAL & ELECTRICAL
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note | |||
| Data rate | DR | 8.5 | 10.3125 | 11.3 | Gbps | - | |||
| Center wavelength | CW | 1260 | - | 1600 | nm | - | |||
| Sensitivity @(BER=1E-12, PRBS 2^31-1, NRZ, 9.95Gbps~10.7Gbps data rate |
Psen | 1529.16 | - | -16(EOL) | dBm | - | |||
| Sensitivity @(BER=2.0E-03, PRBS 2^31-1,NRZ,11.3Gbps data rate, dispersion 800ps/nm, at room temperature and OSNR >31dB) | Psen | - | - | -19 (EOL) | dBm | - | |||
| B2B OSNR Tolerance BOL @ 2E-3 Test condition： A:optical filter type and bandwidth：flattop filter-3dB bandwidth 84 GHz, OSA res 0.1nm for noise bandwidth. B: Input optical power range： 0~-14dBm C:9.9Gbps~11.3Gbps data rate range D:-5~70℃ E：Under the optimal threshold or 50% threshold |
- | - | - | 13.5 | dB | - | |||
| B2B OSNR Tolerance BOL @ 2E-3 Test condition： A:optical filter type and bandwidth：flattop filter -3dB bandwidth 84 GHz, OSA res 0.1nm for noise bandwidth. B: Input optical power range： 0~-14dBm C:9.9Gbps~11.3Gbps data rate range D:-5~70℃ E：Under the optimal threshold or 50% threshold |
- | - | - | 14.0 | dB | - | |||
| Saturation power（EOL） | SP | -1 | - | - | dBm | - | |||
| Input optical power(no | IOP | 4 | - | - | dBm | - | |||
數字診斷功能
DIGITAL DIAGNOSTIC FUNCTIONS
| Parameter | Symbol | Min. | Typical | Max | Units | Notes | |||
| Temperature monitor absolute error | DMI_Temp | -3 | - | 3 | ℃ | Over operating temperature | |||
| Supplyvoltage monito rabsolute error | DMI_Vcc | -3% | - | 3% | V | Over operating voltage | |||
| Bias current monitor absolute error | DMI_Ibias | -10% | - | 10% | mA | - | |||
| Lase rpower monitor absolute error | DMI_Tx | -3 | - | 3 | dB | - | |||
控制與狀態輸入/輸出時序特性
CONTROL AND STATUS I/O TIMING CHARACTERISTICS
| Parameter | Symbol | Min. | Typical | Max | Units | Notes | |||
| TX disable assert time | t_off | - | - | 100 | µs | Note1 | |||
| TX disable negate time | t_on | - | - | 2 | ms | Note2 | |||
| Time to initialize including reset of TX_fault |
t_init | - | - | 300 | ms | Note3 | |||
| TX fault assert time | t_fault_on | - | - | 1 | ms | Note4 | |||
| TX fault reset time | t_reset | 10 | - | - | µs | Note5 | |||
| LOS assert time | t_loss_on | - | - | 100 | µs | Note6 | |||
| LOS deassert time | t_loss_off | - | - | 100 | µs | Note7 | |||
Notes: [1]Time from rising edge of TX Disable to when the optical output falls below 10% of nominal. [2]Time from falling edge of TX Disable to when the modulated optical output rises above 90% of nominal. [3]From power on or negation of TX Fault using TX Disable. [4]Time from fault to TX fault on. [5]Time from TX fault to TX nominal. [6]Time from LOS state to RX LOS assert. [7]Time from non-LOS state to RX LOS deassert. |
|||||||||

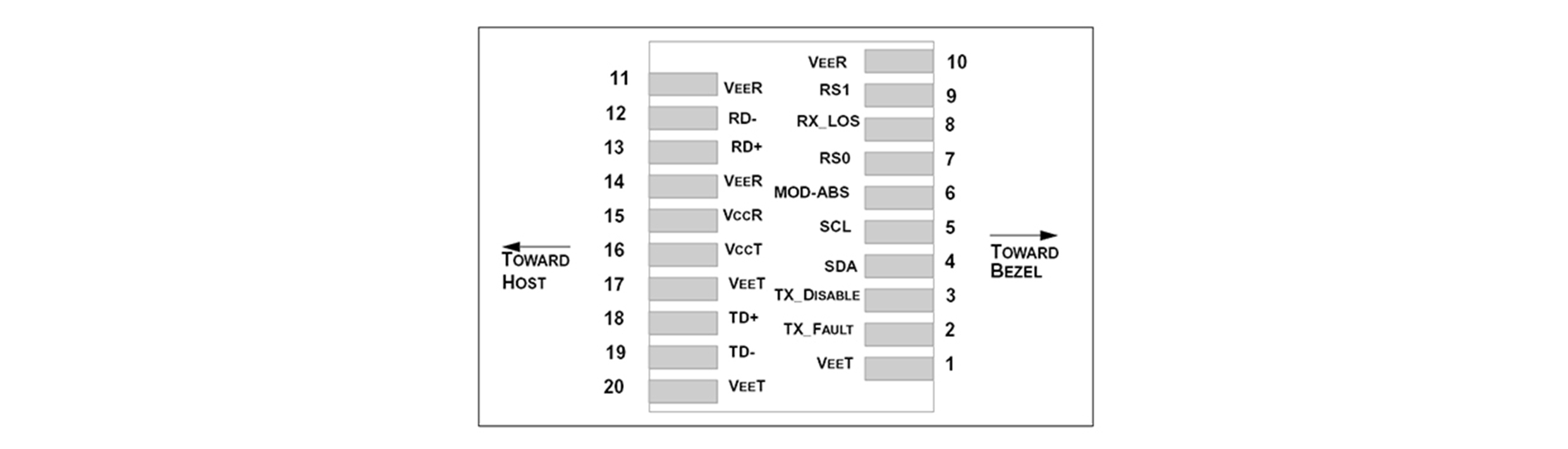

引腳定義
PIN-OUT DEFINITIONS
| Logic | Symbol | Name/Description | Note | ||||||
| 1 | - | VeeT | Module transmitter ground | Note1 | |||||
| 2 | LVTTL-O | TX_fault | Module transmitter fault | Note2 | |||||
| 3 | LVTTL-I | TX_disable | Transmitter disable;Turnsofftrans mitterlaseroutput | Note3 | |||||
| 4 | LVTTL-I/O | SDA | 2-Wire serial interface data line(Same as MOD-DEF2 asdefinedin the INF-8074i) | Note4 | |||||
| 5 | LVTTL-I/O | SCL | 2-Wire serial interface clock(Same as MOD-DEF1 as defined intheINF-8074i) | Note4 | |||||
| 6 | MOD-ABS | Module absent, connected to VeeT or VeeR in the module | Note5 | ||||||
| 7 | LVTTL-I | RS0 | Rate select 0 | - | |||||
| 8 | LVTTL-O | RX_LOS | Receiver Loss of Signal indication (In FC designated as RX_LOS, in SONET designated as LOS, and in ethernet designated at signal detect) | Note2 | |||||
| 9 | LVTTL-I | RS1 | Rate select 1 | - | |||||
| 10 | - | VeeR | Module receiver ground | Note1 | |||||
| 11 | - | VeeR | Module receiver ground | Note1 | |||||
| 12 | CML-O | RD- | Receiver inverted data output | - | |||||
| 13 | CML-O | RD+ | Receiver non inverted data output | - | |||||
| 14 | - | VccR |
    Module receiver ground
|
Note1 | |||||
| 15 | - | VeeR | Module receiver 3.3 V supply | - | |||||
| 16 | - | VccT | Module transmitter 3.3 V supply | Note1 | |||||
| 17 | - | VeeT | Module transmitter ground | - | |||||
| 18 | CML- I | TD+ | Transmitter non-inverted data input | - | |||||
| 19 | CML- I | TD- | Transmitter inverted data input | - | |||||
| 20 | - | VeeT | Module yransmitter ground | Note1 | |||||
Notes:
[1]The module signal ground pins, VeeR and VeeT, shall be isolated from the module case.
[2]This pin is an open collector/drain output pin and shall be pulled up with 4.7k-10kohms to Host_Vcc on the host board. Pull ups can be connected to multiple power supplies, however the host board design shall ensure that no module pin has voltage exceeding module VccT/R + 0.5 V.
[3]This pin is an open collector/drain input pin and shall be pulled up with 4.7k-10kohms to VccT in the module.
[4]See SFF-8431 4.2 2-wire Electrical Specifications.
[5]This pin shall be pulled up with 4.7k-10kohms to Host_Vcc on the host board
