| 產品型號 | JFTSM-SFP+BD-10-1213-20(ELR)-LC | 工廠品牌 | JFOPT嘉富 |
| 封裝形式 | SFP+ BIDI | 光口類型 | LC |
| 最高總速率 | 11.3Gbps | 每通道速率 | 10.3125Gbps |
| 最大傳輸距離 | 20km | ||
| 工作波長 | Tx:1270nm/Rx:1330nm Tx:1330nm/Rx:1270nm |
工作電壓 | 3.3V |
| 光纖型號 | SFP+ BIDI | 纖芯尺寸 | 9/125 |
| 發射器類型 | 11.3Gbps | 接收器類型 | IDP |
| 發射功率 | -2~3dBm | 接收靈敏度 | -14dBm |
| 數字診斷 | YES | 接收過載 | 0.5dBm |
| 功耗 | <1.5W | 支持協議 | SFF-8431 IEEE 802.3ae 10GBASE-LR IEEE 802.3ae 10GBASE-LW SFF-8472 |
| 工作溫度(商業級) | 0℃~+70℃ | 儲存溫度（商業級） | -40℃~+85℃ |
| 工作溫度(工業級) | -40℃~+85℃ | 儲存溫度（工業級） | -40℃~+85℃ |
生產線介紹
PRODUCTION LINE INTRODUCTION
JFOPT嘉富(fu)持(chi)續投(tou)入光(guang)(guang)模(mo)(mo)塊(kuai)生產(chan)(chan)領域(yu)，產(chan)(chan)品覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等(deng)全系列光(guang)(guang)模(mo)(mo)塊(kuai)。同時(shi)為下游同行提供TOSA、ROSA、BOSA等(deng)光(guang)(guang)器件半成品解決(jue)方案。JFOPT嘉富(fu)生產(chan)(chan)線具(ju)備日產(chan)(chan)量一(yi)萬(wan)只光(guang)(guang)模(mo)(mo)塊(kuai)、兩萬(wan)只光(guang)(guang)器件的(de)能力。此外，JFOPT嘉富(fu)光(guang)(guang)模(mo)(mo)塊(kuai)擁(yong)有(you)業界(jie)領先的(de)耐(nai)高溫、抗干擾特性，廣泛應(ying)用于(yu)計算中心、運營商、交通安防(fang)、電(dian)力設施等(deng)行業領域(yu)。
產品介紹
PRODUCT PRESENTATION

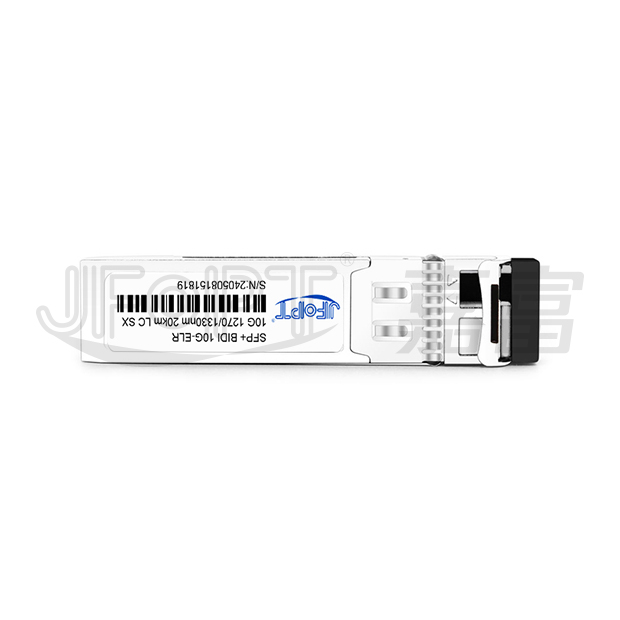

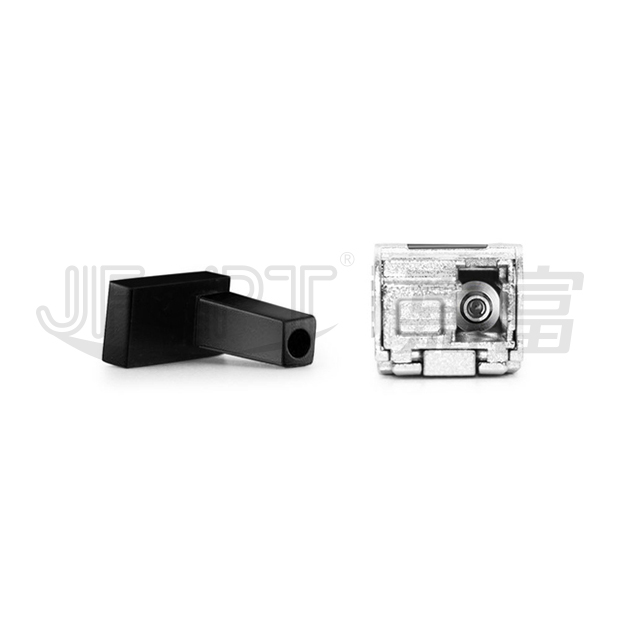

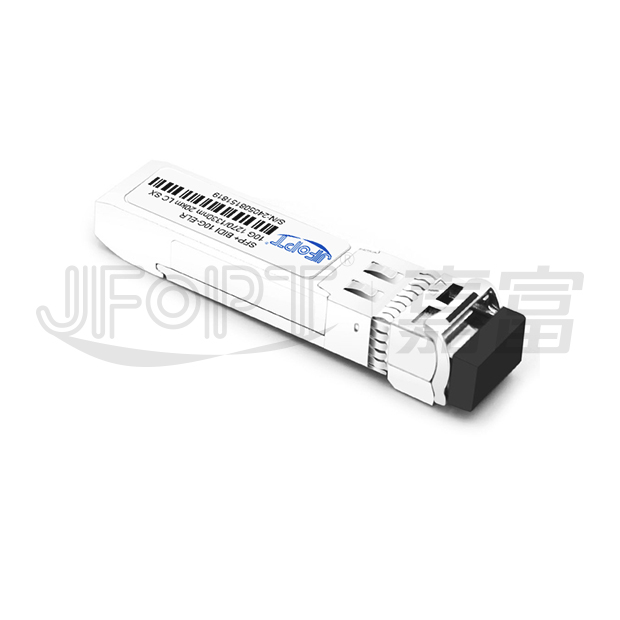

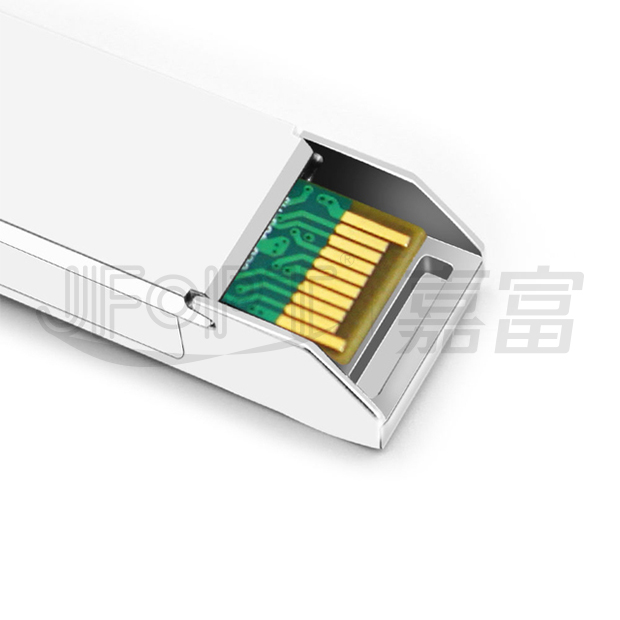

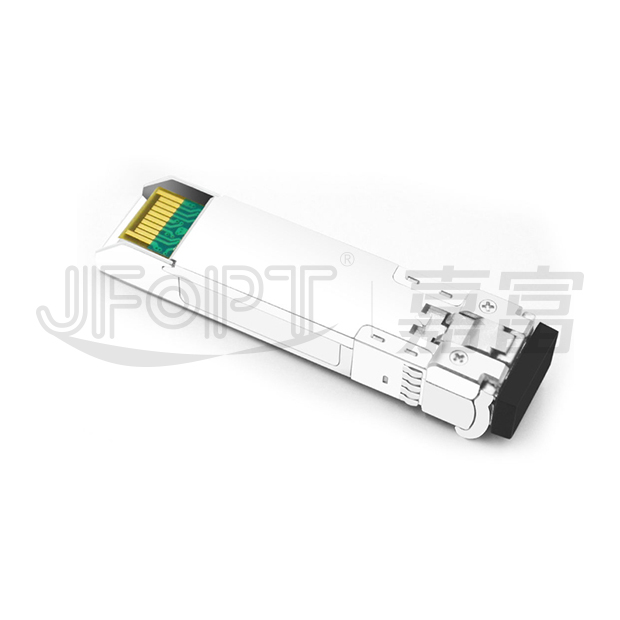

JFOPT SFP+ BIDI 10G 1270/1330nm 20km ELR LC SX單(dan)模(mo)(mo)光(guang)(guang)(guang)收發器(qi)是一(yi)款緊(jin)湊型可插拔(ba)(ba)模(mo)(mo)塊，專為雙工光(guang)(guang)(guang)數據通信設計（兼容IEEE 802.3ae 10GBASE-LR/LW標(biao)準）。該模(mo)(mo)塊配備 20-pin SFP+接(jie)(jie)口(kou)，支持(chi)熱插拔(ba)(ba)功能，針對單(dan)模(mo)(mo)光(guang)(guang)(guang)纖優(you)化設計，工作波長為1270nm或(huo)1330nm：其發射端采用符合IEC-60825 Class 1激光(guang)(guang)(guang)安全標(biao)準的(de)多量子阱DFB激光(guang)(guang)(guang)器(qi)；接(jie)(jie)收端集(ji)成先進(jin)光(guang)(guang)(guang)檢測系統——包含光(guang)(guang)(guang)學頭內封裝的(de)銦鎵砷(InGaAs)探測器(qi)前置放(fang)(fang)大器(qi)(IDP)及限幅后置放(fang)(fang)大器(qi)集(ji)成電(dian)路(lu)，實(shi)現穩健(jian)的(de)信號(hao)處理性能。
光模塊系列產品
TRANSCEIVER SERIES PRODUCTS
生產及檢測設備
PRODUCTION & TESTING EQUIPMENT
產品特點
FEATURES
| Operating data rate up to 11.3Gbps |
Two types:
A: 1270nm DFB transmitter/ 1330nm receiver
B: 1330nm DFB transmitter/ 1270nm receiver
|
||||||||
| Power budget up to 12dB | Single 3.3V power supply and TTL logic interface | ||||||||
| LC connector interface | Hot pluggable | ||||||||
| Power dissipation < 1.5W |
Operating case temperature
Standard: 0~+70℃
Industrial: -40~+85℃
|
應用范圍
APPLICATION
| 10GBASE-LR at 10.3125Gbps | 10GBASE-LW at 9.953Gbps | ||||||||
|
OBSAI rates 6.144 Gb/s, 3.072 Gb/s,
1.536 Gb/s, 0.768Gb/s
|
CPRI rates 10.138Gb/s，9.830Gb/s,7.373Gb/s, 6.144 Gb/s, 4.915Gb/s, 2.458 Gb/s, 1.229 Gb/s,0.614Gb/s | ||||||||
| Other optical links |
符合標準
STANDARD COMPLIANCE
訂購信息
ORDER INFORMATION
| Part No. | Data Rate | Laser | Temp. | Power Budget | Optical Interface | DDMI | ||
| SFP+ BIDI 10G 1270nm 20km ELR LC SX Transceiver | Up to 11.3Gbps | 1270nm DFB | Standard | 12dB | LC | YES | ||
| SFP+ BIDI 10G 1330nm 20km ELR LC SX Transceiver | 1330nm DFB | |||||||
| SFP+ BIDI 10G 1270nm 20km ELR LC SX Transceiver | 1270nm DFB | Industrial | ||||||
| SFP+ BIDI 10G 1330nm 20km ELR LC SX Transceiver | 1330nm DFB | |||||||
絕對最大額定值
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min. | Max. | Unit | |||||
| Storage temperature | TS | -40 | +85 | °C | |||||
| Supply voltage | VCC | -0.5 | 3.6 | V | |||||
*Note: Exceeding any one of these values may destroy the device permanently. |
|||||||||
建議操作條件
RECOMMENDED OPERATING CONDITIONS
| Parameter | Symbol | Min. | Typical | Max. | Unit | ||||
| Operating case temperature | Tc | 0 | - | +70 | °C | ||||
| -40 | - | 85 | |||||||
| Power supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | ||||
| Power supply current | Icc | - | - | 430 | mA | ||||
| Surge current | ISurge | - | - | +30 | mA | ||||
| Baud rate | - | 0.6 | 10.3125 | 11.3 | GBaud | ||||
性能規范—電氣
PERFORMANCE SPECIFICATIONS–ELECTRICAL
| Parameter | Symbol | Min. | Typ. | Max | Unit | Notes | |||
Transmitter |
|||||||||
| CML inputs(Differential) | Vin | 150 | - | 1200 | mVpp | AC coupled inputs | |||
| Input impedance (Differential) | Zin | 85 | 100 | 115 | ohms | Rin > 100 kohms @ DC | |||
| Tx_DISABLE input voltage - high | - | 2 | - | Vcc+0.3 | V | - | |||
| Tx_DISABLE input voltage - low | - | 0 | - | 0.8 | V | - | |||
| Tx_FAULT output voltage - high | - | 2 | - | Vcc+0.3 | V | Io = 400µA; Host Vcc | |||
| Tx_FAULT output voltage - low | - | 0 | - | 0.5 | V | Io = -4.0mA | |||
Receiver |
|||||||||
| CML outputs (Differential) | Vout | 350 | - | 700 | mVpp | AC coupled outputs | |||
| Output impedance (Differential) | Zout | 85 | 100 | 115 | ohms | - | |||
| Rx_LOS output voltage - high | - | 2 | - | Vcc+0.3 | V | lo = 400µA; Host Vcc | |||
| Rx_LOS output voltage - low | - | 0 |
 -
|
 0.8
|
V | lo = -4.0mA | |||
| MOD_DEF ( 2:0 ) | VoH | 2.5 | - | - | V | With serial ID | |||
| VoL | 0 | - | 0.5 | V | |||||
光學特征
OPTICAL AND ELECTRICAL CHARACTERISTICS
1270nm DFB & PIN/TIA |
|||||||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | ||||
| Power budget | - | 12 | - | - | dB | ||||
| Data rate | - | 0.6 | 10.3125 | 11.3 | Gbps | ||||
Transmitter |
|||||||||
| Centre wavelength | λC | 1260 | 1270 | 1280 | nm | ||||
| Spectral width (-20dB) | Δλ | - | - | 1 | nm | ||||
| Side mode suppression ratio | SMSR | 30 | - | - | dB | ||||
| Average output power | Pout, AVG | -2 | - | 3 | dBm | ||||
| Extinction ratio | ER | 3.5 | - | - | ms | ||||
| Average power of OFF transmitter | - | - | - | -30 | dBm | ||||
| Relative intensity noise | RIN | - | - | -128 | dB/Hz | ||||
| TX disable assert time | t_off | - | - | 10 | us | ||||
Receiver |
|||||||||
| Centre wavelength | λc | 1320 | - | 1340 | nm | ||||
| Sensitivity | PIN | - | - | -14 | dBm | ||||
| Receiver overload | PMAX | 0.5 | - | - | dBm | ||||
| LOS de-assert | LOSD | - | - | -18 | dBm | ||||
| LOS assert | LOSA | -30 | - | - | dBm | ||||
1330nm DFB & PIN/TIA |
|||||||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | ||||
| Power budget | - | 12 | - | - | dB | ||||
| Data rate | - | 0.6 | 10.3125 | 11.3 | Gbps | ||||
Transmitter |
|||||||||
| Centre wavelength | λC | 1320 | 1330 | 1340 | nm | ||||
| Spectral width (-20dB) | Δλ | - | - | 1 | nm | ||||
| Side mode suppression ratio | SMSR | 30 | - | - | dB | ||||
| Average output power | Pout, AVG | -2 | - | 3 | dBm | ||||
| Extinction ratio | ER | 3.5 | - | - | dB | ||||
| Average power of OFF transmitter | - | - | - | -30 | dBm | ||||
| Relative intensity noise | RIN | - | - | -128 | dB/Hz | ||||
| TX disable assert time | t_off | - | - | 10 | us | ||||
Receiver |
|||||||||
| Centre wavelength | λc | 1260 | - | 1280 | nm | ||||
| Sensitivity | PIN | - | - | -14 | dBm | ||||
| Receiver overload | PMAX | - | - | - | dBm | ||||
| LOS de-assert | LOSD | - | - | -18 | dBm | ||||
| LOS assert | LOSA | -30 | - | - | dBm | ||||

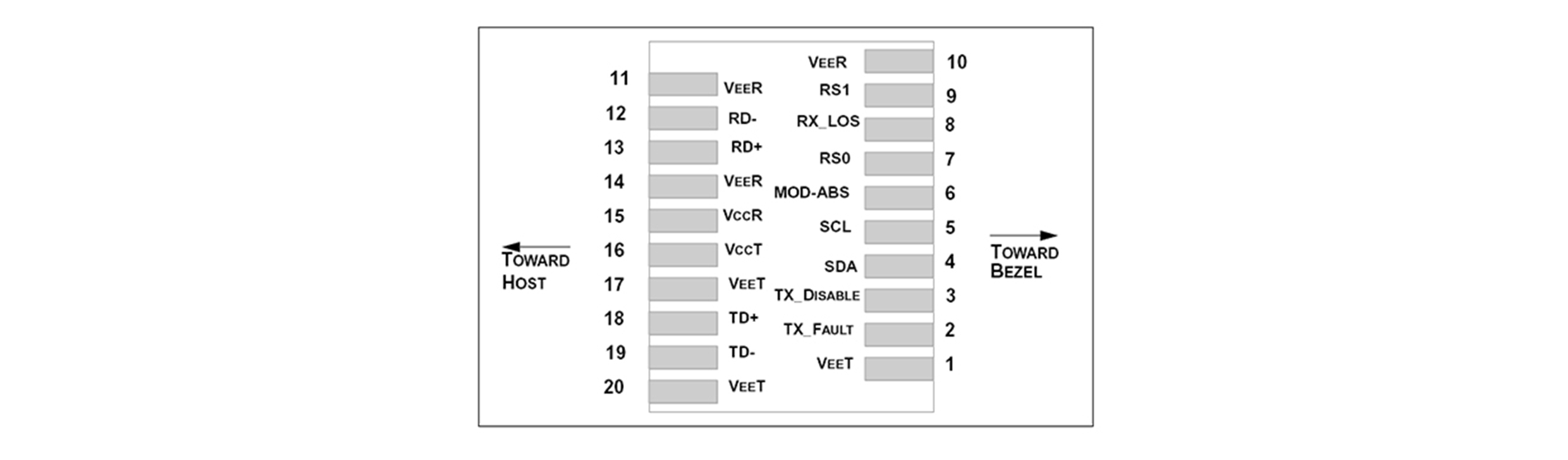

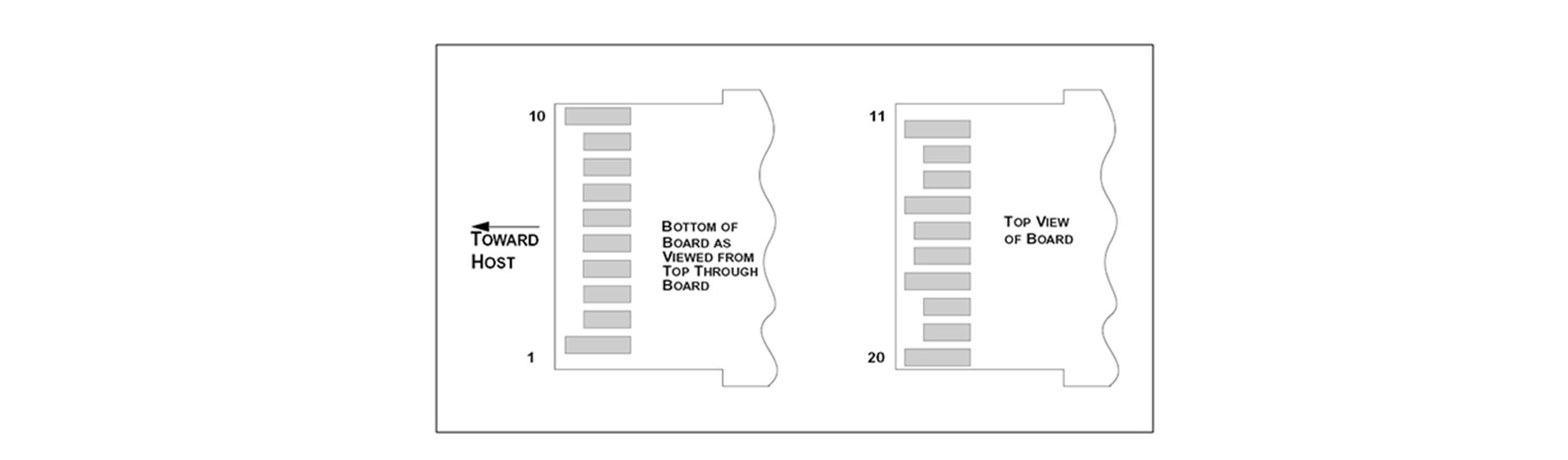

SFP+收發器電氣焊盤布局
SFP+ TRANSCEIVER ELECTRICAL PAD LAYOUT
引腳功能定義
PIN FUNCTION DEFINITIONS
| Pin Num. | Name | Function | Plug Seq. | Notes | ||||
| 1 | VeeT | Transmitter ground | 1 | Note 5 | ||||
| 2 | TX fault | Transmitter fault indication | 3 | Note 1 | ||||
| 3 | TX disable | Transmitter disable | 3 | Note 2, module disables on high or open | ||||
| 4 | SDA | Module definition 2 | 3 | 2-Wire serial interface data line. | ||||
| 5 | SCL | Module definition 1 | 3 | 2-Wire serial interface clock. | ||||
| 6 | MOD_ABS | Module definition 0 | 3 | Note 3 | ||||
| 7 | RS0 | RX Rate select(LVTTL). | 3 | No function implement | ||||
| 8 | LOS | Loss of signal | 3 | Note 4 | ||||
| 9 | RS1 | TX Rate select(LVTTL). | 1 | No function implement | ||||
| 10 | VeeR | Receiver ground | 1 | Note 5 | ||||
| 11 | VeeR | Receiver ground | 1 | Note 5 | ||||
| 12 | RD- | Inv. received data out | 3 | Note 6 | ||||
| 13 | RD+ | Received data out | 3 | Note 6 | ||||
| 14 | VeeR | Receiver ground | 1 | Note 5 | ||||
| 15 | VccR | Receiver power | 2 | 3.3V ± 5%, Note 7 | ||||
| 16 | VccT | Transmitter power | 2 | 3.3V ± 5%, Note 7 | ||||
| 17 | VeeT | Transmitter ground | 1 | Note 5 | ||||
| 18 | TD+ | Transmit data in | 3 | Note 8 | ||||
| 19 | TD- | Inv. transmit data in | 3 | Note 8 | ||||
| 20 | VeeT | Transmitter ground | 1 | Note 5 | ||||
Notes: 1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V. 2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are: Low (0 – 0.8V): Transmitter on (>0.8, < 2.0V): Undefined High (2.0 – 3.465V): Transmitter Disabled Open: Transmitter Disabled 3) Module Absent, connected to VeeT or VeeR in the module. 4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V. 5) The module signal ground contacts, VeeR and VeeT, should be isolated from the module case. 6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board. The voltage swing on these lines will be between 350 and 700 mV differential (175 –350 mV single ended) when properly terminated. 7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 430mA. Recommended host board power supply filtering is shown below. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internally connected within the SFP+ transceiver module. 8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board. The inputs will accept differential swings of 150 – 1200 mV (75 – 600mV single-ended). |
||||||||
