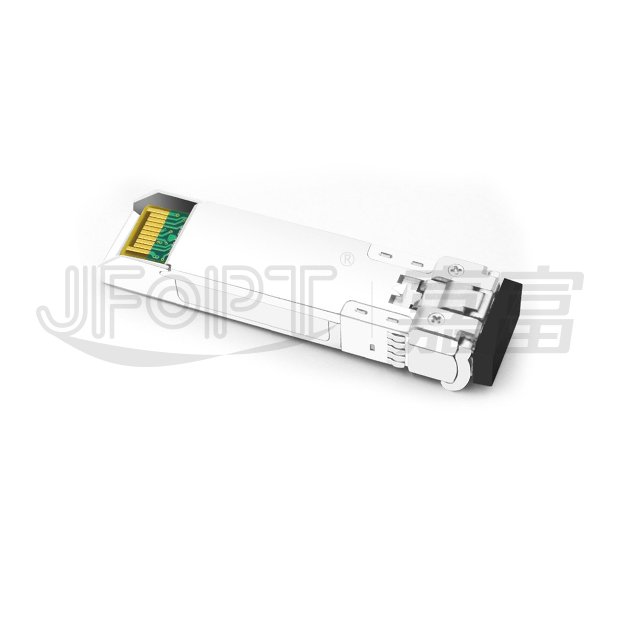

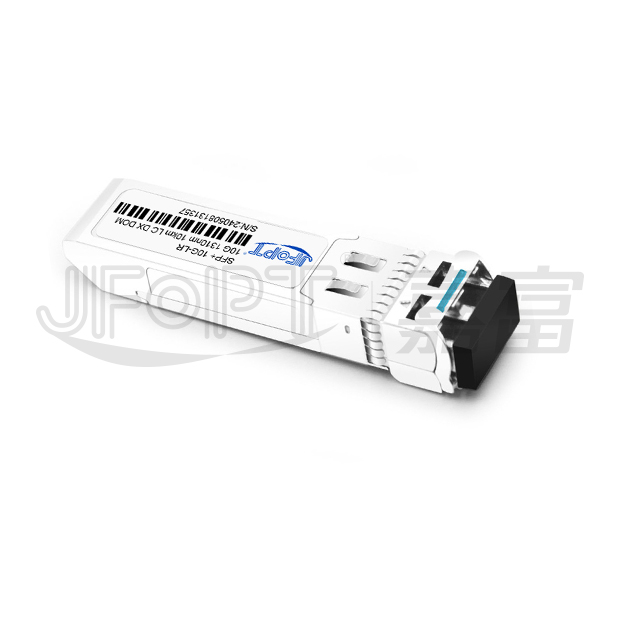

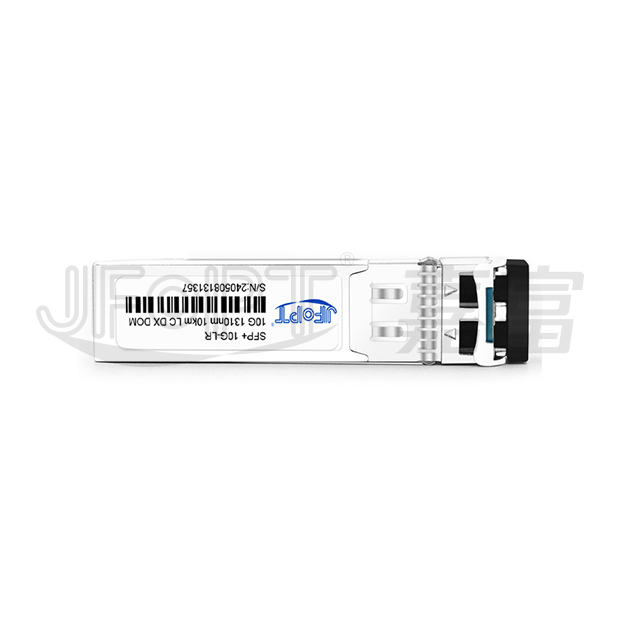

產品型號
|
JFTSM-SFP+10-13-2(LRL)/10(LR)/20(ELR)/40(ER)/70(EER)-LCD
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
SFP+
|

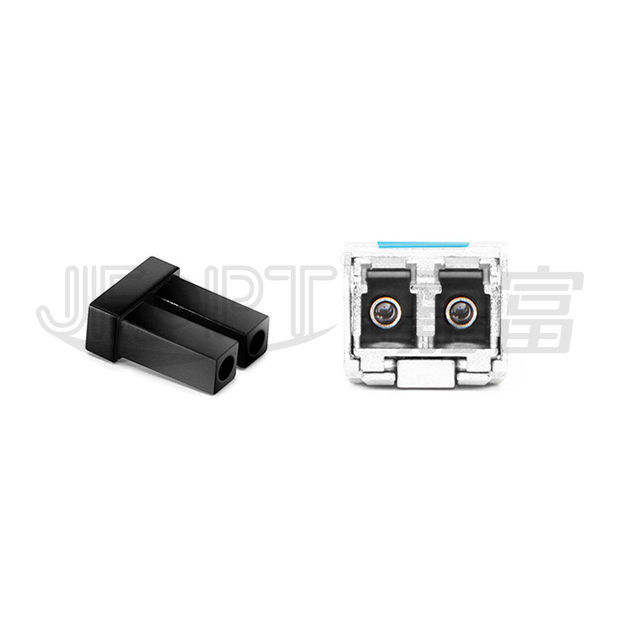

光口類型
|
LC Duplex
|
|
最高總速率
|
11.3Gbps
|
每通道速率
|
10.31Gbps
|
|
最大傳輸距離
|
2km,10km,20km;40km,70km
|
||
|
工作波長
|
1310nm
|
工作電壓
|
3.3V
|
|
光纖型號
|
SMF
|
纖芯尺寸
|
9/125
|
|
發射器類型
|
FP-LD,DFB-LD
|
接收器類型
|
IDP
|
|
發射功率
|
-6~-1dBm,-8.2~0.5dBm,-3~1dBm,1~5dBm,2~5dBm
|
接收靈敏度
|
-14.4dBm,-15dBm,-20dBm
|
|
數字診斷
|
YES
|
接收過載
|
0.5dBm,-8dBm
|
|
功耗
|
JFTSM-SFP+10-13-2(LRL)/10(LR)/20(ELR)-LCD< 1.0W
|
JFTSM-SFP+10-13-40(ER)-LCD< 1.5W
|
JFTSM-SFP+10-13-70(EER)-LCD< 1.8W
|
|
支持協議
|
MSA SFP+
SFF-8431
IEEE 802.3ae 10GBASE-LR/LW
|
||
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
|
工作溫度(工業級)
|
-40℃~+85℃
|
儲存溫度（工業級）
|
-40℃~+85℃
|
JFOPT嘉(jia)(jia)富持(chi)續投入光(guang)模塊(kuai)(kuai)生產領(ling)域(yu)，產品(pin)覆蓋(gai)1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等(deng)全系列光(guang)模塊(kuai)(kuai)。同(tong)時為下游(you)同(tong)行提供TOSA、ROSA、BOSA等(deng)光(guang)器件半成品(pin)解決方案(an)。JFOPT嘉(jia)(jia)富生產線(xian)具備日產量一萬只(zhi)光(guang)模塊(kuai)(kuai)、兩(liang)萬只(zhi)光(guang)器件的(de)能(neng)力(li)。此外(wai)，JFOPT嘉(jia)(jia)富光(guang)模塊(kuai)(kuai)擁有(you)業界(jie)領(ling)先的(de)耐高溫、抗干擾(rao)特性(xing)，廣泛(fan)應用于計算中(zhong)心(xin)、運營商(shang)、交通(tong)安防、電力(li)設施(shi)等(deng)行業領(ling)域(yu)。

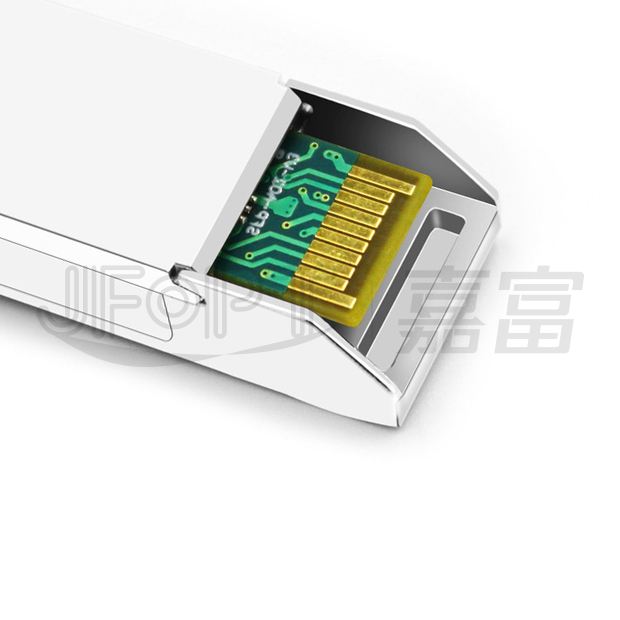

JFOPT SFP+ 10G 1310nm 2/10/20/40/70km LC DX 單模(mo)(mo)光(guang)(guang)(guang)模(mo)(mo)塊是(shi)一款緊湊型可插拔模(mo)(mo)塊，專為(wei)串行光(guang)(guang)(guang)數據通信(xin)設(she)計(ji)（符(fu)合IEEE 802.3ae 10GBASE-LR/LW標準）。該模(mo)(mo)塊配置(zhi)SFP+ 20針(zhen)接(jie)口(kou)，支(zhi)持熱插拔功能。針(zhen)對單模(mo)(mo)光(guang)(guang)(guang)纖(xian)優(you)化設(she)計(ji)，工作波長(chang)為(wei)1310nm：其發射端(duan)采用符(fu)合IEC-60825 Class 1激光(guang)(guang)(guang)安全(quan)標準的(de)1310nm多量子阱FP激光(guang)(guang)(guang)器；接(jie)收端(duan)集(ji)成先進光(guang)(guang)(guang)檢測(ce)系統(tong)——包含(han)光(guang)(guang)(guang)學頭內封裝的(de)InGaAs探測(ce)器前置(zhi)放大(da)器(IDP)及限(xian)幅后置(zhi)放大(da)器集(ji)成電路，確保可靠高(gao)效的(de)光(guang)(guang)(guang)信(xin)號處理性能。
| Operating data rate up to 11.3Gbps | 1310nm FP-LD or DFB-LD transmitter | ||||||||
| Distance up to 2km or 10km or 20km or 40km or 70km | Single 3.3V power supply and TTL logic interface | ||||||||
| Duplex LC connector interface | Hot pluggable |
| 10GBASE-LR at 10.31Gbps | 10GBASE-LW at 9.95Gbps | ||||||||
| OBSAI rates 6.144 Gb/s, 3.072 Gb/s, 1.536 Gb/s, 0.768Gb/s | CPRI rates 10.138Gb/s ,9.830Gb/s,7.373Gb/s, 6.144 Gb/s, 4.915Gb/s, 2.458 Gb/s, 1.229 Gb/s, 0.614Gb/s | ||||||||
| Other optical links |
| Part No. | Data Rate | Laser | Fiber Type | Distance | Optical Interface | DDMI | Temp. | ||
| JFTSM-SFP+10-13-2(LRL)-LCD | 0.614Gbps to 11.3Gbps | 1310nm FP | SMF | 2km | LC | YES | Standard | ||
| 2km | Industrial | ||||||||
| JFTSM-SFP+10-13-10(LR)-LCD | 1310nm DFB | 10km | Standard | ||||||
| 10km | Industrial | ||||||||
| JFTSM-SFP+10-13-20(ELR)-LCD | 20km | Standard | |||||||
| 20km | Industrial | ||||||||
| JFTSM-SFP+10-13-40(ER)-LCD | 40km | Standard | |||||||
| 40km | Industrial | ||||||||
| JFTSM-SFP+10-13-70(EER)-LCD | 40km | Standard | |||||||
| 40km | Industrial | ||||||||
| Parameter | Symbol | Min. | Max. | Unit | |||||
| Storage temperature | TS | -40 | +85 | °C | |||||
| Supply voltage | VCC | -0.5 | 3.6 | V | |||||
| Input voltage | Vin | -0.5 | Vcc | V | |||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | ||||
| Operating case temperature | Tc | Standard | 0 | - | +70 | °C | |||
| Industrial | -40 | - | +85 | °C | |||||
| Power supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | ||||
| Surge current | ISurge | - | - | +30 | mA | ||||
| Baud rate | - | 0.6 | - | 11.3 | Gbps | ||||
| Parameter | Symbol | Min. | Typ. | Max | Unit | Notes | |||
Transmitter |
|||||||||
| CML inputs(Differential) | Vin | 150 | - | 1200 | mVpp | AC coupled inputs | |||
| Input AC common mode voltage | - | 0 | - | 25 | mV | RMS | |||
| Input impedance(Differential) | Zin | 85 | 100 | 115 | ohm | Rin > 100 kohms @ DC |
|||
| Differential input s-parameter | SDD 11 | - | - | - 10 | dB | - | |||
| Differential to common mode conversion | SCD 11 | - | - | - 10 | dB | - | |||
| Tx_DISABLE input voltage – high | - | 2 | - | 3.45 | V | - | |||
| Tx_DISABLE input voltage – low | - | 0 | - | 0.8 | V | - | |||
| Tx_FAULT output voltage – high | - | 2 | - | Vcc+0.3 | V | Io = 400µA; Host Vcc | |||
| Tx_FAULT output voltage – low | - | 0 | - | 0.5 | V | Io = -4.0mA | |||
  Receiver |
|||||||||
| CML outputs (Differential) | Vout | 350 | - | 700 | mVpp | AC coupled outputs | |||
| Output AC common mode voltage | - | 0 | - | 15 | mV | RMS | |||
| Output impedance(Differential) | Zout | 90 | 100 | 110 | ohm | - | |||
| Differential output s-parameter | SD22 | - | - | - 10 | dB | - | |||
| Rx_LOS output voltage – high | - | 2 | - | Vcc+0.3 | V | lo = 400µA; Host Vcc | |||
| Rx_LOS output voltage – low | - | 0 | - | 0.8 | V | lo = -4.0mA | |||
| MOD_DEF ( 0:2 ) | VoH | 2.5 | - | - | V | With Serial ID | |||
| VoL | 0 | - | 0.5 | V | |||||
| Parameter | Symbol | Unit | Min. | Typical | Max. | ||||
| Data rate | - | Gbps | 0.6 | - | 11.3 | ||||
Transmitter |
|||||||||
| Centre wavelength | λC | nm | 1270 | 1310 | 1355 | ||||
| Extinction ratio | ER | dB | 3.5 | - | |||||
| Average power of OFF transmitter | Poff | dBm | - | - | -30 | ||||
| TX disable assert time | t_off | us | - | - | 10 | ||||
| TX_DISABLE negate time | t_on | ms | - | - | 1 | ||||
| TX_BISABLE time to start reset | t_reset | us | 10 | - | - | ||||
| Time to initialize, include reset of TX_FAULT | t_init | ms | - | - | 300 | ||||
| TX_FAULT from fault to assertion | t_fault | us | - | - | 100 | ||||
Receiver |
|||||||||
| Centre wavelength | λ | nm | 1260 | - | 1565 | ||||
| Sensitivity | Pmin | dBm | - | -14.4 | |||||
| Receiver overload | Pmax | dBm | 0.5 | - | - | ||||
| Optical return loss | ORL | dB | - | - | -12 | ||||
| LOS De-Assert | LOSD | dBm | - | - | -16 | ||||
| LOS Assert | LOSA | dBm | -28 | - | - | ||||

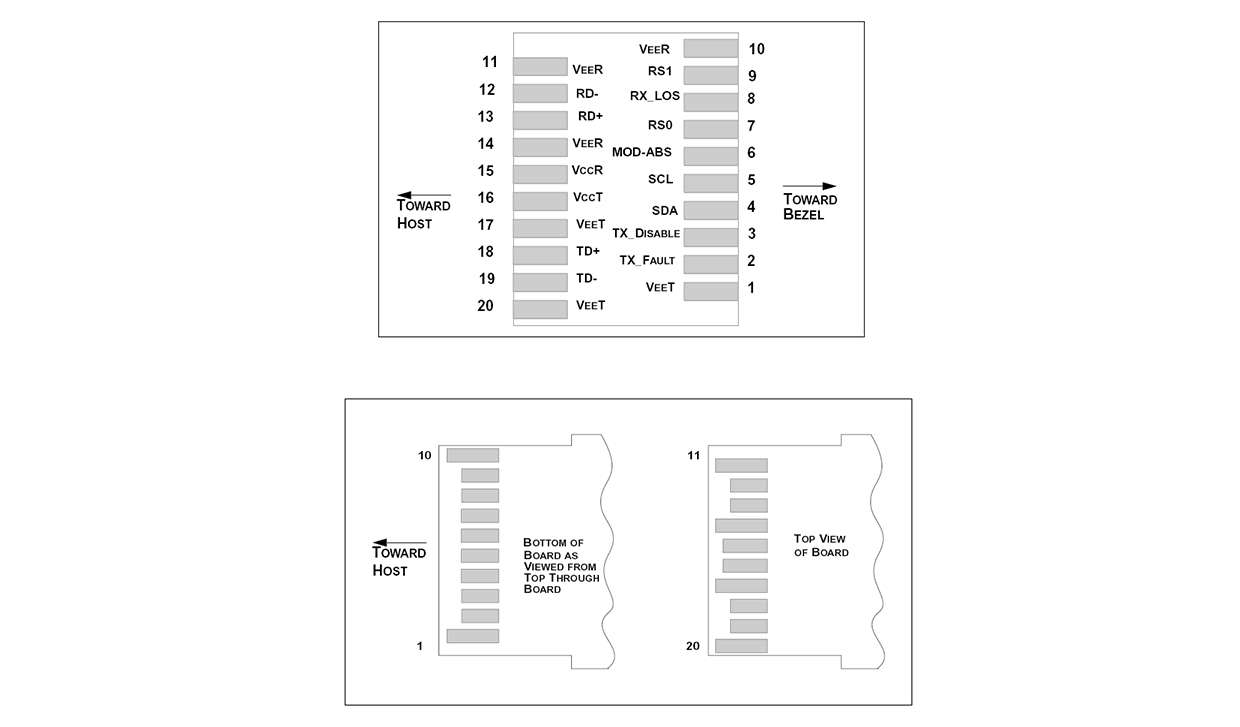

| Pin Num. | Name | Function | Plug Seq. | Notes | ||||
| 1 | VeeT | Transmitter Ground | 1 | Note 5 | ||||
| 2 | TX Fault | Transmitter Fault Indication |
3 | Note 1 | ||||
| 3 | TX Disable | Transmitter Disable | 3 | Note 2, Module disables on high or open |
||||
| 4 | SDA | Module Definition 2 | 3 | 2-wire Serial Interface Data Line. | ||||
| 5 | SCL | Module Definition 1 | 3 | 2-wire Serial Interface Clock. | ||||
| 6 | MOD-ABS | Module Definition 0 | 3 | Note 3 | ||||
| 7 | RS0 | RX Rate Select (LVTTL). |
3 | No Function Implement | ||||
| 8 | LOS | Loss of Signal | 3 | Note 4 | ||||
| 9 | RS1 | TX Rate Select (LVTTL). |
1 | No Function Implement | ||||
| 10 | VeeR | Receiver Ground | 1 | Note 5 | ||||
| 11 | VeeR | Receiver Ground | 1 | Note 5 | ||||
| 12 | RD- | Inv. Received Data Out | 3 | Note 6 | ||||
| 13 | RD+ | Received Data Out | 3 | Note 6 | ||||
| 14 | VeeR | Receiver Ground | 1 | Note 5 | ||||
| 15 | VccR | Receiver Power | 2 | 3.3V ± 5%, Note 7 | ||||
| 16 | VccT | Transmitter Power | 2 | 3.3V ± 5%, Note 7 | ||||
| 17 | VeeT | Transmitter Ground | 1 | Note 5 | ||||
| 18 | TD+ | Transmit Data In | 3 | Note 8 | ||||
| 19 | TD- | Inv. Transmit Data In | 3 | Note 8 | ||||
| 20 | VeeT | Transmitter Ground | 1 | Note 5 | ||||
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High(2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled
3) Module Absent, connected to VeeT or VeeR in the module.
4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K – 10K? resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
5) The module signal ground contacts, VeeR and VeeT, should be isolated from the module case.
6) RD-/+: These are the differential receiver outputs. They are AC coupled 100? differential lines which should be terminated with 100? (differential) atthe user SERDES. The AC coupling is done inside the module and is thus not required on the host board. The voltage swing on these lines will be between 370 and 700 mV differential (185 –350 mV single ended) when properly terminated.
7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 300mA. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internally connected within the SFP+ transceiver module.
8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100? differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board. The inputs will accept differential swings of 150 – 1200 mV (75 – 600mV single-ended), though it is recommended that values between 150 and 1200 mV differential (75 – 600mV single-ended) be used for best EMI performance.
