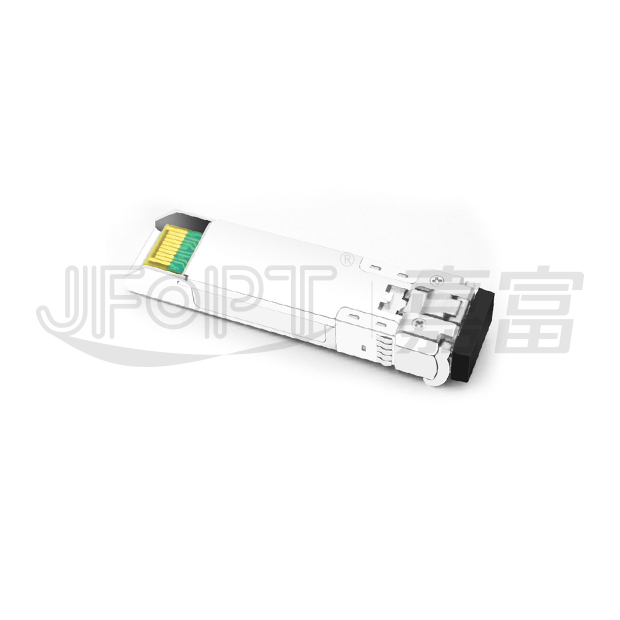

產品型號
|
JFTSM-SFP+10-13-022(LRM)-LCD
|
工廠品牌
|
JFOPT
|
|
封裝形式
|
SFP+
|
光口類型
|
LC Duplex
|
|
最高總速率
|
11.3Gbps
|
每通道速率
|
10.3125Gbps
|
|
OM3最大傳輸距離
|
220m
|
OM4最大傳輸距離
|
220m
|
|
工作波長
|
1310nm
|
工作電壓
|
3.3V
|
|
光纖型號
|
MMF
|
纖芯尺寸
|
50/125
|
|
發射器類型
|
FP
|
接收器類型
|
IDP
|
|
發射功率
|
-6.5~0.5dBm
|
接收靈敏度
|
-10dBm
|
|
數字診斷
|
YES
|
接收過載
|
1.5dBm
|
|
功耗
|
<1.0W
|
支持協議
|
MSA SFP+
SFF-8431 IEEE 802.3aq 10GBASE-LRM
|
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
|
工作溫度(工業級)
|
-40℃~+85℃
|
儲存溫度（工業級）
|
-40℃~+85℃
|
JFOPT嘉富持續投(tou)入(ru)光(guang)模塊(kuai)生產領域，產品(pin)覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等(deng)全系列光(guang)模塊(kuai)。同(tong)時(shi)為下游同(tong)行(xing)提供(gong)TOSA、ROSA、BOSA等(deng)光(guang)器(qi)件(jian)半(ban)成品(pin)解決(jue)方案。JFOPT嘉富生產線具備日產量一(yi)萬(wan)只光(guang)模塊(kuai)、兩萬(wan)只光(guang)器(qi)件(jian)的能力(li)。此外，JFOPT嘉富光(guang)模塊(kuai)擁有業(ye)界領先的耐(nai)高溫、抗干擾特性，廣泛應用(yong)于計算中心、運營商、交通安防、電力(li)設施等(deng)行(xing)業(ye)領域。

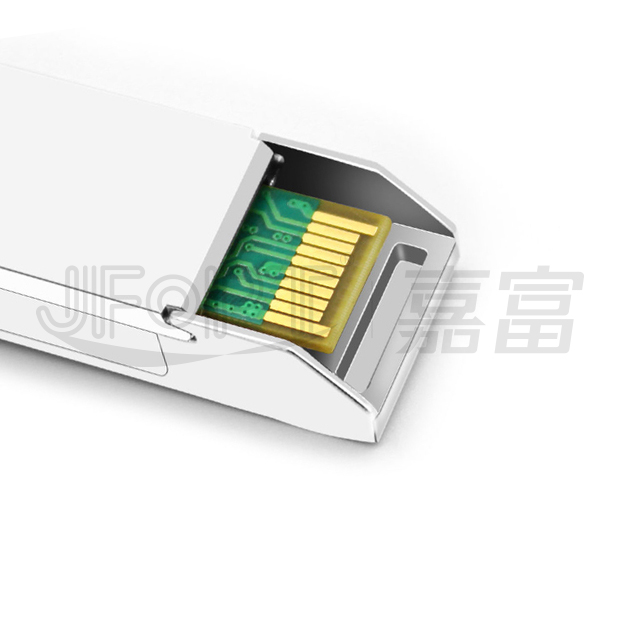

JFOPT嘉富SFP+ 10G 1310nm 220m LRM LC DX多模(mo)光(guang)模(mo)塊是(shi)一款緊(jin)湊型可(ke)插拔模(mo)塊，專為串行光(guang)通信設計(ji)（兼容IEEE 802.3aq 10GBASE-LRM標準）。該模(mo)塊采(cai)用(yong)20針SFP+接口，支持熱插拔功能，針對(dui)多模(mo)光(guang)纖優化(hua)設計(ji)，標稱工(gong)作波長為1310nm。其發射端使用(yong)符合IEC-60825 Class 1激(ji)光(guang)安全標準的1310nm FP激(ji)光(guang)器(qi)；接收端采(cai)用(yong)集成(cheng)銦(yin)鎵砷探(tan)測器(qi)前置(zhi)放大器(qi)（IDP）的光(guang)學頭組(zu)件，配(pei)合限(xian)幅后置(zhi)放大器(qi)集成(cheng)電路，確(que)保可(ke)靠信號(hao)處理。

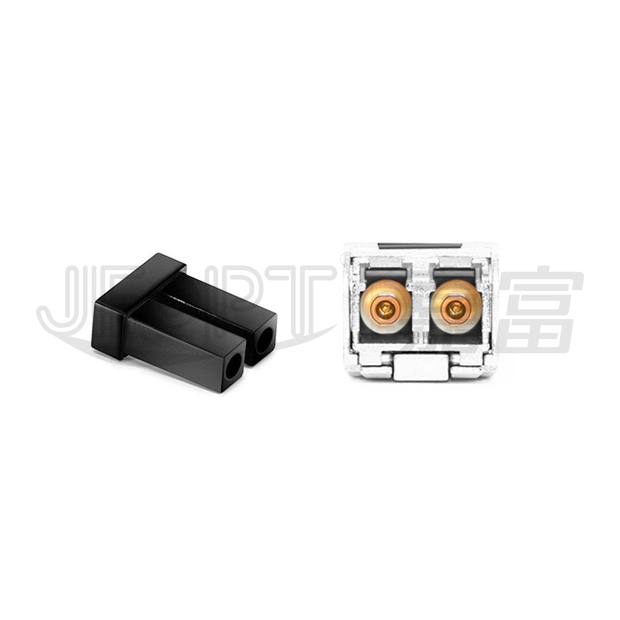

| Operating data rate up to 11.3Gbps | 1310nm FP transmitter | ||||||||
| Distance up to 220m with MMF | Single 3.3V power supply and TTL logic interface | ||||||||
| Duplex LC connector interface | Power dissipation < 1.0W |
| 10GBASE-LRM | OBSAI rates 6.144 Gb/s, 3.072 Gb/s,1.536 Gb/s, 0.768Gb/s | ||||||||
| CPRI rates 10.138Gb/s ,9.830Gb/s,7.373Gb/s, 6.144 Gb/s, 4.915Gb/s, 2.458 Gb/s, 1.229 Gb/s, 0.614Gb/s | Other optical links |
| Part No. | Data Rate | Laser | Fiber Type | Distance | Optical Interface | DDMI | Temp. | ||
| JFTSM-SFP+10-13-022(LRM)-LCD | up to 11.3 Gbps | 1310nm FP |
MMF | Up to 220m | LC | YES | Standard | ||
| up to 11.3 Gbps | 1310nm FP |
MMF | Up to 220m | LC | YES | Industrial | |||
| Parameter | Symbol | Min. | Max. | Unit | |||||
| Storage temperature | TS | -40 | +85 | °C | |||||
| Supply voltage | VCC | -0.5 | 3.6 | V | |||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | ||||
| Operating case temperature | Tc | JFTSM-SFP+10-13-022(LRM)-LCD | 0 | - | +70 | °C | |||
| -40 | - | +85 | °C | ||||||
| Power supply voltage | VCC | 3.15 | 3.3 | 3.45 | V | ||||
| Power supply current | ICC | - | - | 300 | mA | ||||
| Surge current | ISurge | - | - | +30 | mA | ||||
| Baud rate | 0.6 | - | 11.3 | Gbps | |||||
| Parameter | Symbol | Min. | Typ. | Max | Unit | Notes | |||
Transmitter |
|||||||||
| CML inputs(Differential) | Vin | 150 | - | 1200 | mVpp | AC coupled inputs | |||
| Input Impedance(Differential) | Zin | 85 | 100 | 115 | ohm | Rin > 100 kohms @ DC | |||
| Tx_DISABLE input voltage - high | - | 2 | - | 3.45 | V | - | |||
| Tx_DISABLE input voltage - low | - | 0 |
 -
|
 0.8
|
V | - | |||
| Tx_FAULT output voltage - high | - | 2 | - | Vcc+0.3 | V | Io = 400µA; Host Vcc | |||
| Tx_FAULT output voltage - low | - | 0 | - | 0.5 | V | Io = -4.0mA | |||
Receiver |
|||||||||
| CML outputs(Differential) | Vout | 350 | - | 700 | mVpp | AC coupled outputs | |||
| Output impedance(Differential) | Zout | 85 | 100 | 115 | ohm | ||||
| Rx_LOS output voltage - high | - | 2 | - | Vcc+0.3 | V | lo = 400µA; Host Vcc | |||
| Rx_LOS output voltage - low | - | 0 | - | 0.8 | V | lo = -4.0mA | |||
| MOD_DEF ( 2:0 ) | VoH | 2.5 | - | - | V | With Serial ID | |||
| VoL | 0 | - | 0.5 | V | |||||
| Parameter | Symbol | Min. | Typical | Max. | Unit | ||||
| Data Rate | - | 0.6 | - | 11.3 | Gbps | ||||
Transmitter |
|||||||||
| Centre Wavelength | λC | 1260 | 1310 | 1355 | nm | ||||
| Spectral Width (RMS) | Δλ | - | - | 3.5 | nm | ||||
| Average Output Power@10.3Gbps | Pout | -6.5 | - | 0.5 | dBm | ||||
| Extinction Ratio@10.3Gbps | ER | 3.5 | - | - | dB | ||||
| Average Power of OFF Transmitter | Poff | - | - | -30 | dBm | ||||
| TX Disable Assert Time | t_off | - | - | 10 | us | ||||
Receiver |
|||||||||
| Centre Wavelength | λ | 1260 | - | 1565 | nm | ||||
| Sensitivity@10.3Gbps | Pmin | - | - | -10 | dBm | ||||
| Receiver Overload | Pmax | 1.5 | - | - | dBm | ||||
| Optical Return Loss | ORL | - | - | -12 | dB | ||||
| LOS De-Assert | LOSD | - | - | -11 | dBm | ||||
| LOS Assert | LOSA | -25 | - | - | dBm | ||||

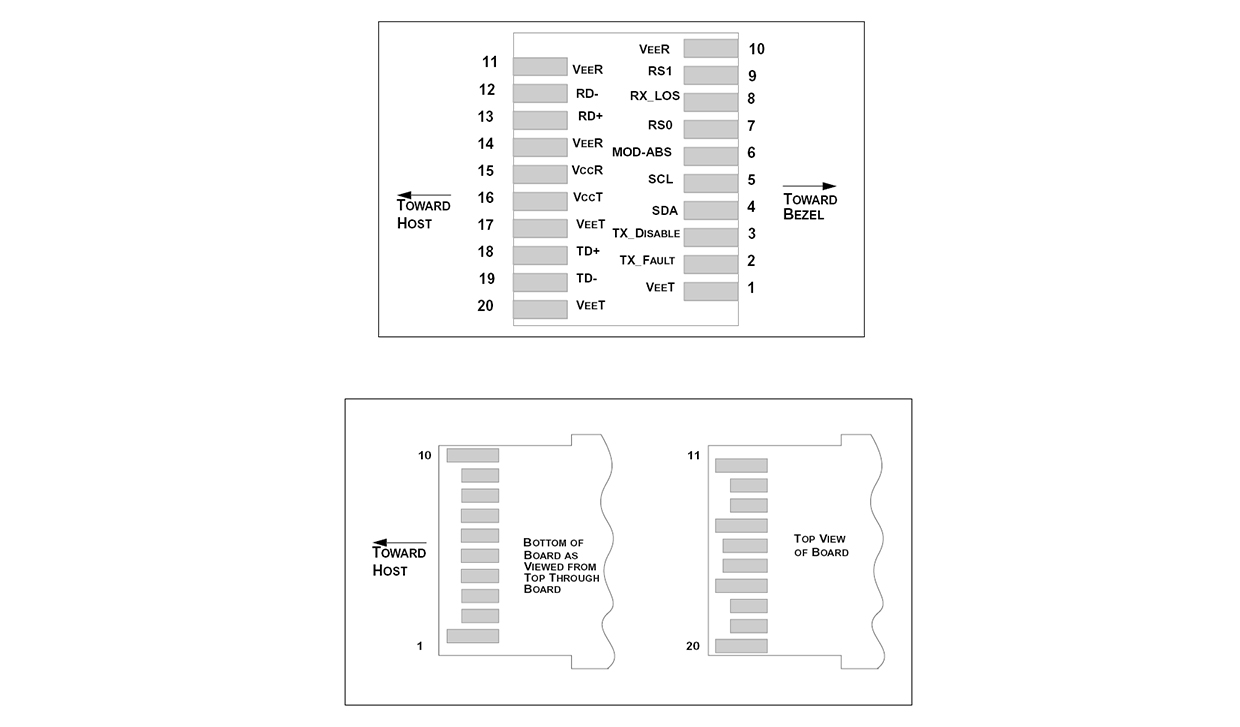

| Pin Num. | Name | Function | Plug Seq. | Notes | ||||
| 1 | VeeT | Transmitter Ground | 1 | Note 5 | ||||
| 2 | TX Fault | Transmitter Fault Indication |
3 | Note 1 | ||||
| 3 | TX Disable | Transmitter Disable | 3 | Note 2, Module disables on high or open |
||||
| 4 | SDA | Module Definition 2 | 3 | 2-wire Serial Interface Data Line. | ||||
| 5 | SCL | Module Definition 1 | 3 | 2-wire Serial Interface Clock. | ||||
| 6 | MOD-ABS | Module Definition 0 | 3 | Note 3 | ||||
| 7 | RS0 | RX Rate Select (LVTTL). |
3 | No Function Implement | ||||
| 8 | LOS | Loss of Signal | 3 | Note 4 | ||||
| 9 | RS1 | TX Rate Select (LVTTL). |
1 | No Function Implement | ||||
| 10 | VeeR | Receiver Ground | 1 | Note 5 | ||||
| 11 | VeeR | Receiver Ground | 1 | Note 5 | ||||
| 12 | RD- | Inv. Received Data Out | 3 | Note 6 | ||||
| 13 | RD+ | Received Data Out | 3 | Note 6 | ||||
| 14 | VeeR | Receiver Ground | 1 | Note 5 | ||||
| 15 | VccR | Receiver Power | 2 | 3.3V ± 5%, Note 7 | ||||
| 16 | VccT | Transmitter Power | 2 | 3.3V ± 5%, Note 7 | ||||
| 17 | VeeT | Transmitter Ground | 1 | Note 5 | ||||
| 18 | TD+ | Transmit Data In | 3 | Note 8 | ||||
| 19 | TD- | Inv. Transmit Data In | 3 | Note 8 | ||||
| 20 | VeeT | Transmitter Ground | 1 | Note 5 | ||||
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined High
(2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled
3) Module Absent, connected to VeeT or VeeR in the module.
4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
5) The module signal ground contacts, VeeR and VeeT, should be isolated from the module case.
6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board.
7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 300mA. Recommended host board power supply filtering is shown below. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internally connected within the SFP+ transceiver module.
8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board.
